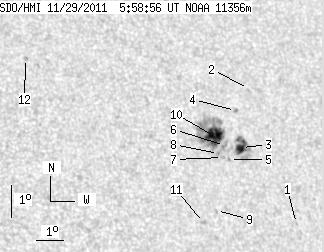

SDO HMI 2011-11-29 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.60 | 93.83 | 16.70 | 58.76 | 18.07 | 223.69 | 34.41 | 298.72 | 0.6149 | -628.0 | -352.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.60 | 15.51 | 226.11 | 36.83 | 293.56 | 0.6324 | 578.0 | 482.2 | |
| 0.00 | 0.34 | 0.00 | 0.22 | 19.69 | 225.24 | 35.96 | 300.18 | 0.6419 | 490.0 | 602.8 | |
| 8.21 | 16.68 | 5.19 | 10.55 | 17.86 | 224.52 | 35.24 | 297.92 | 0.6239 | -847.0 | -535.4 | |
| 0.00 | 1.80 | 0.00 | 1.14 | 19.01 | 224.56 | 35.28 | 299.60 | 0.6304 | -579.0 | -398.1 | |
| 0.00 | 1.28 | 0.00 | 0.80 | 17.50 | 223.98 | 34.70 | 297.68 | 0.6155 | -706.0 | -619.1 | |
| 0.00 | 4.79 | 0.00 | 3.01 | 17.93 | 223.89 | 34.61 | 298.39 | 0.6166 | -833.0 | -689.4 | |
| 0.00 | 1.54 | 0.00 | 0.96 | 17.56 | 223.73 | 34.45 | 297.93 | 0.6127 | -590.0 | -579.7 | |
| 0.00 | 1.37 | 0.00 | 0.85 | 17.69 | 223.61 | 34.33 | 298.19 | 0.6119 | -950.0 | -819.0 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 15.94 | 223.18 | 33.90 | 295.74 | 0.5976 | 373.0 | 314.0 | |
| 18.39 | 60.21 | 11.51 | 37.67 | 18.22 | 223.58 | 34.30 | 299.00 | 0.6143 | -1004.5 | -365.8 | |
| 0.00 | 2.14 | 0.00 | 1.31 | 15.58 | 222.63 | 33.35 | 295.48 | 0.5888 | 717.0 | 529.6 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 20.71 | 217.17 | 27.89 | 307.60 | 0.5544 | 690.0 | 564.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
