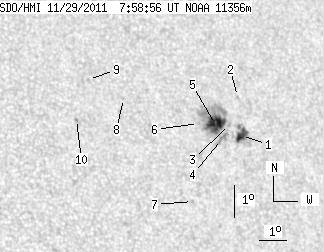

SDO HMI 2011-11-29 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.85 | 81.58 | 19.01 | 51.81 | 18.14 | 223.63 | 35.44 | 298.25 | 0.6277 | -591.9 | -279.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.98 | 11.80 | 5.76 | 7.57 | 17.88 | 224.51 | 36.32 | 297.36 | 0.6370 | -780.9 | -586.7 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 19.09 | 224.65 | 36.46 | 299.04 | 0.6447 | -426.0 | -284.3 | |
| 0.00 | 1.88 | 0.00 | 1.20 | 18.22 | 224.13 | 35.94 | 298.08 | 0.6341 | -256.0 | -224.2 | |
| 0.00 | 6.76 | 0.00 | 4.29 | 17.76 | 223.71 | 35.52 | 297.63 | 0.6268 | -897.0 | -733.2 | |
| 20.87 | 56.18 | 13.25 | 35.68 | 18.23 | 223.59 | 35.40 | 298.39 | 0.6277 | -922.3 | -234.8 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 18.27 | 222.95 | 34.76 | 298.82 | 0.6202 | -366.0 | -325.7 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 15.87 | 222.22 | 34.03 | 295.57 | 0.5990 | 604.0 | 464.8 | |
| 0.00 | 0.68 | 0.00 | 0.42 | 19.07 | 220.32 | 32.13 | 301.73 | 0.5932 | 599.0 | 505.0 | |
| 0.00 | 0.51 | 0.00 | 0.31 | 19.67 | 219.16 | 30.97 | 303.49 | 0.5832 | 713.0 | 542.3 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 18.43 | 218.47 | 30.28 | 302.08 | 0.5667 | 759.0 | 613.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
