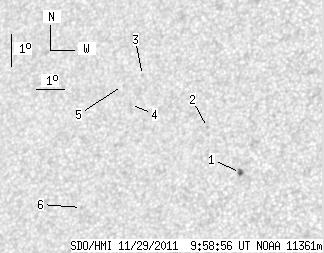

SDO HMI 2011-11-29 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.48 | 8.29 | 1.41 | 4.86 | 16.80 | 158.62 | -28.48 | 59.12 | 0.5337 | -618.7 | -472.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.48 | 3.08 | 1.41 | 1.75 | 15.91 | 161.21 | -25.89 | 58.54 | 0.4943 | -814.7 | -724.4 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 17.28 | 159.87 | -27.23 | 57.33 | 0.5212 | -673.0 | -516.6 | |
| 0.00 | 1.20 | 0.00 | 0.72 | 18.86 | 157.28 | -29.82 | 56.87 | 0.5641 | -705.0 | -554.3 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 17.96 | 157.02 | -30.08 | 58.51 | 0.5613 | -209.0 | -134.5 | |
| 0.00 | 0.68 | 0.00 | 0.41 | 18.55 | 156.62 | -30.48 | 57.88 | 0.5700 | -495.0 | -480.6 | |
| 0.00 | 1.37 | 0.00 | 0.82 | 14.79 | 155.82 | -31.28 | 64.55 | 0.5582 | -735.0 | -539.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
