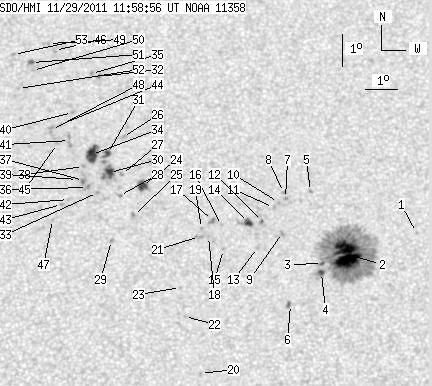

SDO HMI 2011-11-29 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.73 | 366.80 | 41.60 | 193.70 | 20.02 | 192.37 | 6.37 | 341.90 | 0.3470 | -134.2 | -220.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.59 | 19.88 | 196.96 | 10.96 | 330.95 | 0.3698 | -714.0 | -548.6 | |
| 40.26 | 240.88 | 21.22 | 126.97 | 19.20 | 194.69 | 8.69 | 335.32 | 0.3432 | -1354.3 | -442.6 | |
| 1.11 | -2.00 | 0.58 | -2.00 | 18.92 | 193.92 | 7.92 | 336.93 | 0.3339 | -959.2 | 999999 | |
| 2.48 | -2.00 | 1.30 | -2.00 | 18.64 | 193.88 | 7.87 | 336.69 | 0.3294 | -1095.4 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 21.17 | 193.65 | 7.65 | 340.11 | 0.3663 | -772.0 | -578.4 | |
| 0.60 | 2.31 | 0.31 | 1.20 | 17.65 | 192.86 | 6.86 | 338.22 | 0.3079 | -871.0 | -863.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 20.95 | 192.84 | 6.84 | 341.86 | 0.3587 | -965.0 | -825.5 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 21.14 | 192.79 | 6.78 | 342.17 | 0.3613 | -888.0 | -653.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 19.89 | 192.70 | 6.70 | 341.19 | 0.3415 | -816.0 | -828.5 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 20.83 | 192.61 | 6.61 | 342.31 | 0.3556 | -867.0 | -702.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 20.67 | 192.45 | 6.44 | 342.58 | 0.3523 | -855.0 | -679.5 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 20.23 | 192.08 | 6.08 | 343.13 | 0.3437 | -986.0 | -919.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 19.42 | 191.89 | 5.89 | 342.88 | 0.3301 | -773.0 | -690.1 | |
| 3.93 | 7.52 | 2.07 | 3.96 | 20.20 | 191.64 | 5.63 | 344.27 | 0.3412 | -985.2 | -729.3 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 19.36 | 190.82 | 4.82 | 345.80 | 0.3243 | -646.0 | -557.5 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 20.11 | 190.78 | 4.77 | 346.49 | 0.3362 | -598.0 | -516.4 | |
| 0.00 | 2.74 | 0.00 | 1.44 | 20.27 | 190.50 | 4.49 | 347.37 | 0.3376 | -834.0 | -737.5 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 19.77 | 190.36 | 4.35 | 347.40 | 0.3291 | -881.0 | -767.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 20.02 | 190.15 | 4.14 | 348.17 | 0.3324 | -546.0 | -476.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 15.54 | 190.01 | 4.01 | 344.87 | 0.2591 | -791.0 | -664.5 | |
| 0.00 | 2.74 | 0.00 | 1.43 | 19.77 | 190.08 | 4.07 | 348.20 | 0.3281 | -762.0 | -591.2 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 17.29 | 189.55 | 3.55 | 348.02 | 0.2859 | -764.0 | -569.1 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 18.18 | 189.45 | 3.44 | 349.00 | 0.3002 | 712.0 | 454.2 | |
| 7.01 | 8.80 | 3.70 | 4.65 | 21.37 | 188.31 | 2.30 | 353.83 | 0.3496 | 1044.0 | 661.5 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 20.43 | 188.01 | 2.00 | 354.34 | 0.3337 | -826.0 | -575.5 | |
| 0.00 | 2.82 | 0.00 | 1.51 | 22.89 | 187.69 | 1.69 | 355.82 | 0.3735 | 817.0 | 609.2 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 21.72 | 187.64 | 1.64 | 355.68 | 0.3543 | 816.0 | 586.7 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 21.05 | 187.57 | 1.57 | 355.72 | 0.3434 | 856.0 | 626.7 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 19.64 | 187.31 | 1.30 | 356.14 | 0.3198 | 918.0 | 676.5 | |
| 5.81 | 17.35 | 3.08 | 9.19 | 21.78 | 187.26 | 1.26 | 356.69 | 0.3549 | 1119.1 | 844.0 | |
| 2.65 | 4.70 | 1.41 | 2.50 | 22.38 | 187.20 | 1.20 | 356.95 | 0.3647 | 858.4 | 903.6 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 24.85 | 186.97 | 0.96 | 357.83 | 0.4044 | 908.0 | 770.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 21.15 | 186.88 | 0.87 | 357.63 | 0.3443 | 893.0 | 729.7 | |
| 12.57 | 15.47 | 6.68 | 8.22 | 22.35 | 186.69 | 0.69 | 358.24 | 0.3638 | 1000.0 | 723.0 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 24.94 | 186.71 | 0.70 | 358.43 | 0.4058 | 950.0 | 766.1 | |
| 0.00 | 3.16 | 0.00 | 1.67 | 21.31 | 186.56 | 0.56 | 358.50 | 0.3467 | 1041.0 | 863.7 | |
| 0.00 | 2.31 | 0.00 | 1.22 | 21.53 | 186.43 | 0.43 | 358.86 | 0.3503 | 1117.0 | 1006.9 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 21.97 | 186.44 | 0.43 | 358.88 | 0.3575 | 874.0 | 761.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 21.56 | 186.24 | 0.24 | 359.36 | 0.3507 | 832.0 | 668.5 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 23.69 | 186.09 | 0.08 | 359.81 | 0.3854 | 710.0 | 576.8 | |
| 0.00 | 3.85 | 0.00 | 2.05 | 22.79 | 185.99 | -0.02 | 0.04 | 0.3709 | 700.0 | 723.0 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 20.93 | 185.96 | -0.05 | 0.13 | 0.3403 | 874.0 | 697.2 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 20.77 | 185.74 | -0.27 | 0.75 | 0.3378 | 884.0 | 691.3 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 23.30 | 185.70 | -0.31 | 0.74 | 0.3792 | 759.0 | 624.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 22.70 | 185.61 | -0.40 | 1.00 | 0.3694 | 818.0 | 570.5 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 25.69 | 185.50 | -0.51 | 1.10 | 0.4176 | 708.0 | 608.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 20.30 | 185.45 | -0.55 | 1.57 | 0.3301 | 856.0 | 657.5 | |
| 0.00 | 3.16 | 0.00 | 1.69 | 23.14 | 185.41 | -0.59 | 1.46 | 0.3767 | 779.0 | 721.1 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 25.92 | 185.30 | -0.71 | 1.51 | 0.4213 | 687.0 | 551.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 25.04 | 184.78 | -1.22 | 2.73 | 0.4076 | 731.0 | 601.5 | |
| 2.31 | 2.74 | 1.25 | 1.49 | 25.30 | 184.75 | -1.26 | 2.78 | 0.4118 | 808.6 | 787.4 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 24.46 | 184.33 | -1.67 | 3.84 | 0.3988 | 570.0 | 391.2 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 25.56 | 184.15 | -1.85 | 4.03 | 0.4165 | 675.0 | 515.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
