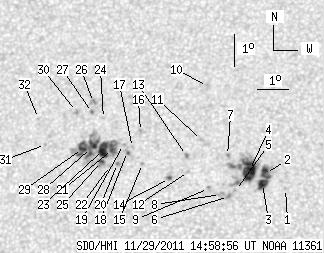

SDO HMI 2011-11-29 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.49 | 189.27 | 39.37 | 101.42 | 18.83 | 170.63 | -13.73 | 36.06 | 0.3811 | 45.9 | -26.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.40 | 17.91 | 174.42 | -9.94 | 29.60 | 0.3341 | -872.0 | -625.0 | |
| 6.41 | 21.45 | 3.38 | 11.31 | 18.37 | 173.76 | -10.60 | 30.45 | 0.3460 | -1066.5 | -733.2 | |
| 7.09 | -2.00 | 3.74 | -2.00 | 18.06 | 173.68 | -10.68 | 31.12 | 0.3424 | -1194.6 | 999999 | |
| 19.40 | 51.78 | 10.26 | 27.40 | 18.46 | 173.24 | -11.12 | 31.49 | 0.3516 | -1093.9 | -556.1 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 17.84 | 172.84 | -11.52 | 33.41 | 0.3468 | -869.0 | -724.4 | |
| 0.00 | 2.65 | 0.00 | 1.40 | 17.66 | 172.63 | -11.73 | 34.19 | 0.3462 | -991.0 | -779.7 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 18.93 | 172.51 | -11.85 | 32.38 | 0.3643 | -746.0 | -607.8 | |
| 0.00 | 2.99 | 0.00 | 1.58 | 17.72 | 172.37 | -11.99 | 34.66 | 0.3494 | -827.0 | -717.5 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 17.90 | 171.98 | -12.38 | 35.20 | 0.3555 | -786.0 | -620.8 | |
| 0.00 | 2.65 | 0.00 | 1.43 | 21.08 | 171.70 | -12.66 | 30.89 | 0.4001 | -715.0 | -474.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 19.39 | 171.64 | -12.72 | 33.47 | 0.3781 | 767.0 | 586.7 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 18.43 | 171.30 | -13.06 | 35.72 | 0.3687 | 735.0 | 468.1 | |
| 0.00 | 2.05 | 0.00 | 1.10 | 18.92 | 171.20 | -13.16 | 35.11 | 0.3761 | -829.0 | -665.6 | |
| 1.11 | 3.08 | 0.59 | 1.64 | 18.21 | 170.71 | -13.65 | 37.28 | 0.3716 | -903.2 | -658.1 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 18.67 | 169.80 | -14.55 | 38.24 | 0.3864 | 835.0 | 638.6 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 19.66 | 169.65 | -14.71 | 36.88 | 0.4001 | -774.0 | -506.8 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 19.16 | 169.44 | -14.92 | 38.08 | 0.3961 | 624.0 | 618.9 | |
| 0.00 | 2.05 | 0.00 | 1.11 | 19.04 | 169.29 | -15.07 | 38.56 | 0.3961 | 1036.0 | 925.6 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 19.26 | 169.14 | -15.22 | 38.47 | 0.4002 | 917.0 | 803.7 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 18.66 | 169.00 | -15.36 | 39.71 | 0.3945 | 921.0 | 829.6 | |
| 4.96 | 76.31 | 2.68 | 41.35 | 19.10 | 168.79 | -15.56 | 39.34 | 0.4017 | 1086.6 | 517.5 | |
| 0.00 | 1.79 | 0.00 | 0.97 | 18.60 | 168.78 | -15.58 | 40.21 | 0.3960 | 267.0 | 230.9 | |
| 11.19 | -21.00 | 6.06 | -21.00 | 19.10 | 168.50 | -15.86 | 39.85 | 0.4047 | 1075.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 20.06 | 168.40 | -15.96 | 38.43 | 0.4172 | 738.0 | 616.6 | |
| 2.05 | -21.00 | 1.11 | -21.00 | 18.72 | 168.47 | -15.89 | 40.53 | 0.4006 | 1056.7 | 999999 | |
| 0.00 | 3.33 | 0.00 | 1.82 | 20.56 | 168.02 | -16.34 | 38.29 | 0.4269 | 880.0 | 719.1 | |
| 1.28 | 1.37 | 0.70 | 0.75 | 20.25 | 168.02 | -16.34 | 38.78 | 0.4232 | 792.6 | 797.0 | |
| 10.77 | -21.00 | 5.84 | -21.00 | 19.16 | 168.10 | -16.25 | 40.42 | 0.4095 | 882.3 | 999999 | |
| 9.23 | -21.00 | 5.01 | -21.00 | 19.12 | 167.81 | -16.54 | 40.96 | 0.4122 | 787.5 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.98 | 20.28 | 167.49 | -16.87 | 39.60 | 0.4288 | 773.0 | 682.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 19.24 | 166.59 | -17.77 | 42.72 | 0.4265 | 711.0 | 544.0 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 20.05 | 166.26 | -18.09 | 41.88 | 0.4389 | 599.0 | 455.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
