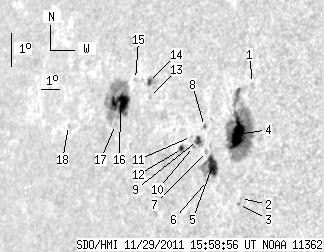

SDO HMI 2011-11-29 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.88 | 236.59 | 48.08 | 202.17 | 7.69 | 129.52 | -54.29 | 81.34 | 0.8151 | -141.6 | -146.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.95 | 9.00 | 132.53 | -51.27 | 79.38 | 0.7862 | 658.0 | 536.5 | |
| 0.00 | 0.68 | 0.00 | 0.54 | 5.58 | 132.51 | -51.30 | 83.75 | 0.7837 | -544.0 | -439.4 | |
| 0.00 | 1.11 | 0.00 | 0.88 | 5.40 | 132.44 | -51.37 | 83.98 | 0.7844 | -636.0 | -552.3 | |
| 17.86 | 113.21 | 14.34 | 90.76 | 7.48 | 132.09 | -51.72 | 81.37 | 0.7895 | -954.8 | -393.8 | |
| 13.07 | 23.58 | 10.74 | 19.43 | 6.54 | 131.02 | -52.79 | 82.65 | 0.8001 | -700.1 | 3.5 | |
| 0.00 | 1.45 | 0.00 | 1.20 | 6.09 | 130.83 | -52.97 | 83.22 | 0.8017 | 152.0 | 92.6 | |
| 0.00 | 1.37 | 0.00 | 1.13 | 6.95 | 130.65 | -53.15 | 82.16 | 0.8041 | -527.0 | -389.0 | |
| 0.00 | 1.37 | 0.00 | 1.14 | 7.69 | 130.42 | -53.38 | 81.26 | 0.8070 | -338.0 | -223.2 | |
| 3.59 | 6.49 | 3.01 | 5.44 | 7.27 | 130.15 | -53.66 | 81.81 | 0.8095 | -471.4 | -410.1 | |
| 0.00 | 1.11 | 0.00 | 0.94 | 7.09 | 129.97 | -53.83 | 82.05 | 0.8112 | -309.0 | -231.6 | |
| 0.00 | 0.77 | 0.00 | 0.65 | 7.38 | 129.82 | -53.99 | 81.69 | 0.8129 | -244.0 | -165.0 | |
| 0.34 | 2.99 | 0.29 | 2.56 | 7.02 | 129.42 | -54.38 | 82.17 | 0.8167 | 43.2 | -358.6 | |
| 0.00 | 1.28 | 0.00 | 1.15 | 8.51 | 127.38 | -56.43 | 80.54 | 0.8375 | -318.0 | -147.4 | |
| 1.71 | 4.87 | 1.55 | 4.40 | 8.95 | 127.22 | -56.59 | 80.02 | 0.8394 | 687.3 | 452.8 | |
| 0.00 | 1.54 | 0.00 | 1.42 | 9.03 | 126.48 | -57.32 | 80.00 | 0.8463 | 434.0 | 422.9 | |
| 19.31 | 71.35 | 18.15 | 67.41 | 8.33 | 125.81 | -58.00 | 80.88 | 0.8519 | 746.8 | 159.3 | |
| 0.00 | 1.28 | 0.00 | 1.21 | 7.67 | 125.67 | -58.13 | 81.66 | 0.8528 | 540.0 | 472.6 | |
| 0.00 | 0.94 | 0.00 | 0.96 | 7.60 | 122.90 | -60.90 | 81.93 | 0.8768 | 438.0 | 364.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
