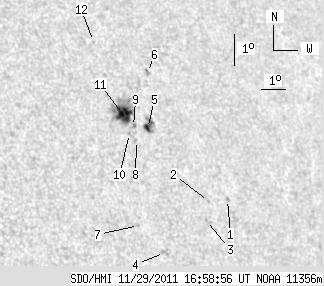

SDO HMI 2011-11-29 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.63 | 63.91 | 12.67 | 43.59 | 17.89 | 224.01 | 40.76 | 295.27 | 0.6895 | -519.1 | -288.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.21 | 15.63 | 227.21 | 43.96 | 290.95 | 0.7182 | 624.0 | 525.2 | |
| 0.00 | 0.60 | 0.00 | 0.42 | 15.58 | 226.39 | 43.14 | 291.16 | 0.7086 | 641.0 | 565.4 | |
| 0.00 | 1.11 | 0.00 | 0.77 | 15.00 | 226.16 | 42.91 | 290.44 | 0.7041 | 693.0 | 606.9 | |
| 0.00 | 2.56 | 0.00 | 1.72 | 14.05 | 224.21 | 40.95 | 289.77 | 0.6780 | 670.0 | 518.2 | |
| 3.08 | 10.85 | 2.11 | 7.46 | 17.85 | 224.46 | 41.21 | 295.01 | 0.6944 | -836.0 | -496.4 | |
| 0.00 | 2.73 | 0.00 | 1.91 | 19.59 | 224.99 | 41.73 | 297.15 | 0.7071 | -768.0 | -527.0 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 14.89 | 223.35 | 40.09 | 291.29 | 0.6703 | 669.0 | 604.8 | |
| 0.00 | 1.03 | 0.00 | 0.70 | 17.49 | 223.91 | 40.65 | 294.75 | 0.6866 | -725.0 | -666.9 | |
| 0.00 | 2.31 | 0.00 | 1.57 | 17.92 | 223.91 | 40.65 | 295.35 | 0.6882 | -767.0 | -678.5 | |
| 0.00 | 0.94 | 0.00 | 0.64 | 17.71 | 223.68 | 40.43 | 295.15 | 0.6848 | -769.0 | -650.6 | |
| 15.55 | 38.19 | 10.56 | 25.93 | 18.30 | 223.60 | 40.35 | 296.00 | 0.6863 | -910.8 | -371.7 | |
| 0.00 | 0.85 | 0.00 | 0.58 | 20.58 | 223.05 | 39.80 | 299.39 | 0.6901 | -654.0 | -450.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
