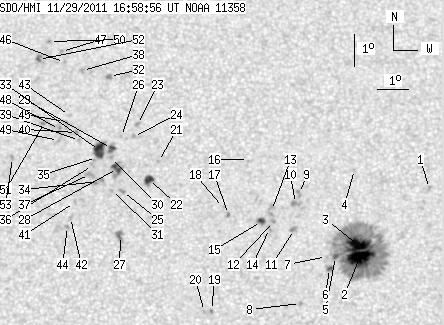

SDO HMI 2011-11-29 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.84 | 365.51 | 37.66 | 194.45 | 20.19 | 192.22 | 8.97 | 335.85 | 0.3655 | -47.0 | -204.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.11 | 21.23 | 197.17 | 13.91 | 326.95 | 0.4127 | -787.0 | -604.6 | |
| 21.19 | 224.37 | 11.26 | 119.34 | 19.08 | 194.73 | 11.48 | 328.67 | 0.3631 | -1542.7 | -475.0 | |
| 14.87 | -2.00 | 7.91 | -2.00 | 19.45 | 194.73 | 11.47 | 329.24 | 0.3682 | -1231.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 21.84 | 194.78 | 11.52 | 332.37 | 0.4016 | -814.0 | -534.4 | |
| 1.97 | -2.00 | 1.04 | -2.00 | 19.11 | 193.97 | 10.71 | 330.41 | 0.3573 | -942.1 | 999999 | |
| 2.31 | 4.78 | 1.22 | 2.53 | 18.74 | 193.75 | 10.50 | 330.35 | 0.3503 | -1013.7 | -728.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 19.11 | 193.68 | 10.43 | 331.07 | 0.3550 | -848.0 | -688.2 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 17.66 | 192.77 | 9.52 | 331.07 | 0.3272 | -1060.0 | -874.6 | |
| 0.00 | 3.33 | 0.00 | 1.78 | 21.09 | 192.95 | 9.69 | 335.32 | 0.3778 | -679.0 | -713.8 | |
| 0.00 | 4.70 | 0.00 | 2.51 | 20.77 | 192.80 | 9.54 | 335.28 | 0.3723 | -940.0 | -806.9 | |
| 0.00 | 3.67 | 0.00 | 1.95 | 19.96 | 192.72 | 9.46 | 334.46 | 0.3599 | -1017.0 | -860.2 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 20.21 | 192.06 | 8.81 | 336.31 | 0.3591 | -1031.0 | -814.7 | |
| 0.00 | 4.96 | 0.00 | 2.63 | 20.55 | 192.02 | 8.76 | 336.82 | 0.3639 | -306.0 | -662.8 | |
| 0.00 | 2.48 | 0.00 | 1.31 | 19.99 | 191.92 | 8.67 | 336.38 | 0.3549 | -904.0 | -743.5 | |
| 3.08 | 4.19 | 1.63 | 2.22 | 20.21 | 191.68 | 8.42 | 337.22 | 0.3566 | -1048.3 | -825.7 | |
| 0.00 | 0.51 | 0.00 | 0.27 | 22.16 | 191.37 | 8.12 | 340.01 | 0.3841 | -462.0 | -552.7 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 20.43 | 190.64 | 7.38 | 340.00 | 0.3538 | -911.0 | -722.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 20.65 | 190.49 | 7.24 | 340.60 | 0.3563 | -591.0 | -456.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 17.45 | 189.98 | 6.72 | 338.36 | 0.3042 | -891.0 | -769.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 17.42 | 189.76 | 6.50 | 338.96 | 0.3024 | -873.0 | -624.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 22.11 | 188.48 | 5.22 | 346.76 | 0.3697 | 725.0 | 553.6 | |
| 5.72 | 7.43 | 3.04 | 3.94 | 21.54 | 188.14 | 4.88 | 347.22 | 0.3595 | 969.5 | 878.2 | |
| 0.00 | 2.82 | 0.00 | 1.51 | 23.28 | 187.85 | 4.59 | 348.98 | 0.3862 | 825.0 | 614.0 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 22.90 | 187.70 | 4.45 | 349.11 | 0.3797 | 973.0 | 711.0 | |
| 0.00 | 2.39 | 0.00 | 1.26 | 21.16 | 187.30 | 4.04 | 349.14 | 0.3507 | 971.0 | 835.1 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 22.90 | 187.32 | 4.06 | 350.03 | 0.3786 | 843.0 | 690.2 | |
| 0.00 | 6.49 | 0.00 | 3.40 | 19.78 | 187.20 | 3.94 | 348.57 | 0.3281 | 906.0 | 849.4 | |
| 5.21 | 10.94 | 2.77 | 5.81 | 21.89 | 187.16 | 3.90 | 349.90 | 0.3619 | 1020.9 | 762.2 | |
| 3.42 | 5.13 | 1.82 | 2.73 | 22.52 | 186.99 | 3.73 | 350.65 | 0.3716 | 919.7 | 685.3 | |
| 0.00 | 2.14 | 0.00 | 1.14 | 22.23 | 186.98 | 3.72 | 350.53 | 0.3670 | 935.0 | 809.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 21.19 | 186.95 | 3.70 | 350.07 | 0.3501 | 896.0 | 716.2 | |
| 0.00 | 2.65 | 0.00 | 1.44 | 24.83 | 186.99 | 3.73 | 351.65 | 0.4083 | 884.0 | 809.7 | |
| 12.39 | 14.18 | 6.60 | 7.56 | 22.46 | 186.60 | 3.34 | 351.58 | 0.3696 | 983.6 | 644.6 | |
| 0.00 | 2.73 | 0.00 | 1.45 | 21.48 | 186.54 | 3.29 | 351.28 | 0.3536 | 814.0 | 915.0 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 22.24 | 186.50 | 3.24 | 351.73 | 0.3658 | 714.0 | 625.0 | |
| 0.00 | 1.88 | 0.00 | 1.00 | 21.98 | 186.36 | 3.11 | 351.96 | 0.3614 | 908.0 | 748.9 | |
| 0.00 | 4.61 | 0.00 | 2.44 | 21.70 | 186.26 | 3.01 | 352.11 | 0.3566 | 1199.0 | 851.2 | |
| 0.00 | 2.73 | 0.00 | 1.48 | 25.02 | 186.11 | 2.86 | 353.65 | 0.4096 | 855.0 | 687.0 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 22.78 | 185.97 | 2.71 | 353.27 | 0.3734 | 830.0 | 650.4 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 23.03 | 185.87 | 2.62 | 353.57 | 0.3773 | 891.0 | 805.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 20.82 | 185.77 | 2.51 | 353.07 | 0.3412 | 830.0 | 694.7 | |
| 0.00 | 2.82 | 0.00 | 1.48 | 20.35 | 185.64 | 2.38 | 353.26 | 0.3332 | 891.0 | 686.0 | |
| 0.00 | 2.05 | 0.00 | 1.10 | 23.57 | 185.66 | 2.40 | 354.26 | 0.3857 | 650.0 | 468.8 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 20.06 | 185.54 | 2.28 | 353.43 | 0.3284 | 915.0 | 800.1 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 23.38 | 185.49 | 2.24 | 354.60 | 0.3823 | 678.0 | 616.1 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 25.28 | 185.53 | 2.27 | 355.00 | 0.4128 | 784.0 | 650.3 | |
| 0.00 | 1.79 | 0.00 | 0.98 | 25.64 | 185.44 | 2.18 | 355.28 | 0.4183 | 825.0 | 689.0 | |
| 0.00 | 2.73 | 0.00 | 1.46 | 23.13 | 185.33 | 2.07 | 354.93 | 0.3780 | 857.0 | 783.0 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 22.78 | 185.29 | 2.04 | 354.93 | 0.3723 | 953.0 | 744.0 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 25.96 | 185.05 | 1.79 | 356.17 | 0.4230 | 777.0 | 636.4 | |
| 0.00 | 2.31 | 0.00 | 1.23 | 23.35 | 184.85 | 1.59 | 356.14 | 0.3810 | 948.0 | 790.1 | |
| 0.68 | 2.99 | 0.37 | 1.63 | 25.38 | 184.68 | 1.42 | 356.87 | 0.4134 | 892.1 | 691.7 | |
| 0.00 | 2.05 | 0.00 | 1.09 | 22.24 | 183.81 | 0.56 | 358.57 | 0.3621 | 875.0 | 779.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
