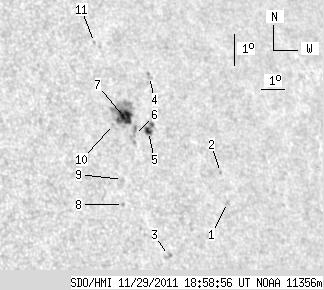

SDO HMI 2011-11-29 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.68 | 66.92 | 12.24 | 46.34 | 17.87 | 223.95 | 41.80 | 294.80 | 0.7013 | -489.3 | -258.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.36 | 15.65 | 227.23 | 45.08 | 290.61 | 0.7309 | 637.0 | 476.3 | |
| 0.00 | 1.03 | 0.00 | 0.74 | 16.57 | 227.20 | 45.05 | 291.85 | 0.7332 | 577.0 | 491.4 | |
| 0.00 | 3.25 | 0.00 | 2.22 | 14.06 | 224.33 | 42.18 | 289.38 | 0.6928 | 520.0 | 499.6 | |
| 0.00 | 2.73 | 0.00 | 1.94 | 19.57 | 225.07 | 42.92 | 296.62 | 0.7200 | -676.0 | -426.8 | |
| 3.50 | 7.01 | 2.45 | 4.90 | 17.86 | 224.49 | 42.34 | 294.57 | 0.7072 | -811.0 | -574.2 | |
| 0.00 | 7.18 | 0.00 | 4.96 | 17.75 | 223.87 | 41.72 | 294.67 | 0.6998 | -665.0 | -630.2 | |
| 14.18 | 38.96 | 9.79 | 26.91 | 18.31 | 223.61 | 41.46 | 295.54 | 0.6991 | -870.9 | -337.6 | |
| 0.00 | 1.20 | 0.00 | 0.81 | 15.64 | 222.86 | 40.71 | 292.13 | 0.6804 | 721.0 | 583.2 | |
| 0.00 | 1.97 | 0.00 | 1.33 | 16.40 | 223.01 | 40.86 | 293.15 | 0.6849 | 201.0 | 206.8 | |
| 0.00 | 0.94 | 0.00 | 0.64 | 18.10 | 223.10 | 40.95 | 295.47 | 0.6923 | -633.0 | -461.4 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 20.66 | 223.09 | 40.94 | 298.94 | 0.7030 | -562.0 | -466.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
