SDO HMI 2011-11-29 19:58:56 UT

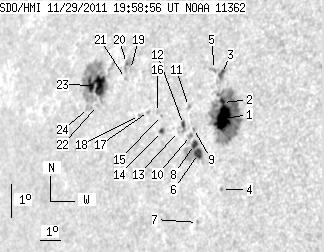

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.37 | 260.58 | 48.33 | 211.31 | 7.73 | 129.54 | -52.06 | 81.07 | 0.7923 | -187.4 | -135.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.93 | 113.63 | 16.00 | 86.70 | 7.44 | 132.24 | -49.36 | 81.15 | 0.7638 | -1023.0 | -440.4 | |
| 1.28 | -1.00 | 0.98 | -1.00 | 7.92 | 132.12 | -49.48 | 80.55 | 0.7656 | -683.0 | 999999 | |
| 2.56 | 6.58 | 1.98 | 5.07 | 8.78 | 131.92 | -49.67 | 79.45 | 0.7687 | 335.2 | -54.4 | |
| 0.00 | 1.03 | 0.00 | 0.78 | 5.33 | 132.43 | -49.17 | 83.91 | 0.7600 | -713.0 | -628.6 | |
| 0.00 | 3.67 | 0.00 | 2.85 | 8.90 | 131.58 | -50.02 | 79.35 | 0.7727 | 93.0 | 3.7 | |
| 5.38 | 24.69 | 4.19 | 19.33 | 6.39 | 131.23 | -50.36 | 82.63 | 0.7740 | -796.3 | -130.9 | |
| 0.00 | 1.28 | 0.00 | 0.99 | 4.34 | 131.42 | -50.18 | 85.27 | 0.7708 | -473.0 | -375.5 | |
| 3.50 | -6.00 | 2.74 | -6.00 | 6.65 | 131.01 | -50.59 | 82.31 | 0.7767 | -683.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.94 | 7.13 | 130.89 | -50.71 | 81.71 | 0.7784 | -593.0 | -495.1 | |
| 0.00 | 2.73 | 0.00 | 2.15 | 6.92 | 130.78 | -50.82 | 81.99 | 0.7794 | -745.0 | -517.4 | |
| 0.00 | 1.45 | 0.00 | 1.15 | 7.78 | 130.55 | -51.05 | 80.91 | 0.7826 | -509.0 | -413.2 | |
| 1.97 | 4.78 | 1.56 | 3.80 | 7.24 | 130.40 | -51.20 | 81.61 | 0.7838 | -425.5 | -464.7 | |
| 0.00 | 0.85 | 0.00 | 0.68 | 7.03 | 130.19 | -51.41 | 81.90 | 0.7858 | -256.0 | -213.2 | |
| 1.97 | 2.48 | 1.60 | 2.01 | 7.01 | 129.37 | -52.23 | 81.99 | 0.7945 | -473.6 | -212.7 | |
| 0.00 | 0.85 | 0.00 | 0.70 | 7.49 | 129.29 | -52.31 | 81.40 | 0.7957 | -461.0 | -365.9 | |
| 0.00 | 1.62 | 0.00 | 1.33 | 7.58 | 129.08 | -52.52 | 81.31 | 0.7980 | -419.0 | -304.6 | |
| 0.00 | 1.03 | 0.00 | 0.85 | 7.60 | 128.63 | -52.97 | 81.32 | 0.8027 | -433.0 | -319.7 | |
| 0.00 | 1.37 | 0.00 | 1.14 | 7.47 | 128.20 | -53.40 | 81.52 | 0.8070 | -473.0 | -359.8 | |
| 0.00 | 1.54 | 0.00 | 1.31 | 8.84 | 127.47 | -54.12 | 79.91 | 0.8155 | 596.0 | 451.3 | |
| 0.85 | 5.30 | 0.73 | 4.53 | 9.01 | 127.23 | -54.37 | 79.72 | 0.8181 | 522.1 | 469.1 | |
| 0.00 | 1.28 | 0.00 | 1.09 | 8.56 | 127.27 | -54.32 | 80.27 | 0.8172 | 35.0 | 24.9 | |
| 0.00 | 0.60 | 0.00 | 0.53 | 7.74 | 125.98 | -55.62 | 81.39 | 0.8293 | 587.0 | 505.9 | |
| 20.93 | 79.37 | 18.55 | 70.49 | 8.33 | 125.80 | -55.80 | 80.69 | 0.8314 | 765.1 | 237.1 | |
| 0.00 | 3.25 | 0.00 | 2.89 | 7.64 | 125.52 | -56.08 | 81.54 | 0.8337 | 324.0 | 339.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
