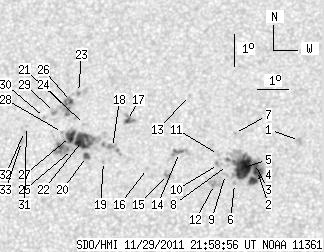

SDO HMI 2011-11-29 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.85 | 212.08 | 35.79 | 112.13 | 19.00 | 170.81 | -9.68 | 26.85 | 0.3494 | -45.2 | 102.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.08 | 0.00 | 1.61 | 19.30 | 175.27 | -5.23 | 15.38 | 0.3256 | -832.0 | -643.9 | |
| 7.35 | 74.43 | 3.84 | 38.91 | 18.36 | 173.98 | -6.51 | 19.92 | 0.3173 | -957.1 | -501.5 | |
| 0.60 | -2.00 | 0.31 | -2.00 | 18.58 | 173.88 | -6.61 | 19.96 | 0.3213 | 86.9 | 999999 | |
| 4.70 | -2.00 | 2.45 | -2.00 | 18.05 | 173.87 | -6.62 | 20.60 | 0.3132 | -1180.0 | 999999 | |
| 24.10 | -2.00 | 12.60 | -2.00 | 18.45 | 173.54 | -6.95 | 21.04 | 0.3213 | -1123.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.96 | 173.28 | -7.22 | 22.37 | 0.3153 | -875.0 | -669.7 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 19.51 | 173.21 | -7.28 | 20.71 | 0.3394 | 531.0 | 460.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 18.52 | 173.03 | -7.46 | 22.34 | 0.3254 | -766.0 | -496.8 | |
| 0.00 | 2.56 | 0.00 | 1.34 | 18.24 | 172.98 | -7.51 | 22.82 | 0.3214 | -751.0 | -621.9 | |
| 0.00 | 2.99 | 0.00 | 1.57 | 18.55 | 172.75 | -7.74 | 23.06 | 0.3276 | -571.0 | -595.8 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 18.86 | 172.73 | -7.76 | 22.71 | 0.3324 | -583.0 | -371.2 | |
| 0.00 | 6.92 | 0.00 | 3.62 | 17.93 | 172.65 | -7.84 | 24.13 | 0.3190 | -1045.0 | -786.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 20.70 | 171.72 | -8.77 | 23.03 | 0.3664 | -726.0 | -595.3 | |
| 0.00 | 7.52 | 0.00 | 3.96 | 18.92 | 171.50 | -8.99 | 25.77 | 0.3416 | -741.0 | -731.3 | |
| 0.00 | 3.50 | 0.00 | 1.84 | 18.23 | 171.16 | -9.33 | 27.58 | 0.3343 | 774.0 | 730.4 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 18.42 | 170.52 | -9.98 | 28.87 | 0.3419 | -702.0 | -501.7 | |
| 2.39 | 7.52 | 1.27 | 4.00 | 19.91 | 169.78 | -10.71 | 28.42 | 0.3687 | -797.5 | -625.2 | |
| 0.00 | 8.80 | 0.00 | 4.67 | 19.06 | 169.36 | -11.13 | 30.56 | 0.3603 | 1037.0 | 813.1 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 18.63 | 169.11 | -11.39 | 31.80 | 0.3565 | 909.0 | 670.5 | |
| 3.33 | 3.85 | 1.77 | 2.04 | 18.78 | 168.55 | -11.94 | 32.77 | 0.3634 | 1033.9 | 828.1 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 19.78 | 168.42 | -12.08 | 31.54 | 0.3780 | 472.0 | 418.4 | |
| 17.35 | 55.11 | 9.25 | 29.40 | 19.28 | 168.39 | -12.10 | 32.34 | 0.3715 | 1059.2 | 753.1 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 20.78 | 168.14 | -12.35 | 30.66 | 0.3938 | 929.0 | 871.6 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 19.99 | 168.14 | -12.35 | 31.78 | 0.3833 | 731.0 | 576.2 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 19.00 | 168.09 | -12.40 | 33.41 | 0.3704 | 935.0 | 731.2 | |
| 1.11 | 14.36 | 0.60 | 7.72 | 20.50 | 167.94 | -12.55 | 31.47 | 0.3917 | 916.2 | 820.2 | |
| 6.92 | -22.00 | 3.70 | -22.00 | 19.40 | 167.99 | -12.50 | 32.97 | 0.3766 | 899.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 19.53 | 167.73 | -12.76 | 33.33 | 0.3806 | 571.0 | 508.5 | |
| 0.00 | 2.73 | 0.00 | 1.47 | 20.15 | 167.42 | -13.07 | 33.00 | 0.3916 | 932.0 | 746.6 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 19.99 | 167.11 | -13.38 | 33.84 | 0.3923 | 745.0 | 526.3 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 19.71 | 166.55 | -13.94 | 35.35 | 0.3937 | 682.0 | 578.5 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 19.55 | 166.50 | -13.99 | 35.69 | 0.3922 | 775.0 | 680.2 | |
| 0.00 | 2.31 | 0.00 | 1.24 | 19.24 | 166.43 | -14.06 | 36.32 | 0.3889 | 938.0 | 685.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
