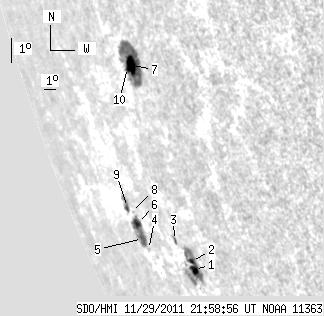

SDO HMI 2011-11-29 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.61 | 125.10 | 60.73 | 207.03 | -20.23 | 109.55 | -70.94 | 111.62 | 0.9546 | -30.3 | 110.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.53 | 31.96 | 7.26 | 51.53 | -23.37 | 110.65 | -69.84 | 115.04 | 0.9525 | 478.8 | 194.1 | |
| 2.05 | -1.00 | 3.27 | -1.00 | -23.11 | 110.67 | -69.82 | 114.78 | 0.9522 | 641.5 | 999999 | |
| 0.00 | 3.25 | 0.00 | 5.37 | -22.45 | 109.82 | -70.67 | 113.96 | 0.9557 | 75.0 | 126.3 | |
| 0.00 | 0.94 | 0.00 | 1.87 | -22.80 | 106.56 | -73.93 | 113.89 | 0.9699 | -504.0 | -445.7 | |
| 8.29 | 22.47 | 16.66 | 45.35 | -22.45 | 106.37 | -74.12 | 113.51 | 0.9705 | -516.6 | -229.0 | |
| 5.21 | -5.00 | 10.41 | -5.00 | -21.97 | 106.48 | -74.01 | 113.03 | 0.9698 | -436.1 | 999999 | |
| 9.66 | 58.45 | 14.28 | 86.42 | -16.89 | 111.33 | -69.16 | 108.37 | 0.9438 | 617.9 | 241.7 | |
| 0.00 | 0.60 | 0.00 | 1.20 | -21.59 | 106.32 | -74.18 | 112.62 | 0.9703 | -467.0 | -468.7 | |
| 2.73 | 7.43 | 5.62 | 15.29 | -21.47 | 106.01 | -74.48 | 112.46 | 0.9714 | -340.0 | -373.7 | |
| 2.14 | -7.00 | 3.23 | -7.00 | -16.96 | 110.92 | -69.57 | 108.39 | 0.9460 | -116.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
