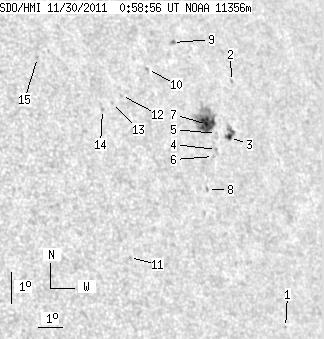

SDO HMI 2011-11-30 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.67 | 59.84 | 12.19 | 43.53 | 18.28 | 223.49 | 44.65 | 294.30 | 0.7345 | -313.0 | -231.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.56 | 12.08 | 225.39 | 46.56 | 285.48 | 0.7391 | 469.0 | 460.8 | |
| 0.00 | 1.11 | 0.00 | 0.84 | 19.63 | 225.24 | 46.41 | 295.39 | 0.7574 | -397.0 | -392.3 | |
| 2.31 | 8.72 | 1.71 | 6.46 | 17.89 | 224.54 | 45.70 | 293.41 | 0.7445 | -691.5 | -460.1 | |
| 0.00 | 1.03 | 0.00 | 0.75 | 17.53 | 223.84 | 45.00 | 293.17 | 0.7358 | -606.0 | -512.7 | |
| 0.00 | 0.85 | 0.00 | 0.63 | 18.03 | 224.00 | 45.16 | 293.76 | 0.7391 | -548.0 | -486.6 | |
| 0.00 | 0.43 | 0.00 | 0.31 | 17.32 | 223.64 | 44.81 | 292.96 | 0.7330 | -692.0 | -607.8 | |
| 14.36 | 37.61 | 10.48 | 27.44 | 18.31 | 223.70 | 44.86 | 294.24 | 0.7368 | -798.6 | -328.2 | |
| 0.00 | 1.54 | 0.00 | 1.10 | 16.31 | 223.08 | 44.24 | 291.81 | 0.7236 | 412.0 | 323.3 | |
| 0.00 | 2.05 | 0.00 | 1.50 | 20.88 | 223.06 | 44.22 | 297.82 | 0.7391 | -683.0 | -550.1 | |
| 0.00 | 1.37 | 0.00 | 0.97 | 20.05 | 221.67 | 42.83 | 297.32 | 0.7212 | 569.0 | 428.3 | |
| 0.00 | 0.51 | 0.00 | 0.34 | 14.27 | 219.32 | 40.48 | 290.30 | 0.6732 | 626.0 | 603.8 | |
| 0.00 | 1.11 | 0.00 | 0.77 | 19.25 | 220.30 | 41.47 | 296.85 | 0.7030 | 573.0 | 482.3 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 19.04 | 219.86 | 41.02 | 296.76 | 0.6972 | 561.0 | 439.7 | |
| 0.00 | 0.94 | 0.00 | 0.64 | 18.82 | 219.39 | 40.55 | 296.68 | 0.6910 | 717.0 | 510.4 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 20.47 | 217.22 | 38.38 | 300.01 | 0.6741 | 666.0 | 526.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
