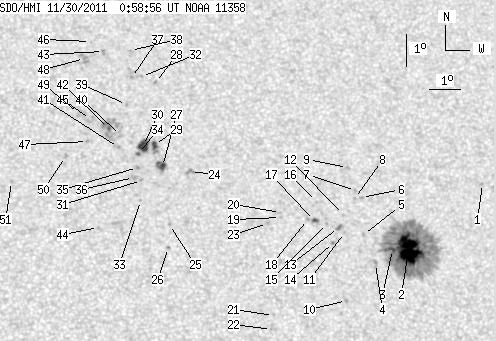

SDO HMI 2011-11-30 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.92 | 351.02 | 30.77 | 189.90 | 20.30 | 192.27 | 13.43 | 326.74 | 0.4029 | -200.8 | -185.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.43 | 21.39 | 197.40 | 18.56 | 319.59 | 0.4592 | -653.0 | -505.3 | |
| 35.64 | 233.17 | 19.33 | 126.46 | 19.33 | 194.72 | 15.88 | 320.57 | 0.4084 | -1342.3 | -450.3 | |
| 1.88 | -2.00 | 1.02 | -2.00 | 19.34 | 194.20 | 15.36 | 321.48 | 0.4032 | -1007.0 | 999999 | |
| 0.00 | 3.76 | 0.00 | 2.02 | 18.90 | 193.61 | 14.77 | 321.83 | 0.3920 | -914.0 | -781.9 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 19.81 | 193.30 | 14.46 | 323.86 | 0.4002 | -882.0 | -688.6 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 20.97 | 193.35 | 14.51 | 325.54 | 0.4153 | -825.0 | -696.3 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 21.19 | 193.18 | 14.34 | 326.17 | 0.4165 | -727.0 | -629.8 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 20.94 | 193.12 | 14.28 | 325.91 | 0.4128 | -900.0 | -744.8 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 21.92 | 192.99 | 14.15 | 327.53 | 0.4242 | -719.0 | -600.8 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 17.76 | 192.58 | 13.74 | 321.83 | 0.3676 | -974.0 | -756.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 19.87 | 192.69 | 13.85 | 325.10 | 0.3953 | -797.0 | -592.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 20.44 | 192.71 | 13.87 | 325.92 | 0.4027 | -852.0 | -687.0 | |
| 0.00 | 2.39 | 0.00 | 1.29 | 20.03 | 192.51 | 13.67 | 325.69 | 0.3957 | -1043.0 | -727.9 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 19.56 | 192.31 | 13.47 | 325.36 | 0.3878 | 792.0 | 542.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 20.16 | 192.13 | 13.30 | 326.60 | 0.3940 | -822.0 | -653.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 20.85 | 191.87 | 13.03 | 328.12 | 0.4008 | -669.0 | -555.7 | |
| 0.85 | 2.56 | 0.46 | 1.38 | 20.25 | 191.75 | 12.92 | 327.49 | 0.3919 | -1008.1 | -847.1 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 20.28 | 191.53 | 12.69 | 327.98 | 0.3904 | -788.0 | -688.4 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 20.35 | 190.67 | 11.83 | 329.83 | 0.3841 | -803.0 | -633.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 20.51 | 190.68 | 11.84 | 330.02 | 0.3863 | -895.0 | -641.8 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.31 | 190.23 | 11.39 | 326.04 | 0.3391 | -541.0 | -465.5 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 16.88 | 190.14 | 11.30 | 325.49 | 0.3325 | -761.0 | -565.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 20.16 | 190.23 | 11.40 | 330.47 | 0.3780 | -741.0 | -615.5 | |
| 0.00 | 3.42 | 0.00 | 1.83 | 21.81 | 187.87 | 9.03 | 337.64 | 0.3848 | 940.0 | 848.9 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 20.14 | 187.10 | 8.26 | 337.58 | 0.3553 | 761.0 | 553.3 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 19.42 | 187.03 | 8.19 | 336.90 | 0.3441 | 838.0 | 709.8 | |
| 3.42 | 6.58 | 1.83 | 3.52 | 21.97 | 186.98 | 8.14 | 339.80 | 0.3819 | 975.3 | 958.4 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 24.65 | 186.91 | 8.08 | 342.31 | 0.4219 | 847.0 | 660.4 | |
| 3.08 | 5.56 | 1.65 | 2.99 | 22.67 | 186.76 | 7.92 | 340.95 | 0.3913 | 760.8 | 884.0 | |
| 8.89 | 14.79 | 4.78 | 7.94 | 22.64 | 186.40 | 7.56 | 341.72 | 0.3890 | 968.0 | 691.3 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 21.53 | 186.28 | 7.44 | 340.99 | 0.3715 | 889.0 | 807.1 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 24.85 | 186.47 | 7.63 | 343.37 | 0.4228 | 669.0 | 584.1 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 20.90 | 186.21 | 7.38 | 340.53 | 0.3615 | 834.0 | 735.9 | |
| 1.62 | -30.00 | 0.87 | -30.00 | 22.38 | 186.23 | 7.39 | 341.89 | 0.3842 | 896.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 21.94 | 186.17 | 7.33 | 341.62 | 0.3772 | 1093.0 | 888.6 | |
| 0.00 | 2.39 | 0.00 | 1.28 | 21.62 | 186.03 | 7.19 | 341.67 | 0.3716 | 774.0 | 695.9 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 24.82 | 186.14 | 7.30 | 344.03 | 0.4208 | 811.0 | 644.7 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 25.69 | 186.16 | 7.32 | 344.60 | 0.4341 | 673.0 | 566.7 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 23.95 | 185.92 | 7.09 | 343.83 | 0.4067 | 801.0 | 607.5 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 22.96 | 185.68 | 6.84 | 343.62 | 0.3904 | 719.0 | 554.9 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 22.57 | 185.59 | 6.75 | 343.50 | 0.3841 | 918.0 | 813.8 | |
| 1.54 | 20.68 | 0.83 | 11.13 | 23.18 | 185.30 | 6.46 | 344.64 | 0.3922 | 1019.6 | 754.6 | |
| 0.00 | 2.22 | 0.00 | 1.22 | 25.66 | 185.26 | 6.43 | 346.38 | 0.4301 | 745.0 | 660.2 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 20.05 | 184.84 | 6.00 | 343.20 | 0.3414 | 840.0 | 703.3 | |
| 0.00 | 3.68 | 0.00 | 1.98 | 23.47 | 184.73 | 5.89 | 346.12 | 0.3943 | 542.0 | 660.3 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 25.99 | 184.85 | 6.01 | 347.41 | 0.4337 | 566.0 | 547.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 22.77 | 184.60 | 5.76 | 345.94 | 0.3829 | 884.0 | 717.7 | |
| 0.00 | 6.41 | 0.00 | 3.50 | 25.43 | 184.63 | 5.79 | 347.56 | 0.4244 | 1005.0 | 740.5 | |
| 0.00 | 2.99 | 0.00 | 1.61 | 23.66 | 184.35 | 5.51 | 347.11 | 0.3959 | 699.0 | 634.1 | |
| 0.00 | 1.88 | 0.00 | 1.00 | 22.29 | 183.88 | 5.04 | 347.35 | 0.3727 | 992.0 | 721.1 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 21.50 | 182.13 | 3.29 | 351.31 | 0.3548 | 815.0 | 611.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
