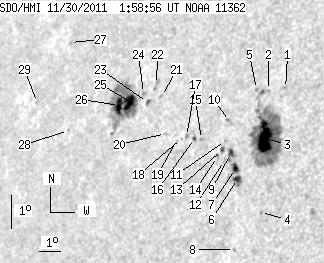

SDO HMI 2011-11-30 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.43 | 277.83 | 40.18 | 209.85 | 7.81 | 129.63 | -48.66 | 80.55 | 0.7553 | -255.2 | -122.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.73 | 9.00 | 133.06 | -45.22 | 78.44 | 0.7180 | 510.0 | 517.5 | |
| 0.00 | 1.03 | 0.00 | 0.74 | 8.93 | 132.35 | -45.94 | 78.65 | 0.7264 | 226.0 | 192.1 | |
| 24.28 | 137.96 | 17.36 | 98.61 | 7.49 | 132.39 | -45.90 | 80.62 | 0.7240 | -1110.5 | -405.8 | |
| 0.00 | 1.03 | 0.00 | 0.73 | 5.29 | 132.47 | -45.82 | 83.65 | 0.7208 | -682.0 | -525.2 | |
| 0.00 | 1.54 | 0.00 | 1.12 | 8.95 | 131.82 | -46.47 | 78.71 | 0.7326 | -473.0 | -333.6 | |
| 3.42 | 7.01 | 2.49 | 5.10 | 6.29 | 131.37 | -46.92 | 82.39 | 0.7348 | -802.2 | -576.4 | |
| 3.76 | 4.87 | 2.74 | 3.55 | 6.59 | 131.25 | -47.04 | 82.00 | 0.7365 | -827.9 | -633.9 | |
| 0.00 | 1.45 | 0.00 | 1.05 | 4.18 | 131.45 | -46.84 | 85.26 | 0.7324 | -563.0 | -501.9 | |
| 2.99 | 5.81 | 2.19 | 4.26 | 7.03 | 130.97 | -47.32 | 81.43 | 0.7402 | -720.5 | -555.1 | |
| 0.00 | 3.16 | 0.00 | 2.33 | 7.98 | 130.79 | -47.50 | 80.18 | 0.7434 | -184.0 | -262.8 | |
| 0.00 | 1.03 | 0.00 | 0.76 | 7.41 | 130.69 | -47.59 | 80.95 | 0.7438 | -568.0 | -457.7 | |
| 0.00 | 2.14 | 0.00 | 1.57 | 6.82 | 130.73 | -47.56 | 81.75 | 0.7427 | -453.0 | -342.2 | |
| 0.77 | 1.97 | 0.57 | 1.45 | 7.14 | 130.60 | -47.69 | 81.32 | 0.7446 | -542.6 | -362.3 | |
| 0.00 | 1.71 | 0.00 | 1.27 | 6.93 | 130.40 | -47.88 | 81.63 | 0.7466 | -379.0 | -273.9 | |
| 0.00 | 1.97 | 0.00 | 1.48 | 7.43 | 129.61 | -48.67 | 81.06 | 0.7562 | -620.0 | -425.5 | |
| 1.20 | 1.80 | 0.91 | 1.36 | 7.45 | 129.29 | -49.00 | 81.06 | 0.7598 | -488.1 | -428.4 | |
| 0.00 | 1.62 | 0.00 | 1.24 | 7.51 | 128.92 | -49.37 | 81.03 | 0.7641 | -588.0 | -470.6 | |
| 0.00 | 0.68 | 0.00 | 0.53 | 7.45 | 128.70 | -49.59 | 81.14 | 0.7665 | -487.0 | -419.8 | |
| 0.00 | 0.94 | 0.00 | 0.72 | 7.38 | 128.47 | -49.82 | 81.25 | 0.7689 | -363.0 | -296.2 | |
| 0.00 | 1.80 | 0.00 | 1.40 | 7.58 | 127.93 | -50.36 | 81.05 | 0.7751 | -458.0 | -290.3 | |
| 0.00 | 0.94 | 0.00 | 0.74 | 8.68 | 127.55 | -50.74 | 79.68 | 0.7803 | 727.0 | 677.3 | |
| 0.00 | 4.36 | 0.00 | 3.46 | 9.04 | 127.24 | -51.05 | 79.27 | 0.7840 | 634.0 | 516.9 | |
| 0.00 | 2.05 | 0.00 | 1.64 | 8.50 | 126.91 | -51.38 | 80.00 | 0.7869 | 563.0 | 537.4 | |
| 0.00 | 1.80 | 0.00 | 1.44 | 8.76 | 126.67 | -51.62 | 79.69 | 0.7898 | 825.0 | 687.9 | |
| 9.66 | 84.28 | 7.87 | 69.14 | 8.51 | 126.03 | -52.26 | 80.08 | 0.7962 | 939.4 | 276.9 | |
| 7.35 | -25.00 | 6.05 | -25.00 | 8.39 | 125.56 | -52.73 | 80.29 | 0.8009 | 681.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.36 | 10.23 | 122.61 | -55.68 | 78.37 | 0.8320 | 518.0 | 376.8 | |
| 0.00 | 0.94 | 0.00 | 0.82 | 7.61 | 123.11 | -55.18 | 81.48 | 0.8250 | 383.0 | 334.8 | |
| 0.00 | 1.37 | 0.00 | 1.25 | 8.41 | 121.27 | -57.02 | 80.67 | 0.8431 | 179.0 | 285.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
