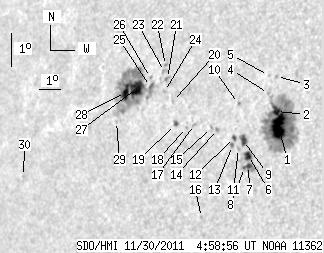

SDO HMI 2011-11-30 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.29 | 283.74 | 44.97 | 208.08 | 7.82 | 129.53 | -47.12 | 80.32 | 0.7377 | -199.6 | -119.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.18 | 134.39 | 14.00 | 93.17 | 7.44 | 132.49 | -44.16 | 80.42 | 0.7029 | -1147.0 | -437.3 | |
| 3.25 | -1.00 | 2.26 | -1.00 | 7.88 | 132.34 | -44.30 | 79.81 | 0.7053 | -685.2 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.60 | 8.93 | 132.19 | -44.46 | 78.37 | 0.7087 | 507.0 | 455.9 | |
| 0.00 | 1.03 | 0.00 | 0.72 | 8.42 | 131.93 | -44.72 | 79.13 | 0.7111 | -377.0 | -302.3 | |
| 0.00 | 0.77 | 0.00 | 0.54 | 8.95 | 131.85 | -44.80 | 78.39 | 0.7129 | -529.0 | -365.9 | |
| 4.27 | 15.99 | 3.02 | 11.30 | 6.56 | 131.33 | -45.32 | 81.81 | 0.7160 | -830.3 | -457.1 | |
| 2.48 | -6.00 | 1.75 | -6.00 | 6.26 | 131.36 | -45.28 | 82.22 | 0.7153 | -831.5 | 999999 | |
| 0.85 | -6.00 | 0.61 | -6.00 | 6.20 | 131.20 | -45.45 | 82.33 | 0.7172 | -369.0 | 999999 | |
| 4.27 | 6.16 | 3.04 | 4.38 | 7.00 | 131.06 | -45.58 | 81.23 | 0.7197 | -711.4 | -543.4 | |
| 0.00 | 1.03 | 0.00 | 0.74 | 8.10 | 130.70 | -45.95 | 79.76 | 0.7254 | -583.0 | -381.8 | |
| 0.00 | 1.62 | 0.00 | 1.16 | 6.76 | 130.88 | -45.77 | 81.59 | 0.7216 | -486.0 | -409.1 | |
| 1.62 | 2.39 | 1.16 | 1.71 | 7.09 | 130.67 | -45.98 | 81.16 | 0.7245 | -506.0 | -397.6 | |
| 0.00 | 1.88 | 0.00 | 1.35 | 6.85 | 130.61 | -46.04 | 81.50 | 0.7249 | -492.0 | -356.5 | |
| 0.00 | 1.71 | 0.00 | 1.24 | 7.32 | 129.90 | -46.75 | 80.95 | 0.7339 | -778.0 | -526.1 | |
| 0.00 | 0.60 | 0.00 | 0.44 | 7.37 | 129.63 | -47.02 | 80.91 | 0.7371 | -610.0 | -560.9 | |
| 0.00 | 0.68 | 0.00 | 0.50 | 4.70 | 129.49 | -47.15 | 84.56 | 0.7364 | -558.0 | -479.0 | |
| 0.00 | 1.62 | 0.00 | 1.20 | 7.45 | 128.86 | -47.78 | 80.90 | 0.7461 | -601.0 | -506.2 | |
| 0.00 | 1.03 | 0.00 | 0.76 | 7.36 | 128.52 | -48.13 | 81.06 | 0.7499 | -474.0 | -409.0 | |
| 1.71 | 2.39 | 1.29 | 1.80 | 7.44 | 128.01 | -48.64 | 81.02 | 0.7558 | -414.0 | -258.2 | |
| 0.00 | 1.45 | 0.00 | 1.10 | 8.12 | 127.77 | -48.88 | 80.15 | 0.7593 | 355.0 | 333.2 | |
| 0.00 | 2.22 | 0.00 | 1.70 | 8.81 | 127.42 | -49.23 | 79.30 | 0.7640 | 825.0 | 720.7 | |
| 0.00 | 1.03 | 0.00 | 0.79 | 9.19 | 127.26 | -49.39 | 78.82 | 0.7663 | 532.0 | 468.2 | |
| 0.00 | 2.48 | 0.00 | 1.90 | 9.01 | 127.24 | -49.40 | 79.05 | 0.7662 | 463.0 | 468.7 | |
| 0.00 | 0.94 | 0.00 | 0.72 | 8.42 | 127.35 | -49.30 | 79.82 | 0.7643 | 311.0 | 272.5 | |
| 1.54 | 98.23 | 1.19 | 77.60 | 8.56 | 126.68 | -49.97 | 79.72 | 0.7719 | 900.8 | 304.0 | |
| 0.00 | 1.28 | 0.00 | 1.00 | 8.83 | 126.63 | -50.02 | 79.38 | 0.7727 | 704.0 | 580.5 | |
| 14.02 | -25.00 | 11.02 | -25.00 | 8.49 | 126.03 | -50.62 | 79.89 | 0.7788 | 905.1 | 999999 | |
| 7.10 | -25.00 | 5.63 | -25.00 | 8.36 | 125.53 | -51.12 | 80.11 | 0.7841 | 670.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.75 | 7.49 | 125.25 | -51.40 | 81.25 | 0.7862 | -321.0 | -269.5 | |
| 0.00 | 1.03 | 0.00 | 0.91 | 5.79 | 120.82 | -55.83 | 83.70 | 0.8303 | -401.0 | -320.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
