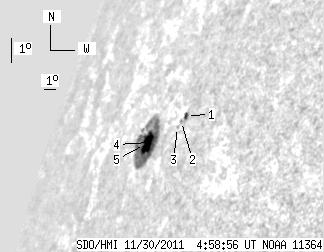

SDO HMI 2011-11-30 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.19 | 77.02 | 22.14 | 121.85 | 18.86 | 105.71 | -70.93 | 70.45 | 0.9505 | -323.6 | -92.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.05 | 2.82 | 2.88 | 3.96 | 19.71 | 108.27 | -68.38 | 69.28 | 0.9372 | 198.4 | 174.8 | |
| 0.00 | 1.28 | 0.00 | 1.82 | 19.52 | 108.01 | -68.64 | 69.52 | 0.9385 | -406.0 | -347.5 | |
| 0.00 | 0.85 | 0.00 | 1.22 | 19.33 | 107.84 | -68.81 | 69.74 | 0.9394 | -368.0 | -287.6 | |
| 9.49 | 72.07 | 15.00 | 114.85 | 18.83 | 105.64 | -71.01 | 70.49 | 0.9509 | -564.7 | -87.9 | |
| 2.65 | -4.00 | 4.26 | -4.00 | 18.76 | 105.31 | -71.33 | 70.59 | 0.9525 | 202.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
