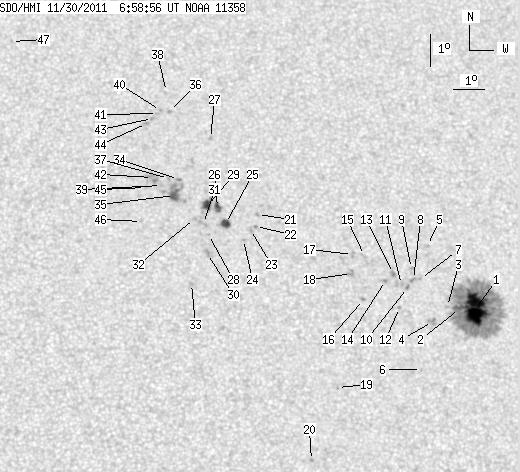

SDO HMI 2011-11-30 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.59 | 354.18 | 36.55 | 194.65 | 20.28 | 192.36 | 16.80 | 320.94 | 0.4342 | -206.1 | -210.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.17 | 232.95 | 23.85 | 128.70 | 19.39 | 194.74 | 19.18 | 315.57 | 0.4446 | -1323.5 | -408.1 | |
| 0.94 | -1.00 | 0.52 | -1.00 | 19.40 | 194.21 | 18.65 | 316.34 | 0.4388 | -1011.1 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 19.46 | 193.82 | 18.26 | 317.03 | 0.4353 | -679.0 | -539.3 | |
| 0.00 | 5.39 | 0.00 | 2.94 | 19.00 | 193.27 | 17.71 | 317.08 | 0.4243 | -1012.0 | -770.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 21.38 | 193.39 | 17.83 | 320.72 | 0.4523 | -767.0 | -504.1 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 17.51 | 192.76 | 17.20 | 315.27 | 0.4024 | -780.0 | -593.3 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 20.34 | 193.03 | 17.47 | 319.67 | 0.4369 | -941.0 | -689.5 | |
| 0.00 | 2.65 | 0.00 | 1.46 | 20.31 | 192.79 | 17.24 | 319.99 | 0.4341 | -808.0 | -691.4 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 20.66 | 192.77 | 17.21 | 320.58 | 0.4379 | -655.0 | -560.6 | |
| 0.00 | 1.97 | 0.00 | 1.08 | 20.06 | 192.57 | 17.01 | 319.95 | 0.4290 | -1000.0 | -802.0 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 20.16 | 192.38 | 16.82 | 320.41 | 0.4282 | -776.0 | -629.3 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 19.44 | 192.24 | 16.68 | 319.48 | 0.4184 | 684.0 | 411.8 | |
| 0.00 | 2.82 | 0.00 | 1.55 | 20.50 | 192.16 | 16.60 | 321.32 | 0.4300 | -860.0 | -752.7 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 20.28 | 191.87 | 16.31 | 321.45 | 0.4245 | -968.0 | -810.8 | |
| 0.00 | 2.82 | 0.00 | 1.54 | 21.07 | 191.26 | 15.71 | 323.67 | 0.4282 | -487.0 | -570.2 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 19.69 | 191.09 | 15.53 | 321.84 | 0.4097 | -1056.0 | -824.2 | |
| 0.00 | 2.14 | 0.00 | 1.17 | 21.10 | 190.87 | 15.32 | 324.38 | 0.4250 | -747.0 | -635.6 | |
| 0.00 | 4.19 | 0.00 | 2.28 | 20.51 | 190.78 | 15.22 | 323.65 | 0.4167 | -888.0 | -679.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 16.97 | 190.01 | 14.45 | 319.08 | 0.3660 | -760.0 | -612.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 14.74 | 189.02 | 13.47 | 316.54 | 0.3289 | -979.0 | -833.6 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 22.38 | 187.88 | 12.33 | 331.57 | 0.4164 | 803.0 | 605.4 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 22.00 | 187.78 | 12.23 | 331.28 | 0.4105 | 827.0 | 678.1 | |
| 0.00 | 2.05 | 0.00 | 1.11 | 21.91 | 187.61 | 12.06 | 331.50 | 0.4079 | 863.0 | 642.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 21.59 | 187.36 | 11.80 | 331.60 | 0.4016 | 945.0 | 730.2 | |
| 5.64 | 6.58 | 3.05 | 3.56 | 22.10 | 186.81 | 11.26 | 333.32 | 0.4046 | 936.1 | 830.6 | |
| 4.02 | 5.73 | 2.18 | 3.11 | 22.61 | 186.59 | 11.04 | 334.36 | 0.4102 | 834.7 | 731.3 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 24.82 | 186.55 | 11.00 | 336.79 | 0.4413 | 805.0 | 571.0 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 21.75 | 186.23 | 10.68 | 334.09 | 0.3956 | 849.0 | 668.3 | |
| 6.07 | 10.09 | 3.29 | 5.47 | 22.67 | 186.27 | 10.72 | 335.08 | 0.4090 | 937.9 | 710.9 | |
| 0.00 | 3.25 | 0.00 | 1.74 | 21.15 | 186.16 | 10.60 | 333.52 | 0.3865 | 835.0 | 731.3 | |
| 0.00 | 3.16 | 0.00 | 1.71 | 22.10 | 186.10 | 10.54 | 334.78 | 0.3996 | 678.0 | 709.7 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 22.26 | 185.82 | 10.26 | 335.54 | 0.4000 | 874.0 | 704.9 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 20.21 | 185.58 | 10.02 | 333.60 | 0.3689 | 824.0 | 648.3 | |
| 0.00 | 1.97 | 0.00 | 1.07 | 23.51 | 185.39 | 9.84 | 337.74 | 0.4153 | 803.0 | 640.6 | |
| 6.75 | 20.52 | 3.66 | 11.12 | 22.99 | 185.22 | 9.67 | 337.57 | 0.4068 | 1054.2 | 738.1 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 25.70 | 185.27 | 9.71 | 340.01 | 0.4465 | 869.0 | 681.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 23.54 | 185.07 | 9.51 | 338.43 | 0.4138 | 659.0 | 593.2 | |
| 0.00 | 0.51 | 0.00 | 0.29 | 26.36 | 185.22 | 9.67 | 340.64 | 0.4557 | 393.0 | 367.3 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 23.31 | 184.82 | 9.27 | 338.72 | 0.4091 | 818.0 | 587.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 25.74 | 184.97 | 9.42 | 340.59 | 0.4454 | 740.0 | 658.3 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 25.64 | 184.86 | 9.31 | 340.72 | 0.4434 | 645.0 | 553.5 | |
| 0.00 | 8.29 | 0.00 | 4.50 | 23.57 | 184.55 | 8.99 | 339.53 | 0.4114 | 738.0 | 702.9 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 25.48 | 184.68 | 9.13 | 340.92 | 0.4401 | 889.0 | 772.4 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 25.31 | 184.47 | 8.92 | 341.20 | 0.4367 | 896.0 | 750.8 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 23.25 | 184.30 | 8.74 | 339.76 | 0.4052 | 795.0 | 716.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 22.17 | 184.10 | 8.54 | 339.14 | 0.3880 | 693.0 | 581.0 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 28.01 | 180.13 | 4.58 | 351.18 | 0.4613 | 726.0 | 618.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
