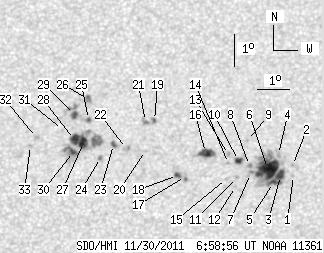

SDO HMI 2011-11-30 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.28 | 213.95 | 38.79 | 111.93 | 18.98 | 170.75 | -4.81 | 13.93 | 0.3227 | -219.8 | 142.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.44 | 18.26 | 174.58 | -0.98 | 3.13 | 0.2982 | -783.0 | -577.1 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 18.57 | 174.54 | -1.01 | 3.18 | 0.3035 | -636.0 | -381.4 | |
| 5.64 | 69.42 | 2.93 | 36.05 | 18.26 | 174.17 | -1.38 | 4.42 | 0.2987 | -1035.0 | -573.5 | |
| 0.00 | 1.88 | 0.00 | 0.98 | 18.92 | 174.10 | -1.45 | 4.46 | 0.3096 | 172.0 | 163.0 | |
| 2.31 | -3.00 | 1.20 | -3.00 | 18.05 | 173.96 | -1.60 | 5.18 | 0.2954 | -1188.5 | 999999 | |
| 27.01 | -3.00 | 14.03 | -3.00 | 18.48 | 173.77 | -1.79 | 5.64 | 0.3029 | -1179.3 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.46 | 18.33 | 173.24 | -2.32 | 7.36 | 0.3013 | -840.0 | -847.0 | |
| 0.00 | 2.31 | 0.00 | 1.20 | 18.57 | 173.20 | -2.35 | 7.35 | 0.3055 | -821.0 | -719.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 19.35 | 173.13 | -2.43 | 7.24 | 0.3185 | 746.0 | 540.3 | |
| 3.68 | 6.24 | 1.91 | 3.25 | 18.73 | 172.86 | -2.70 | 8.34 | 0.3088 | -1009.8 | -647.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 18.20 | 172.83 | -2.72 | 8.68 | 0.3002 | -963.0 | -787.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 17.92 | 172.78 | -2.78 | 9.02 | 0.2958 | -842.0 | -676.3 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 18.91 | 172.54 | -3.01 | 9.20 | 0.3127 | -913.0 | -676.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 18.64 | 172.55 | -3.01 | 9.34 | 0.3081 | -553.0 | -437.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 18.17 | 172.49 | -3.06 | 9.77 | 0.3006 | -775.0 | -568.3 | |
| 8.46 | 12.99 | 4.42 | 6.78 | 18.98 | 171.82 | -3.74 | 11.30 | 0.3158 | -837.0 | -559.3 | |
| 0.00 | 2.74 | 0.00 | 1.42 | 18.23 | 171.21 | -4.34 | 13.66 | 0.3059 | 910.0 | 818.4 | |
| 2.22 | 3.16 | 1.16 | 1.65 | 18.26 | 170.96 | -4.59 | 14.39 | 0.3074 | 943.5 | 734.5 | |
| 1.28 | 2.56 | 0.67 | 1.35 | 19.97 | 170.19 | -5.37 | 15.15 | 0.3380 | -880.4 | -779.7 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 19.04 | 169.94 | -5.62 | 16.66 | 0.3244 | 600.0 | 477.6 | |
| 0.00 | 4.53 | 0.00 | 2.38 | 19.94 | 169.90 | -5.65 | 15.93 | 0.3388 | -941.0 | -724.2 | |
| 0.00 | 3.33 | 0.00 | 1.75 | 19.10 | 169.34 | -6.22 | 18.25 | 0.3283 | 720.0 | 764.1 | |
| 2.31 | 3.16 | 1.21 | 1.66 | 19.22 | 168.92 | -6.63 | 19.24 | 0.3324 | 921.8 | 757.9 | |
| 0.00 | 2.05 | 0.00 | 1.08 | 18.82 | 168.53 | -7.03 | 20.74 | 0.3284 | 1139.0 | 910.4 | |
| 1.45 | 3.42 | 0.77 | 1.81 | 20.00 | 168.10 | -7.46 | 20.55 | 0.3490 | 894.7 | 801.5 | |
| 0.00 | 5.04 | 0.00 | 2.67 | 20.63 | 168.07 | -7.49 | 19.97 | 0.3588 | 972.0 | 789.6 | |
| 7.27 | 61.72 | 3.82 | 32.47 | 19.28 | 167.97 | -7.58 | 21.67 | 0.3389 | 1204.8 | 725.8 | |
| 6.24 | -27.00 | 3.29 | -27.00 | 19.37 | 167.68 | -7.87 | 22.30 | 0.3420 | 1029.6 | 999999 | |
| 3.25 | 10.94 | 1.72 | 5.80 | 20.15 | 167.64 | -7.91 | 21.50 | 0.3541 | 1087.9 | 713.5 | |
| 3.16 | -27.00 | 1.66 | -27.00 | 19.00 | 167.67 | -7.89 | 22.78 | 0.3365 | 1142.8 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 19.69 | 167.29 | -8.27 | 22.92 | 0.3492 | 624.0 | 467.5 | |
| 0.00 | 2.65 | 0.00 | 1.40 | 19.43 | 166.48 | -9.08 | 25.21 | 0.3509 | 917.0 | 718.2 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 19.18 | 166.30 | -9.26 | 25.96 | 0.3485 | 909.0 | 731.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
