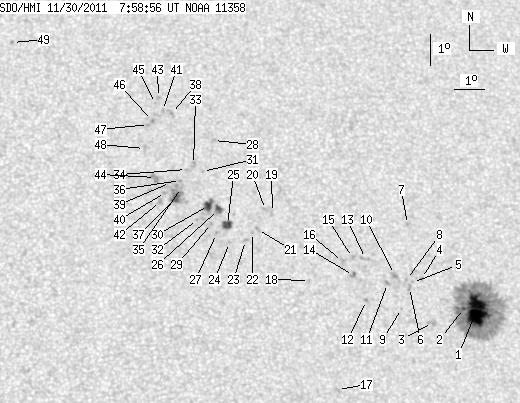

SDO HMI 2011-11-30 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.99 | 337.41 | 32.43 | 186.03 | 20.49 | 192.08 | 17.07 | 320.84 | 0.4399 | -76.8 | -208.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.48 | 215.42 | 19.66 | 119.45 | 19.39 | 194.72 | 19.71 | 314.82 | 0.4505 | -1347.1 | -458.3 | |
| 0.94 | -1.00 | 0.52 | -1.00 | 19.45 | 194.30 | 19.29 | 315.52 | 0.4464 | -1087.6 | 999999 | |
| 0.00 | 4.70 | 0.00 | 2.58 | 19.02 | 193.22 | 18.21 | 316.37 | 0.4301 | -955.0 | -746.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 20.40 | 193.02 | 18.01 | 318.94 | 0.4431 | -897.0 | -688.7 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 20.27 | 192.71 | 17.70 | 319.22 | 0.4384 | -692.0 | -662.9 | |
| 0.00 | 2.31 | 0.00 | 1.27 | 20.12 | 192.59 | 17.58 | 319.16 | 0.4355 | -914.0 | -764.4 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 22.10 | 192.77 | 17.76 | 321.92 | 0.4600 | -761.0 | -565.9 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 20.37 | 192.52 | 17.51 | 319.67 | 0.4376 | -740.0 | -607.0 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 19.46 | 192.25 | 17.24 | 318.62 | 0.4245 | 569.0 | 413.7 | |
| 0.00 | 3.33 | 0.00 | 1.83 | 20.53 | 192.14 | 17.13 | 320.51 | 0.4356 | -744.0 | -661.1 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 20.24 | 191.88 | 16.87 | 320.49 | 0.4297 | -940.0 | -703.1 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 19.72 | 191.13 | 16.12 | 320.87 | 0.4160 | -940.0 | -715.8 | |
| 0.00 | 3.08 | 0.00 | 1.69 | 21.03 | 191.24 | 16.23 | 322.74 | 0.4328 | -612.0 | -548.6 | |
| 0.00 | 3.68 | 0.00 | 2.01 | 20.50 | 190.79 | 15.78 | 322.69 | 0.4220 | -1077.0 | -813.8 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 21.07 | 190.82 | 15.81 | 323.50 | 0.4291 | -823.0 | -639.9 | |
| 0.00 | 2.91 | 0.00 | 1.59 | 20.94 | 190.47 | 15.46 | 323.90 | 0.4244 | -770.0 | -490.3 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 16.96 | 189.94 | 14.93 | 318.18 | 0.3711 | -770.0 | -629.0 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 20.35 | 189.33 | 14.32 | 325.03 | 0.4065 | 651.0 | 495.1 | |
| 0.00 | 1.97 | 0.00 | 1.08 | 22.50 | 188.33 | 13.32 | 329.87 | 0.4259 | 539.0 | 511.4 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 22.60 | 188.11 | 13.10 | 330.39 | 0.4254 | 687.0 | 633.7 | |
| 0.00 | 2.48 | 0.00 | 1.35 | 21.96 | 187.79 | 12.78 | 330.18 | 0.4143 | 749.0 | 614.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 21.87 | 187.62 | 12.61 | 330.39 | 0.4117 | 850.0 | 663.2 | |
| 0.00 | 2.05 | 0.00 | 1.11 | 21.62 | 187.37 | 12.36 | 330.54 | 0.4063 | 882.0 | 667.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 21.55 | 186.84 | 11.83 | 331.50 | 0.4014 | 760.0 | 616.9 | |
| 6.58 | 7.27 | 3.57 | 3.94 | 22.12 | 186.82 | 11.81 | 332.25 | 0.4091 | 903.6 | 671.8 | |
| 3.85 | 6.50 | 2.09 | 3.53 | 22.60 | 186.57 | 11.56 | 333.33 | 0.4139 | 843.8 | 672.3 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 21.84 | 186.44 | 11.43 | 332.66 | 0.4024 | 779.0 | 704.1 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 24.81 | 186.61 | 11.60 | 335.69 | 0.4451 | 568.0 | 504.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 22.16 | 186.31 | 11.30 | 333.32 | 0.4058 | 774.0 | 640.9 | |
| 6.58 | 8.72 | 3.58 | 4.74 | 22.73 | 186.26 | 11.24 | 334.10 | 0.4135 | 881.6 | 772.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 23.82 | 186.15 | 11.14 | 335.50 | 0.4281 | 615.0 | 470.8 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 22.29 | 185.86 | 10.85 | 334.37 | 0.4045 | 850.0 | 703.8 | |
| 0.00 | 2.82 | 0.00 | 1.55 | 24.04 | 185.87 | 10.86 | 336.27 | 0.4295 | 587.0 | 627.3 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 23.88 | 185.63 | 10.62 | 336.57 | 0.4257 | 742.0 | 600.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 23.31 | 185.42 | 10.41 | 336.39 | 0.4161 | 661.0 | 598.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 23.53 | 185.40 | 10.39 | 336.65 | 0.4192 | 812.0 | 680.0 | |
| 5.56 | 16.67 | 3.01 | 9.05 | 22.96 | 185.20 | 10.19 | 336.47 | 0.4096 | 1057.2 | 817.8 | |
| 0.00 | 3.33 | 0.00 | 1.85 | 25.70 | 185.29 | 10.28 | 338.95 | 0.4496 | 827.0 | 459.8 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 23.47 | 185.07 | 10.06 | 337.25 | 0.4162 | 625.0 | 583.6 | |
| 0.00 | 2.05 | 0.00 | 1.11 | 23.15 | 184.88 | 9.87 | 337.31 | 0.4104 | 982.0 | 795.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 25.79 | 185.00 | 9.99 | 339.58 | 0.4494 | 817.0 | 636.2 | |
| 0.00 | 3.42 | 0.00 | 1.85 | 22.86 | 184.70 | 9.69 | 337.39 | 0.4051 | 888.0 | 700.5 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 26.22 | 184.90 | 9.89 | 340.12 | 0.4550 | 525.0 | 464.9 | |
| 0.00 | 6.41 | 0.00 | 3.49 | 23.63 | 184.59 | 9.58 | 338.38 | 0.4157 | 778.0 | 725.9 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 26.02 | 184.78 | 9.77 | 340.17 | 0.4516 | 593.0 | 522.7 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 25.47 | 184.64 | 9.63 | 339.97 | 0.4427 | 1000.0 | 869.4 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 25.34 | 184.49 | 9.48 | 340.14 | 0.4401 | 940.0 | 743.5 | |
| 0.00 | 2.65 | 0.00 | 1.45 | 24.56 | 184.30 | 9.29 | 339.83 | 0.4277 | 702.0 | 578.5 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 28.04 | 180.13 | 5.12 | 350.17 | 0.4632 | 808.0 | 634.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
