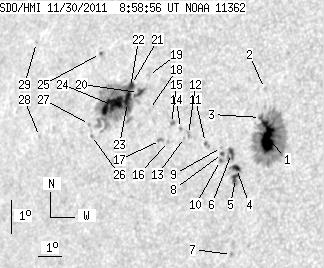

SDO HMI 2011-11-30 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.61 | 317.44 | 57.39 | 224.84 | 7.92 | 129.33 | -45.14 | 79.86 | 0.7145 | -58.3 | -76.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.73 | 138.30 | 17.21 | 92.39 | 7.50 | 132.59 | -41.87 | 79.92 | 0.6745 | -1063.0 | -418.3 | |
| 0.00 | 1.20 | 0.00 | 0.81 | 8.96 | 132.28 | -42.19 | 77.84 | 0.6809 | 672.0 | 523.6 | |
| 0.34 | -1.00 | 0.23 | -1.00 | 8.10 | 132.24 | -42.23 | 79.12 | 0.6799 | -492.0 | 999999 | |
| 3.68 | 5.38 | 2.50 | 3.67 | 6.57 | 131.44 | -43.02 | 81.47 | 0.6877 | -826.4 | -601.2 | |
| 4.10 | 6.75 | 2.79 | 4.59 | 6.27 | 131.43 | -43.03 | 81.91 | 0.6875 | -699.3 | -573.9 | |
| 3.68 | 7.09 | 2.51 | 4.85 | 7.01 | 131.19 | -43.28 | 80.87 | 0.6915 | -795.1 | -622.3 | |
| 0.00 | 1.45 | 0.00 | 0.99 | 4.02 | 131.46 | -43.00 | 85.20 | 0.6851 | -753.0 | -623.2 | |
| 1.11 | 1.54 | 0.76 | 1.06 | 7.01 | 130.82 | -43.65 | 80.93 | 0.6961 | -562.4 | -533.5 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 7.19 | 130.76 | -43.71 | 80.68 | 0.6971 | -391.0 | -320.1 | |
| 0.43 | 1.79 | 0.29 | 1.24 | 6.80 | 130.76 | -43.71 | 81.24 | 0.6966 | -505.2 | -363.6 | |
| 0.77 | 3.08 | 0.54 | 2.14 | 7.33 | 130.07 | -44.39 | 80.59 | 0.7057 | -506.3 | -561.0 | |
| 0.00 | 2.65 | 0.00 | 1.87 | 7.56 | 129.32 | -45.14 | 80.37 | 0.7151 | -680.0 | -572.5 | |
| 0.00 | 0.85 | 0.00 | 0.61 | 7.46 | 129.17 | -45.30 | 80.52 | 0.7169 | -517.0 | -436.1 | |
| 0.00 | 1.54 | 0.00 | 1.09 | 7.73 | 128.96 | -45.51 | 80.19 | 0.7197 | -529.0 | -433.8 | |
| 0.00 | 2.99 | 0.00 | 2.14 | 7.87 | 128.55 | -45.91 | 80.05 | 0.7247 | -465.0 | -267.3 | |
| 0.00 | 1.54 | 0.00 | 1.10 | 7.34 | 128.50 | -45.97 | 80.79 | 0.7247 | -508.0 | -416.0 | |
| 0.00 | 2.65 | 0.00 | 1.91 | 7.36 | 128.15 | -46.32 | 80.81 | 0.7289 | -540.0 | -394.8 | |
| 0.00 | 1.03 | 0.00 | 0.75 | 8.28 | 127.54 | -46.93 | 79.64 | 0.7372 | 546.0 | 420.8 | |
| 0.00 | 1.37 | 0.00 | 1.01 | 9.29 | 127.32 | -47.14 | 78.31 | 0.7411 | 637.0 | 504.6 | |
| 4.53 | 129.92 | 3.35 | 97.70 | 8.78 | 126.97 | -47.50 | 79.06 | 0.7445 | 782.0 | 375.3 | |
| 1.11 | -20.00 | 0.83 | -20.00 | 9.02 | 126.61 | -47.85 | 78.80 | 0.7488 | -154.5 | 999999 | |
| 3.25 | -20.00 | 2.42 | -20.00 | 8.93 | 126.58 | -47.88 | 78.92 | 0.7490 | 418.7 | 999999 | |
| 9.40 | -20.00 | 7.00 | -20.00 | 8.48 | 126.53 | -47.94 | 79.53 | 0.7491 | 867.0 | 999999 | |
| 21.54 | -20.00 | 16.24 | -20.00 | 8.38 | 125.87 | -48.60 | 79.75 | 0.7565 | 844.2 | 999999 | |
| 0.94 | 1.45 | 0.72 | 1.12 | 9.92 | 125.03 | -49.44 | 77.85 | 0.7678 | 582.5 | 607.0 | |
| 0.00 | 0.94 | 0.00 | 0.72 | 7.47 | 125.05 | -49.41 | 81.04 | 0.7646 | -437.0 | -374.4 | |
| 0.00 | 0.85 | 0.00 | 0.66 | 7.80 | 124.91 | -49.56 | 80.63 | 0.7665 | 419.0 | 462.8 | |
| 0.00 | 1.03 | 0.00 | 0.83 | 7.41 | 122.60 | -51.86 | 81.38 | 0.7912 | 309.0 | 279.4 | |
| 0.00 | 1.28 | 0.00 | 1.06 | 10.21 | 121.89 | -52.57 | 77.95 | 0.8014 | 459.0 | 334.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
