SDO HMI 2011-11-30 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.62 | 227.67 | 37.34 | 118.83 | 18.96 | 171.12 | -2.80 | 8.12 | 0.3162 | -186.0 | 34.3 | |
|
previous
or next observation for the same group /

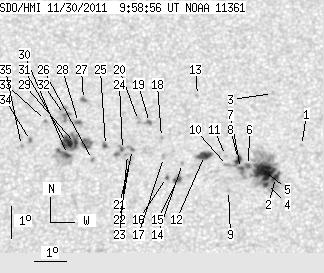

back to the solar disc SDO HMI 2011-11-30 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.54 | 19.27 | 175.03 | 1.11 | 356.66 | 0.3155 | -821.0 | -670.4 | |
| 3.50 | 102.90 | 1.82 | 53.44 | 18.28 | 174.21 | 0.29 | 359.06 | 0.2984 | -1075.5 | -573.2 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 20.90 | 174.12 | 0.20 | 359.44 | 0.3419 | -420.0 | -430.5 | |
| 1.79 | -2.00 | 0.93 | -2.00 | 18.06 | 173.93 | 0.01 | 359.95 | 0.2947 | -1238.2 | 999999 | |
| 21.62 | -2.00 | 11.23 | -2.00 | 18.47 | 173.87 | -0.05 | 0.15 | 0.3014 | -1242.6 | 999999 | |
| 2.39 | -2.00 | 1.24 | -2.00 | 18.65 | 173.37 | -0.55 | 1.71 | 0.3047 | -780.6 | 999999 | |
| 1.11 | -2.00 | 0.58 | -2.00 | 18.56 | 173.12 | -0.80 | 2.50 | 0.3033 | -1001.6 | 999999 | |
| 3.68 | -2.00 | 1.91 | -2.00 | 18.84 | 173.06 | -0.86 | 2.66 | 0.3080 | -922.8 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 17.88 | 172.75 | -1.17 | 3.82 | 0.2922 | -912.0 | -743.0 | |
| 0.00 | 2.65 | 0.00 | 1.38 | 18.65 | 172.72 | -1.20 | 3.75 | 0.3052 | -542.0 | -542.5 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 18.96 | 172.65 | -1.27 | 3.88 | 0.3104 | -864.0 | -628.7 | |
| 8.38 | 9.49 | 4.36 | 4.94 | 18.96 | 172.00 | -1.92 | 5.88 | 0.3114 | -857.7 | -587.0 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 20.84 | 171.75 | -2.17 | 5.95 | 0.3427 | -738.0 | -579.1 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 18.71 | 171.31 | -2.61 | 8.06 | 0.3086 | 826.0 | 694.4 | |
| 4.36 | 4.62 | 2.26 | 2.40 | 18.22 | 171.16 | -2.76 | 8.77 | 0.3008 | 1001.9 | 851.7 | |
| 1.11 | 1.20 | 0.58 | 0.62 | 18.28 | 170.82 | -3.10 | 9.81 | 0.3028 | 815.7 | 419.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 18.90 | 170.71 | -3.21 | 9.77 | 0.3132 | -806.0 | -636.4 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 19.52 | 170.64 | -3.28 | 9.64 | 0.3236 | -800.0 | -655.7 | |
| 1.88 | 2.56 | 0.99 | 1.35 | 19.99 | 170.25 | -3.67 | 10.47 | 0.3324 | -886.5 | -826.1 | |
| 0.00 | 2.56 | 0.00 | 1.35 | 20.05 | 169.90 | -4.02 | 11.40 | 0.3345 | -670.0 | -623.1 | |
| 1.28 | 3.33 | 0.67 | 1.74 | 19.15 | 169.74 | -4.18 | 12.47 | 0.3204 | 880.0 | 742.8 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 18.74 | 169.65 | -4.27 | 13.01 | 0.3142 | 897.0 | 661.5 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 18.99 | 169.59 | -4.33 | 13.03 | 0.3184 | 775.0 | 798.3 | |
| 1.45 | 5.98 | 0.76 | 3.13 | 19.15 | 169.42 | -4.50 | 13.37 | 0.3216 | 949.4 | 855.7 | |
| 1.54 | 2.73 | 0.81 | 1.43 | 19.27 | 168.89 | -5.03 | 14.80 | 0.3257 | 889.1 | 775.9 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 18.83 | 168.49 | -5.43 | 16.29 | 0.3205 | 1080.0 | 830.9 | |
| 2.05 | 2.73 | 1.08 | 1.45 | 20.71 | 168.14 | -5.78 | 15.60 | 0.3517 | 853.7 | 871.1 | |
| 1.03 | 2.39 | 0.54 | 1.26 | 19.99 | 168.01 | -5.91 | 16.56 | 0.3410 | 1027.9 | 879.8 | |
| 3.25 | 53.50 | 1.70 | 28.05 | 19.33 | 167.94 | -5.98 | 17.35 | 0.3310 | 1128.2 | 740.4 | |
| 2.48 | -29.00 | 1.30 | -29.00 | 18.99 | 167.70 | -6.22 | 18.35 | 0.3269 | 1113.3 | 999999 | |
| 8.72 | -29.00 | 4.58 | -29.00 | 19.36 | 167.66 | -6.26 | 18.09 | 0.3329 | 1044.6 | 999999 | |
| 0.00 | 12.22 | 0.00 | 6.45 | 20.24 | 167.56 | -6.36 | 17.51 | 0.3471 | 976.0 | 726.3 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 20.05 | 166.96 | -6.96 | 19.22 | 0.3472 | 720.0 | 684.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 19.42 | 166.52 | -7.40 | 21.03 | 0.3402 | 929.0 | 876.6 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 19.27 | 166.24 | -7.68 | 21.92 | 0.3395 | 857.0 | 819.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
