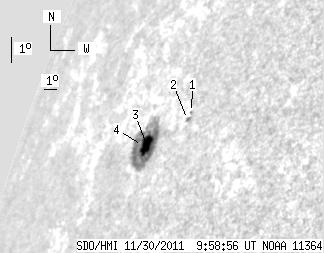

SDO HMI 2011-11-30 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.16 | 81.54 | 18.46 | 114.48 | 18.84 | 105.50 | -68.42 | 70.21 | 0.9368 | -357.7 | -80.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.75 | 19.86 | 108.28 | -65.64 | 68.76 | 0.9209 | 368.0 | 349.0 | |
| 0.00 | 1.71 | 0.00 | 2.16 | 19.64 | 108.15 | -65.77 | 69.02 | 0.9215 | 318.0 | 280.9 | |
| 10.77 | 79.23 | 15.06 | 111.57 | 18.82 | 105.49 | -68.43 | 70.23 | 0.9369 | -573.6 | -92.3 | |
| 2.39 | -3.00 | 3.40 | -3.00 | 18.78 | 105.18 | -68.74 | 70.30 | 0.9387 | 186.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
