SDO HMI 2011-11-30 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.71 | 256.93 | 34.25 | 133.89 | 18.95 | 171.27 | -1.01 | 2.78 | 0.3133 | 16.2 | -68.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

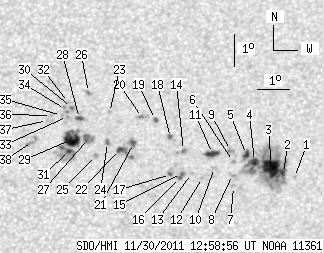

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.71 | 18.17 | 174.66 | 2.38 | 352.38 | 0.2994 | -666.0 | -563.7 | |
| 1.45 | 122.09 | 0.75 | 63.44 | 18.30 | 174.32 | 2.04 | 353.51 | 0.3007 | -959.6 | -549.5 | |
| 18.45 | -2.00 | 9.59 | -2.00 | 18.48 | 173.95 | 1.67 | 354.74 | 0.3032 | -1287.0 | 999999 | |
| 5.13 | -2.00 | 2.67 | -2.00 | 18.67 | 173.42 | 1.14 | 356.44 | 0.3056 | -941.0 | 999999 | |
| 3.25 | -2.00 | 1.69 | -2.00 | 18.89 | 173.17 | 0.89 | 357.25 | 0.3090 | -925.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.67 | 172.77 | 0.49 | 358.48 | 0.3051 | -974.0 | -711.9 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 17.90 | 172.76 | 0.49 | 358.41 | 0.2922 | -758.0 | -678.8 | |
| 0.00 | 1.88 | 0.00 | 0.97 | 18.27 | 172.73 | 0.46 | 358.54 | 0.2984 | -602.0 | -643.9 | |
| 0.00 | 2.56 | 0.00 | 1.33 | 19.01 | 172.67 | 0.39 | 358.79 | 0.3108 | -795.0 | -760.7 | |
| 0.00 | 1.79 | 0.00 | 0.93 | 18.48 | 172.17 | -0.11 | 0.33 | 0.3019 | -504.0 | -286.4 | |
| 6.24 | 9.23 | 3.25 | 4.80 | 18.92 | 172.11 | -0.17 | 0.52 | 0.3092 | -906.2 | -510.6 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 18.18 | 171.80 | -0.48 | 1.54 | 0.2968 | 665.0 | 451.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 18.30 | 171.46 | -0.82 | 2.62 | 0.2991 | 779.0 | 535.9 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 19.01 | 171.20 | -1.07 | 3.28 | 0.3112 | -1023.0 | -890.8 | |
| 0.34 | 3.42 | 0.18 | 1.77 | 18.30 | 171.15 | -1.13 | 3.61 | 0.2994 | 1034.0 | 963.4 | |
| 1.71 | -15.00 | 0.89 | -15.00 | 18.17 | 171.12 | -1.16 | 3.73 | 0.2974 | 1001.0 | 999999 | |
| 1.45 | 1.54 | 0.75 | 0.80 | 18.27 | 170.80 | -1.47 | 4.70 | 0.2993 | 858.9 | 576.0 | |
| 0.00 | 3.84 | 0.00 | 2.01 | 19.42 | 170.79 | -1.48 | 4.42 | 0.3184 | -880.0 | -707.9 | |
| 1.97 | 1.97 | 1.03 | 1.03 | 19.98 | 170.32 | -1.96 | 5.65 | 0.3284 | -816.8 | 0.0 | |
| 0.00 | 4.19 | 0.00 | 2.20 | 20.04 | 169.91 | -2.37 | 6.79 | 0.3301 | -928.0 | -689.4 | |
| 2.48 | 5.47 | 1.29 | 2.85 | 19.23 | 169.64 | -2.64 | 7.92 | 0.3174 | 970.8 | 833.4 | |
| 2.73 | 8.46 | 1.43 | 4.41 | 19.04 | 169.20 | -3.08 | 9.30 | 0.3154 | 1033.4 | 958.9 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 20.20 | 168.86 | -3.41 | 9.64 | 0.3351 | 728.0 | 605.4 | |
| 0.43 | 2.39 | 0.22 | 1.25 | 19.26 | 168.82 | -3.46 | 10.29 | 0.3200 | 1010.0 | 810.6 | |
| 0.00 | 2.31 | 0.00 | 1.20 | 18.86 | 168.49 | -3.79 | 11.53 | 0.3145 | 925.0 | 784.1 | |
| 0.00 | 2.56 | 0.00 | 1.35 | 20.82 | 168.18 | -4.09 | 11.13 | 0.3473 | 968.0 | 769.6 | |
| 0.00 | 8.37 | 0.00 | 4.38 | 19.38 | 168.22 | -4.06 | 11.94 | 0.3239 | 1000.0 | 883.1 | |
| 2.82 | 4.36 | 1.48 | 2.29 | 20.01 | 167.92 | -4.36 | 12.35 | 0.3351 | 969.4 | 703.4 | |
| 14.78 | 45.03 | 7.74 | 23.55 | 19.35 | 167.69 | -4.59 | 13.48 | 0.3254 | 1076.4 | 629.8 | |
| 0.43 | 1.88 | 0.22 | 0.99 | 20.35 | 167.66 | -4.62 | 12.83 | 0.3415 | 877.2 | 689.4 | |
| 2.05 | -29.00 | 1.07 | -29.00 | 19.01 | 167.64 | -4.64 | 13.90 | 0.3201 | 1152.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 20.51 | 167.56 | -4.72 | 12.99 | 0.3444 | 620.0 | 460.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 20.07 | 167.54 | -4.74 | 13.35 | 0.3374 | 991.0 | 809.4 | |
| 0.00 | 2.48 | 0.00 | 1.30 | 20.29 | 167.47 | -4.81 | 13.38 | 0.3412 | 620.0 | 733.4 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 20.10 | 167.35 | -4.93 | 13.84 | 0.3387 | 731.0 | 589.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 20.10 | 167.04 | -5.24 | 14.69 | 0.3400 | 628.0 | 501.7 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 19.94 | 166.91 | -5.36 | 15.14 | 0.3380 | 760.0 | 631.1 | |
| 0.00 | 5.21 | 0.00 | 2.73 | 19.29 | 166.46 | -5.81 | 16.94 | 0.3297 | 815.0 | 774.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
