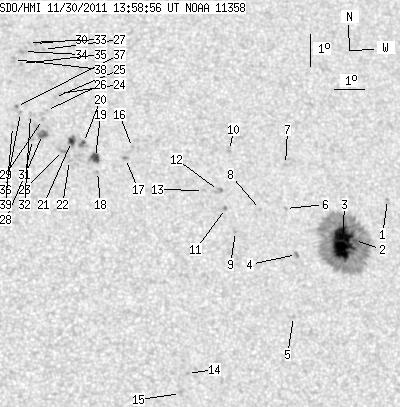

SDO HMI 2011-11-30 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.30 | 304.84 | 30.05 | 171.84 | 20.14 | 192.90 | 21.17 | 314.44 | 0.4780 | -296.9 | -209.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.59 | 20.80 | 196.48 | 24.75 | 311.01 | 0.5207 | -726.0 | -606.2 | |
| 0.51 | 227.76 | 0.29 | 129.17 | 19.52 | 195.13 | 23.40 | 310.45 | 0.4939 | -520.3 | -381.9 | |
| 43.31 | -2.00 | 24.55 | -2.00 | 19.43 | 194.70 | 22.97 | 310.79 | 0.4882 | -1257.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 19.10 | 193.10 | 21.37 | 312.17 | 0.4665 | -935.0 | -800.3 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 17.18 | 192.76 | 21.03 | 309.23 | 0.4444 | -843.0 | -596.2 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 20.54 | 192.93 | 21.20 | 314.74 | 0.4788 | -779.0 | -637.1 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 21.92 | 193.14 | 21.41 | 316.62 | 0.4951 | -967.0 | -666.4 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 20.51 | 192.08 | 20.35 | 315.81 | 0.4693 | -814.0 | -579.2 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 19.83 | 191.15 | 19.42 | 315.98 | 0.4521 | -977.0 | -720.2 | |
| 0.00 | 2.39 | 0.00 | 1.35 | 22.38 | 191.30 | 19.57 | 319.72 | 0.4812 | -741.0 | -561.0 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 20.55 | 190.91 | 19.18 | 317.48 | 0.4572 | -1076.0 | -928.4 | |
| 0.00 | 4.36 | 0.00 | 2.43 | 21.11 | 190.75 | 19.03 | 318.60 | 0.4618 | -620.0 | -695.9 | |
| 0.00 | 1.71 | 0.00 | 0.95 | 21.12 | 190.25 | 18.52 | 319.33 | 0.4567 | -478.0 | -486.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 15.45 | 189.12 | 17.39 | 311.01 | 0.3834 | -874.0 | -739.3 | |
| 0.00 | 1.88 | 0.00 | 1.00 | 14.84 | 188.84 | 17.11 | 310.17 | 0.3739 | -806.0 | -756.1 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 22.49 | 188.06 | 16.33 | 324.72 | 0.4516 | 807.0 | 667.5 | |
| 0.00 | 1.96 | 0.00 | 1.09 | 22.14 | 187.78 | 16.05 | 324.68 | 0.4448 | 917.0 | 731.1 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 21.73 | 186.81 | 15.08 | 325.73 | 0.4310 | 875.0 | 747.9 | |
| 5.64 | 8.29 | 3.10 | 4.56 | 22.18 | 186.79 | 15.06 | 326.38 | 0.4365 | 876.5 | 839.4 | |
| 0.51 | 4.27 | 0.28 | 2.35 | 22.65 | 186.45 | 14.72 | 327.62 | 0.4396 | 877.5 | 727.9 | |
| 3.33 | 6.32 | 1.83 | 3.48 | 22.69 | 186.05 | 14.32 | 328.34 | 0.4367 | 922.1 | 730.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 22.08 | 185.92 | 14.19 | 327.77 | 0.4278 | 651.0 | 725.2 | |
| 0.00 | 2.82 | 0.00 | 1.55 | 22.40 | 185.73 | 14.00 | 328.54 | 0.4303 | 982.0 | 776.8 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 24.23 | 185.82 | 14.09 | 330.65 | 0.4550 | 634.0 | 513.4 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 24.10 | 185.64 | 13.91 | 330.81 | 0.4519 | 680.0 | 543.5 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 23.68 | 185.33 | 13.60 | 330.85 | 0.4440 | 680.0 | 612.3 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 25.65 | 185.45 | 13.72 | 332.89 | 0.4712 | 754.0 | 611.4 | |
| 0.00 | 6.83 | 0.00 | 3.75 | 22.91 | 185.12 | 13.39 | 330.29 | 0.4322 | 1074.0 | 961.2 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 23.39 | 185.17 | 13.44 | 330.79 | 0.4390 | 810.0 | 660.1 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 25.85 | 185.20 | 13.47 | 333.51 | 0.4721 | 874.0 | 672.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 22.76 | 184.77 | 13.04 | 330.72 | 0.4274 | 914.0 | 745.4 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 23.55 | 184.79 | 13.06 | 331.67 | 0.4382 | 694.0 | 534.2 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 25.88 | 184.97 | 13.24 | 333.93 | 0.4709 | 690.0 | 536.7 | |
| 0.00 | 2.65 | 0.00 | 1.48 | 25.59 | 184.77 | 13.04 | 333.97 | 0.4656 | 980.0 | 735.6 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 25.20 | 184.66 | 12.93 | 333.74 | 0.4596 | 769.0 | 659.1 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 23.62 | 184.46 | 12.73 | 332.33 | 0.4367 | 910.0 | 715.7 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 23.81 | 184.35 | 12.62 | 332.76 | 0.4385 | 767.0 | 702.4 | |
| 0.00 | 2.90 | 0.00 | 1.62 | 25.33 | 184.41 | 12.68 | 334.32 | 0.4596 | 694.0 | 591.3 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 23.17 | 184.15 | 12.43 | 332.37 | 0.4284 | 887.0 | 634.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
