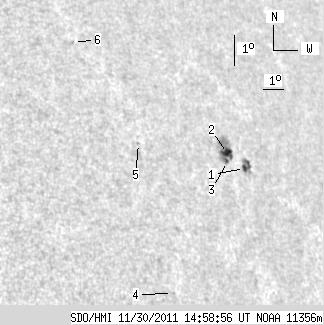

SDO HMI 2011-11-30 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.77 | 40.49 | 9.20 | 34.46 | 18.44 | 223.71 | 52.53 | 292.15 | 0.8150 | -382.3 | -282.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.05 | 9.82 | 1.77 | 8.52 | 18.02 | 224.51 | 53.33 | 291.43 | 0.8217 | -658.0 | -387.5 | |
| 7.52 | 28.19 | 6.41 | 24.02 | 18.49 | 223.84 | 52.66 | 292.17 | 0.8164 | -703.5 | -328.9 | |
| 1.20 | -2.00 | 1.02 | -2.00 | 18.25 | 223.73 | 52.55 | 291.90 | 0.8148 | -742.2 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 14.24 | 219.63 | 48.45 | 287.94 | 0.7647 | 559.0 | 526.3 | |
| 0.00 | 0.94 | 0.00 | 0.73 | 18.86 | 219.59 | 48.41 | 293.81 | 0.7760 | 597.0 | 519.3 | |
| 0.00 | 1.28 | 0.00 | 0.99 | 22.05 | 217.85 | 46.67 | 298.39 | 0.7687 | 611.0 | 462.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
