SDO HMI 2011-11-30 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.33 | 302.53 | 29.05 | 171.09 | 20.22 | 192.79 | 21.61 | 314.02 | 0.4836 | -295.0 | -203.7 | |
|
previous
or next observation for the same group /

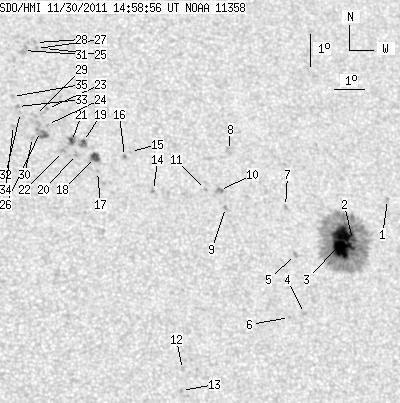

back to the solar disc SDO HMI 2011-11-30 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.14 | 20.79 | 196.48 | 25.30 | 310.42 | 0.5270 | -695.0 | -645.1 | |
| 0.51 | 221.58 | 0.29 | 126.18 | 19.55 | 195.06 | 23.88 | 309.96 | 0.4998 | -667.3 | -400.6 | |
| 40.75 | -2.00 | 23.20 | -2.00 | 19.49 | 194.71 | 23.53 | 310.26 | 0.4951 | -1242.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 17.27 | 193.11 | 21.93 | 308.28 | 0.4563 | -782.0 | -556.7 | |
| 0.00 | 2.73 | 0.00 | 1.53 | 19.09 | 193.05 | 21.87 | 311.54 | 0.4723 | -934.0 | -695.7 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 17.15 | 192.60 | 21.42 | 308.68 | 0.4489 | -741.0 | -652.8 | |
| 0.00 | 1.79 | 0.00 | 1.01 | 20.60 | 192.93 | 21.75 | 314.14 | 0.4854 | -744.0 | -585.6 | |
| 0.00 | 2.99 | 0.00 | 1.69 | 22.37 | 191.26 | 20.08 | 319.03 | 0.4862 | -631.0 | -479.0 | |
| 0.00 | 1.79 | 0.00 | 1.00 | 20.58 | 190.90 | 19.72 | 316.78 | 0.4633 | -983.0 | -763.7 | |
| 0.00 | 4.01 | 0.00 | 2.25 | 21.11 | 190.77 | 19.59 | 317.79 | 0.4676 | -746.0 | -728.5 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 21.14 | 190.31 | 19.13 | 318.50 | 0.4632 | -654.0 | -538.9 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 15.57 | 188.93 | 17.75 | 310.69 | 0.3891 | -481.0 | -503.3 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 14.93 | 188.84 | 17.66 | 309.50 | 0.3816 | -923.0 | -766.4 | |
| 0.00 | 1.88 | 0.00 | 1.04 | 21.12 | 188.57 | 17.39 | 321.05 | 0.4454 | 789.0 | 625.8 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 22.36 | 187.96 | 16.78 | 323.82 | 0.4541 | 889.0 | 603.1 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 22.20 | 187.74 | 16.56 | 323.95 | 0.4502 | 934.0 | 764.3 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 21.73 | 186.79 | 15.61 | 324.83 | 0.4357 | 849.0 | 717.8 | |
| 5.89 | 8.37 | 3.25 | 4.61 | 22.17 | 186.77 | 15.59 | 325.49 | 0.4411 | 893.2 | 840.4 | |
| 1.79 | 4.95 | 0.99 | 2.74 | 22.68 | 186.43 | 15.25 | 326.75 | 0.4445 | 725.5 | 770.1 | |
| 0.00 | 1.96 | 0.00 | 1.08 | 22.27 | 186.15 | 14.97 | 326.67 | 0.4369 | 875.0 | 671.9 | |
| 2.39 | 6.32 | 1.32 | 3.49 | 22.68 | 186.03 | 14.85 | 327.43 | 0.4411 | 914.8 | 646.3 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 22.37 | 185.73 | 14.55 | 327.52 | 0.4346 | 831.0 | 828.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 23.74 | 185.35 | 14.17 | 329.94 | 0.4493 | 665.0 | 589.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 23.23 | 185.30 | 14.12 | 329.40 | 0.4421 | 728.0 | 594.8 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 25.68 | 185.48 | 14.30 | 331.98 | 0.4757 | 780.0 | 646.3 | |
| 0.00 | 11.87 | 0.00 | 6.53 | 23.01 | 185.04 | 13.86 | 329.57 | 0.4372 | 907.0 | 880.7 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 25.68 | 185.21 | 14.03 | 332.42 | 0.4738 | 805.0 | 649.1 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 25.88 | 185.20 | 14.02 | 332.65 | 0.4763 | 803.0 | 660.9 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 23.52 | 184.93 | 13.75 | 330.40 | 0.4431 | 668.0 | 567.9 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 22.82 | 184.76 | 13.58 | 329.83 | 0.4324 | 844.0 | 743.0 | |
| 0.00 | 5.38 | 0.00 | 3.02 | 25.62 | 184.76 | 13.58 | 333.09 | 0.4698 | 930.0 | 695.4 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 23.62 | 184.44 | 13.26 | 331.38 | 0.4406 | 734.0 | 653.6 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 23.81 | 184.36 | 13.18 | 331.75 | 0.4426 | 899.0 | 743.8 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 23.20 | 184.17 | 12.99 | 331.37 | 0.4330 | 847.0 | 658.8 | |
| 0.00 | 1.88 | 0.00 | 1.04 | 24.13 | 184.23 | 13.05 | 332.36 | 0.4460 | 671.0 | 553.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
