SDO HMI 2011-11-30 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.88 | 430.54 | 68.44 | 291.25 | 8.04 | 128.76 | -42.42 | 79.21 | 0.6813 | 4.8 | 37.0 | |
|
previous
or next observation for the same group /

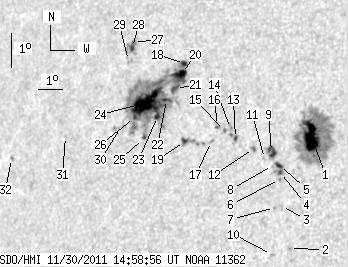

back to the solar disc SDO HMI 2011-11-30 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.40 | 146.93 | 16.79 | 93.29 | 7.49 | 132.77 | -38.41 | 79.25 | 0.6293 | -1093.5 | -423.1 | |
| 0.00 | 1.54 | 0.00 | 0.98 | 4.16 | 132.20 | -38.98 | 84.61 | 0.6325 | -764.0 | -606.7 | |
| 0.00 | 1.79 | 0.00 | 1.15 | 5.40 | 131.81 | -39.37 | 82.70 | 0.6390 | -744.0 | -529.5 | |
| 1.96 | 6.58 | 1.27 | 4.24 | 6.41 | 131.68 | -39.50 | 81.15 | 0.6420 | -825.5 | -812.6 | |
| 2.22 | -4.00 | 1.43 | -4.00 | 6.62 | 131.62 | -39.56 | 80.84 | 0.6431 | -900.3 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 6.20 | 131.66 | -39.52 | 81.48 | 0.6420 | -725.0 | -631.3 | |
| 0.00 | 1.37 | 0.00 | 0.88 | 5.37 | 131.54 | -39.64 | 82.79 | 0.6425 | -586.0 | -525.4 | |
| 0.00 | 1.20 | 0.00 | 0.77 | 6.62 | 131.35 | -39.83 | 80.89 | 0.6467 | -474.0 | -418.1 | |
| 6.83 | 8.97 | 4.43 | 5.82 | 7.03 | 131.27 | -39.91 | 80.26 | 0.6484 | -788.4 | -583.0 | |
| 0.00 | 1.37 | 0.00 | 0.88 | 3.98 | 131.52 | -39.66 | 84.97 | 0.6415 | -703.0 | -585.4 | |
| 0.00 | 1.37 | 0.00 | 0.89 | 6.82 | 131.02 | -40.16 | 80.63 | 0.6513 | -470.0 | -445.6 | |
| 1.37 | 2.48 | 0.90 | 1.62 | 7.11 | 130.56 | -40.62 | 80.27 | 0.6578 | -667.3 | -628.6 | |
| 1.88 | 4.53 | 1.25 | 3.01 | 7.40 | 129.81 | -41.37 | 79.97 | 0.6679 | -394.2 | -390.2 | |
| 0.00 | 3.76 | 0.00 | 2.50 | 7.70 | 129.58 | -41.60 | 79.57 | 0.6714 | 650.0 | 88.8 | |
| 0.68 | 1.45 | 0.46 | 0.97 | 7.64 | 129.35 | -41.83 | 79.70 | 0.6742 | -579.1 | -598.0 | |
| 0.00 | 2.73 | 0.00 | 1.84 | 7.78 | 129.05 | -42.13 | 79.54 | 0.6783 | -586.0 | -482.7 | |
| 0.00 | 2.05 | 0.00 | 1.38 | 7.30 | 128.86 | -42.32 | 80.28 | 0.6799 | -374.0 | -215.7 | |
| 2.31 | 213.90 | 1.60 | 150.68 | 9.62 | 127.43 | -43.75 | 77.22 | 0.7015 | -502.9 | 391.7 | |
| 2.73 | 8.20 | 1.87 | 5.61 | 7.29 | 127.76 | -43.42 | 80.47 | 0.6937 | -479.6 | -473.2 | |
| 5.21 | -18.00 | 3.61 | -18.00 | 9.32 | 127.35 | -43.83 | 77.66 | 0.7019 | -389.2 | 999999 | |
| 4.36 | -18.00 | 3.03 | -18.00 | 8.86 | 127.17 | -44.01 | 78.33 | 0.7033 | 904.1 | 999999 | |
| 2.90 | -18.00 | 2.03 | -18.00 | 8.53 | 126.85 | -44.33 | 78.86 | 0.7067 | 1029.5 | 999999 | |
| 2.73 | -18.00 | 1.92 | -18.00 | 8.02 | 126.54 | -44.64 | 79.63 | 0.7097 | 829.4 | 999999 | |
| 34.42 | -18.00 | 24.36 | -18.00 | 8.43 | 126.02 | -45.16 | 79.14 | 0.7166 | 995.5 | 999999 | |
| 0.60 | -18.00 | 0.42 | -18.00 | 7.36 | 126.04 | -45.14 | 80.63 | 0.7149 | -345.0 | 999999 | |
| 1.20 | -18.00 | 0.85 | -18.00 | 7.98 | 125.57 | -45.61 | 79.84 | 0.7213 | 695.8 | 999999 | |
| 0.94 | 8.37 | 0.68 | 6.05 | 10.22 | 125.16 | -46.02 | 76.84 | 0.7297 | 707.5 | 567.7 | |
| 2.14 | -27.00 | 1.54 | -27.00 | 10.07 | 125.14 | -46.04 | 77.05 | 0.7296 | 747.7 | 999999 | |
| 0.00 | 3.50 | 0.00 | 2.53 | 9.68 | 125.04 | -46.14 | 77.60 | 0.7301 | 427.0 | 512.2 | |
| 0.00 | 4.78 | 0.00 | 3.44 | 7.68 | 125.01 | -46.17 | 80.34 | 0.7276 | 436.0 | 466.7 | |
| 0.00 | 1.45 | 0.00 | 1.09 | 7.38 | 122.62 | -48.56 | 81.05 | 0.7549 | 570.0 | 386.6 | |
| 0.00 | 1.37 | 0.00 | 1.08 | 6.69 | 120.22 | -50.96 | 82.20 | 0.7809 | 575.0 | 365.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
