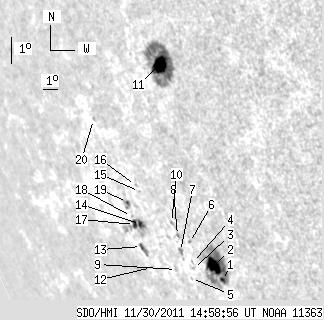

SDO HMI 2011-11-30 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.84 | 190.58 | 42.60 | 212.83 | -20.43 | 109.90 | -61.28 | 113.45 | 0.8973 | 247.2 | 148.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.31 | 62.02 | 2.55 | 68.77 | -23.76 | 110.90 | -60.28 | 117.32 | 0.8965 | 471.3 | 267.1 | |
| 12.47 | -1.00 | 13.87 | -1.00 | -23.27 | 110.69 | -60.49 | 116.75 | 0.8971 | 604.5 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.90 | -23.40 | 109.24 | -61.94 | 116.54 | 0.9071 | 342.0 | 263.2 | |
| 0.00 | 0.94 | 0.00 | 1.09 | -23.20 | 109.33 | -61.85 | 116.35 | 0.9062 | 317.0 | 258.1 | |
| 0.00 | 1.03 | 0.00 | 1.22 | -23.73 | 108.82 | -62.36 | 116.80 | 0.9104 | 17.0 | 58.2 | |
| 0.00 | 1.20 | 0.00 | 1.37 | -22.55 | 109.64 | -61.54 | 115.72 | 0.9030 | 469.0 | 353.3 | |
| 0.00 | 2.56 | 0.00 | 3.02 | -22.85 | 108.78 | -62.40 | 115.85 | 0.9093 | -33.0 | 79.1 | |
| 0.00 | 1.37 | 0.00 | 1.59 | -22.33 | 108.99 | -62.19 | 115.34 | 0.9071 | 428.0 | 303.2 | |
| 0.00 | 1.96 | 0.00 | 2.39 | -23.45 | 107.99 | -63.19 | 116.32 | 0.9152 | 107.0 | 61.3 | |
| 0.00 | 1.20 | 0.00 | 1.39 | -21.92 | 108.89 | -62.29 | 114.87 | 0.9070 | 227.0 | 178.9 | |
| 14.01 | 81.75 | 14.59 | 85.10 | -16.90 | 111.34 | -59.84 | 109.87 | 0.8816 | 743.0 | 273.5 | |
| 0.00 | 0.85 | 0.00 | 1.11 | -23.42 | 106.16 | -65.02 | 115.91 | 0.9264 | -279.0 | -202.6 | |
| 1.79 | 5.38 | 2.33 | 6.98 | -22.74 | 106.02 | -65.16 | 115.16 | 0.9264 | -369.5 | -481.5 | |
| 3.42 | 22.12 | 4.32 | 28.48 | -22.02 | 106.58 | -64.60 | 114.51 | 0.9221 | -662.6 | -179.1 | |
| 0.00 | 0.77 | 0.00 | 0.94 | -20.95 | 107.38 | -63.80 | 113.52 | 0.9156 | -627.0 | -557.1 | |
| 0.00 | 0.85 | 0.00 | 1.04 | -20.77 | 107.24 | -63.94 | 113.29 | 0.9162 | -595.0 | -532.2 | |
| 2.90 | -14.00 | 3.74 | -14.00 | -22.03 | 106.12 | -65.06 | 114.43 | 0.9249 | -448.1 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.55 | -21.77 | 106.11 | -65.07 | 114.16 | 0.9246 | -423.0 | -375.0 | |
| 0.94 | 3.93 | 1.20 | 5.04 | -21.33 | 106.19 | -64.99 | 113.69 | 0.9236 | -596.8 | -533.1 | |
| 0.00 | 1.45 | 0.00 | 1.85 | -18.71 | 105.70 | -65.48 | 110.81 | 0.9236 | -515.0 | -419.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
