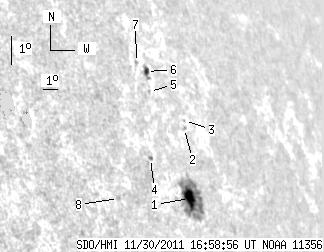

SDO HMI 2011-11-30 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.98 | 79.43 | 14.57 | 89.24 | 16.06 | 232.95 | 62.87 | 287.46 | 0.8985 | -372.2 | -65.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.82 | 64.14 | 11.02 | 72.35 | 15.51 | 233.12 | 63.04 | 286.83 | 0.8992 | -698.4 | -71.8 | |
| 0.00 | 1.28 | 0.00 | 1.50 | 17.66 | 234.06 | 63.99 | 289.07 | 0.9079 | -535.0 | -447.2 | |
| 0.00 | 1.20 | 0.00 | 1.41 | 17.90 | 234.23 | 64.15 | 289.32 | 0.9093 | -314.0 | -279.1 | |
| 0.00 | 1.79 | 0.00 | 1.90 | 16.77 | 231.22 | 61.14 | 288.50 | 0.8862 | -563.0 | -478.0 | |
| 0.00 | 1.28 | 0.00 | 1.43 | 18.83 | 232.40 | 62.32 | 290.61 | 0.8973 | 405.0 | 363.0 | |
| 3.16 | 6.41 | 3.55 | 7.20 | 19.45 | 232.61 | 62.53 | 291.26 | 0.8996 | 401.4 | 395.9 | |
| 0.00 | 1.45 | 0.00 | 1.61 | 19.74 | 232.13 | 62.05 | 291.66 | 0.8965 | -471.0 | -368.9 | |
| 0.00 | 1.88 | 0.00 | 1.84 | 15.57 | 228.64 | 58.56 | 287.54 | 0.8640 | 94.0 | 57.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
