SDO HMI 2011-11-30 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.14 | 281.85 | 40.74 | 146.92 | 18.93 | 171.46 | 1.38 | 355.62 | 0.3137 | 83.5 | -88.5 | |
|
previous
or next observation for the same group /

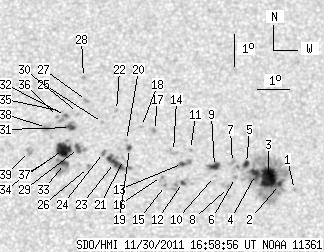

back to the solar disc SDO HMI 2011-11-30 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.71 | 18.13 | 174.79 | 4.71 | 345.16 | 0.3064 | -830.0 | -662.6 | |
| 1.20 | 140.41 | 0.62 | 73.10 | 18.29 | 174.33 | 4.25 | 346.69 | 0.3070 | -949.9 | -475.7 | |
| 20.84 | -2.00 | 10.85 | -2.00 | 18.50 | 173.99 | 3.91 | 347.87 | 0.3093 | -1343.3 | 999999 | |
| 5.81 | -2.00 | 3.02 | -2.00 | 18.60 | 173.59 | 3.51 | 349.15 | 0.3095 | -1111.3 | 999999 | |
| 2.90 | -2.00 | 1.51 | -2.00 | 18.94 | 173.31 | 3.23 | 350.18 | 0.3142 | -952.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.50 | 172.96 | 2.88 | 351.00 | 0.3061 | -839.0 | -672.2 | |
| 0.00 | 2.56 | 0.00 | 1.34 | 18.97 | 172.87 | 2.80 | 351.50 | 0.3136 | -834.0 | -665.6 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 18.19 | 172.74 | 2.66 | 351.53 | 0.3005 | -720.0 | -645.5 | |
| 5.12 | 7.86 | 2.67 | 4.09 | 18.85 | 172.31 | 2.23 | 353.15 | 0.3103 | -1031.8 | -676.3 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 18.53 | 172.30 | 2.23 | 353.03 | 0.3051 | -413.0 | -380.3 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 19.37 | 171.56 | 1.49 | 355.56 | 0.3178 | -739.0 | -635.7 | |
| 1.54 | 9.22 | 0.80 | 4.79 | 18.35 | 171.31 | 1.23 | 356.10 | 0.3005 | 889.7 | 715.1 | |
| 1.96 | 6.58 | 1.02 | 3.42 | 18.94 | 171.31 | 1.23 | 356.22 | 0.3103 | -854.7 | -818.1 | |
| 0.00 | 3.50 | 0.00 | 1.83 | 19.31 | 171.03 | 0.95 | 357.14 | 0.3162 | -414.0 | -640.3 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 18.26 | 170.78 | 0.70 | 357.76 | 0.2985 | 1064.0 | 964.3 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 18.54 | 170.65 | 0.58 | 358.19 | 0.3030 | 623.0 | 634.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 19.97 | 170.44 | 0.36 | 358.96 | 0.3268 | -1020.0 | -758.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 20.09 | 170.03 | -0.05 | 0.14 | 0.3288 | -850.0 | -655.2 | |
| 1.79 | 2.48 | 0.94 | 1.29 | 19.41 | 169.65 | -0.42 | 1.26 | 0.3175 | 933.6 | 820.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 19.66 | 169.56 | -0.52 | 1.52 | 0.3217 | 709.0 | 627.4 | |
| 0.00 | 2.14 | 0.00 | 1.11 | 19.06 | 169.47 | -0.61 | 1.86 | 0.3119 | 690.0 | 570.1 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 20.59 | 169.24 | -0.84 | 2.33 | 0.3374 | 777.0 | 550.3 | |
| 10.08 | 15.89 | 5.25 | 8.27 | 18.97 | 169.19 | -0.89 | 2.73 | 0.3105 | 1101.8 | 780.9 | |
| 0.00 | 2.48 | 0.00 | 1.29 | 19.28 | 168.84 | -1.24 | 3.72 | 0.3160 | 996.0 | 825.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 20.22 | 168.80 | -1.28 | 3.63 | 0.3315 | 870.0 | 624.5 | |
| 0.00 | 2.39 | 0.00 | 1.24 | 18.81 | 168.37 | -1.70 | 5.25 | 0.3088 | 976.0 | 711.9 | |
| 0.00 | 2.05 | 0.00 | 1.08 | 20.91 | 168.29 | -1.79 | 4.89 | 0.3435 | 912.0 | 710.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 21.63 | 168.18 | -1.89 | 4.98 | 0.3555 | 810.0 | 681.9 | |
| 4.19 | 7.35 | 2.19 | 3.84 | 19.41 | 168.05 | -2.02 | 6.01 | 0.3191 | 978.1 | 735.6 | |
| 0.00 | 0.34 | 0.00 | 0.18 | 20.53 | 168.01 | -2.07 | 5.77 | 0.3378 | 497.0 | 603.2 | |
| 3.67 | 6.83 | 1.93 | 3.58 | 20.06 | 167.79 | -2.28 | 6.53 | 0.3304 | 978.4 | 729.8 | |
| 0.85 | 4.36 | 0.45 | 2.29 | 20.44 | 167.63 | -2.45 | 6.85 | 0.3369 | 811.8 | 806.0 | |
| 3.67 | 34.93 | 1.91 | 18.22 | 18.94 | 167.62 | -2.45 | 7.48 | 0.3123 | 1115.3 | 618.7 | |
| 14.52 | -33.00 | 7.58 | -33.00 | 19.37 | 167.59 | -2.49 | 7.41 | 0.3195 | 1125.1 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 20.56 | 167.53 | -2.54 | 7.06 | 0.3391 | 575.0 | 461.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 20.40 | 167.38 | -2.70 | 7.56 | 0.3369 | 712.0 | 589.3 | |
| 0.00 | 2.39 | 0.00 | 1.25 | 19.06 | 167.18 | -2.89 | 8.74 | 0.3154 | 492.0 | 284.1 | |
| 0.00 | 6.06 | 0.00 | 3.18 | 20.06 | 167.04 | -3.04 | 8.66 | 0.3321 | 960.0 | 712.2 | |
| 0.00 | 4.78 | 0.00 | 2.50 | 19.31 | 166.52 | -3.56 | 10.55 | 0.3213 | 912.0 | 731.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
