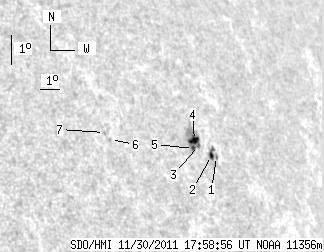

SDO HMI 2011-11-30 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.99 | 32.45 | 8.88 | 28.68 | 18.40 | 223.70 | 54.18 | 291.70 | 0.8300 | -437.4 | -256.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.32 | 18.02 | 224.79 | 55.26 | 291.01 | 0.8392 | -247.0 | -211.8 | |
| 2.22 | 5.12 | 2.00 | 4.62 | 18.06 | 224.53 | 55.00 | 291.10 | 0.8370 | -591.9 | -370.4 | |
| 0.34 | 23.57 | 0.30 | 20.88 | 18.38 | 223.97 | 54.45 | 291.60 | 0.8326 | -509.0 | -335.0 | |
| 5.89 | -3.00 | 5.22 | -3.00 | 18.53 | 223.83 | 54.31 | 291.82 | 0.8316 | -717.4 | 999999 | |
| 1.54 | -3.00 | 1.36 | -3.00 | 18.29 | 223.66 | 54.14 | 291.57 | 0.8296 | -704.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.24 | 18.62 | 219.57 | 50.05 | 293.03 | 0.7916 | 544.0 | 433.3 | |
| 0.00 | 0.77 | 0.00 | 0.62 | 18.84 | 219.37 | 49.84 | 293.36 | 0.7902 | 618.0 | 540.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
