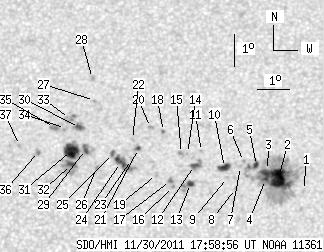

SDO HMI 2011-11-30 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.45 | 280.82 | 36.20 | 146.45 | 18.96 | 171.40 | 1.88 | 354.15 | 0.3150 | 35.5 | -85.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.62 | 18.13 | 174.80 | 5.28 | 343.49 | 0.3089 | -710.0 | -520.9 | |
| 18.28 | 137.85 | 9.52 | 71.81 | 18.53 | 174.03 | 4.51 | 346.12 | 0.3120 | -1365.1 | -549.9 | |
| 1.20 | -2.00 | 0.62 | -2.00 | 18.75 | 173.69 | 4.17 | 347.29 | 0.3142 | -863.6 | 999999 | |
| 1.20 | -2.00 | 0.62 | -2.00 | 18.47 | 173.62 | 4.10 | 347.29 | 0.3095 | -1237.7 | 999999 | |
| 2.73 | -2.00 | 1.43 | -2.00 | 18.90 | 173.35 | 3.83 | 348.40 | 0.3156 | -978.2 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 19.03 | 172.95 | 3.42 | 349.67 | 0.3163 | -724.0 | -613.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 18.87 | 172.85 | 3.33 | 349.87 | 0.3135 | -652.0 | -524.7 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 18.19 | 172.68 | 3.16 | 349.97 | 0.3018 | -803.0 | -594.0 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 18.53 | 172.44 | 2.91 | 350.92 | 0.3068 | -726.0 | -557.9 | |
| 6.49 | 7.43 | 3.38 | 3.87 | 18.84 | 172.35 | 2.83 | 351.35 | 0.3116 | -984.0 | -690.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 19.34 | 171.64 | 2.11 | 353.70 | 0.3183 | -656.0 | -566.0 | |
| 3.59 | 7.00 | 1.87 | 3.65 | 18.91 | 171.41 | 1.89 | 354.21 | 0.3107 | -898.5 | -819.9 | |
| 3.33 | 7.00 | 1.73 | 3.63 | 18.35 | 171.28 | 1.76 | 354.43 | 0.3012 | 835.9 | 835.3 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 19.28 | 171.20 | 1.67 | 354.98 | 0.3166 | -811.0 | -627.1 | |
| 0.00 | 2.56 | 0.00 | 1.34 | 19.28 | 171.01 | 1.49 | 355.54 | 0.3163 | -783.0 | -608.6 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 18.26 | 170.75 | 1.23 | 356.08 | 0.2989 | 1106.0 | 904.5 | |
| 0.00 | 2.31 | 0.00 | 1.20 | 18.44 | 170.66 | 1.14 | 356.41 | 0.3019 | 1071.0 | 858.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 19.97 | 170.45 | 0.93 | 357.32 | 0.3271 | -882.0 | -667.4 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 18.63 | 170.23 | 0.70 | 357.81 | 0.3047 | 387.0 | 271.3 | |
| 0.00 | 2.14 | 0.00 | 1.12 | 20.09 | 170.04 | 0.52 | 358.51 | 0.3289 | -697.0 | -516.6 | |
| 1.37 | 2.82 | 0.71 | 1.47 | 19.44 | 169.66 | 0.14 | 359.58 | 0.3179 | 830.7 | 830.9 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 19.72 | 169.48 | -0.05 | 0.14 | 0.3226 | 742.0 | 591.7 | |
| 0.00 | 1.79 | 0.00 | 0.93 | 19.09 | 169.45 | -0.08 | 0.24 | 0.3122 | 575.0 | 510.8 | |
| 5.47 | 17.25 | 2.85 | 8.99 | 19.00 | 169.10 | -0.42 | 1.29 | 0.3108 | 1139.4 | 901.2 | |
| 1.96 | -24.00 | 1.02 | -24.00 | 19.28 | 168.85 | -0.67 | 2.02 | 0.3155 | 829.9 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 18.84 | 168.35 | -1.17 | 3.61 | 0.3087 | 813.0 | 674.9 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 20.94 | 168.27 | -1.25 | 3.42 | 0.3434 | 939.0 | 736.3 | |
| 0.00 | 2.31 | 0.00 | 1.22 | 21.63 | 168.20 | -1.32 | 3.47 | 0.3548 | 848.0 | 623.7 | |
| 3.93 | 50.30 | 2.05 | 26.24 | 19.40 | 168.00 | -1.52 | 4.53 | 0.3184 | 944.2 | 656.4 | |
| 3.16 | 6.75 | 1.66 | 3.54 | 20.09 | 167.81 | -1.72 | 4.91 | 0.3300 | 1015.1 | 798.6 | |
| 13.67 | -29.00 | 7.14 | -29.00 | 19.37 | 167.57 | -1.96 | 5.83 | 0.3185 | 1138.2 | 999999 | |
| 3.07 | -29.00 | 1.60 | -29.00 | 18.94 | 167.57 | -1.95 | 5.97 | 0.3113 | 1195.3 | 999999 | |
| 0.00 | 6.32 | 0.00 | 3.32 | 20.37 | 167.49 | -2.03 | 5.72 | 0.3351 | 726.0 | 748.2 | |
| 0.00 | 2.22 | 0.00 | 1.16 | 20.06 | 167.37 | -2.16 | 6.17 | 0.3302 | 762.0 | 779.2 | |
| 0.00 | 4.10 | 0.00 | 2.15 | 20.09 | 167.02 | -2.50 | 7.14 | 0.3314 | 863.0 | 761.8 | |
| 0.00 | 2.48 | 0.00 | 1.29 | 19.34 | 166.53 | -2.99 | 8.89 | 0.3202 | 890.0 | 789.8 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 19.53 | 165.93 | -3.59 | 10.52 | 0.3249 | 736.0 | 619.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
