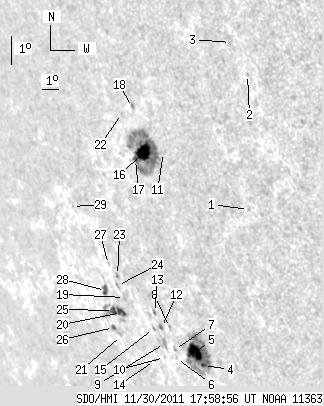

SDO HMI 2011-11-30 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.83 | 212.17 | 51.71 | 223.40 | -20.29 | 110.06 | -59.46 | 113.70 | 0.8838 | 162.8 | 174.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 1.20 | -18.63 | 116.39 | -53.14 | 113.47 | 0.8287 | -487.0 | -363.9 | |
| 0.00 | 0.60 | 0.00 | 0.50 | -14.43 | 117.97 | -51.56 | 108.88 | 0.8039 | -471.0 | -434.1 | |
| 0.00 | 1.45 | 0.00 | 1.21 | -13.45 | 117.43 | -52.09 | 107.56 | 0.8071 | -408.0 | -372.0 | |
| 1.71 | 65.08 | 1.80 | 68.55 | -23.69 | 110.91 | -58.62 | 117.67 | 0.8847 | 605.7 | 305.8 | |
| 14.18 | -4.00 | 15.00 | -4.00 | -23.28 | 110.65 | -58.88 | 117.15 | 0.8857 | 632.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.22 | -23.49 | 109.33 | -60.19 | 117.05 | 0.8954 | 329.0 | 275.1 | |
| 0.00 | 1.54 | 0.00 | 1.69 | -23.20 | 109.42 | -60.10 | 116.76 | 0.8942 | 364.0 | 311.6 | |
| 0.00 | 1.54 | 0.00 | 1.67 | -22.49 | 109.63 | -59.90 | 116.03 | 0.8915 | 526.0 | 374.7 | |
| 0.00 | 4.53 | 0.00 | 5.04 | -23.01 | 108.91 | -60.61 | 116.43 | 0.8975 | 69.0 | 60.9 | |
| 0.00 | 0.85 | 0.00 | 0.96 | -23.47 | 108.55 | -60.97 | 116.84 | 0.9007 | -72.0 | -128.7 | |
| 0.00 | 1.88 | 0.00 | 1.80 | -16.91 | 112.54 | -56.98 | 110.49 | 0.8585 | 59.0 | 72.9 | |
| 1.45 | 2.14 | 1.60 | 2.36 | -22.49 | 109.10 | -60.42 | 115.91 | 0.8952 | 315.2 | 322.4 | |
| 1.11 | 2.31 | 1.22 | 2.54 | -22.01 | 108.99 | -60.53 | 115.36 | 0.8951 | 243.3 | 230.3 | |
| 0.00 | 0.94 | 0.00 | 1.09 | -23.58 | 107.79 | -61.74 | 116.78 | 0.9061 | 47.0 | 71.5 | |
| 0.00 | 1.37 | 0.00 | 1.53 | -22.54 | 108.54 | -60.98 | 115.83 | 0.8992 | -25.0 | -68.8 | |
| 14.86 | 85.15 | 14.72 | 84.33 | -16.93 | 111.37 | -58.15 | 110.25 | 0.8682 | 806.5 | 318.0 | |
| 0.60 | -16.00 | 0.60 | -16.00 | -17.16 | 110.78 | -58.74 | 110.38 | 0.8734 | 228.3 | 999999 | |
| 0.00 | 2.22 | 0.00 | 2.18 | -15.54 | 111.38 | -58.14 | 108.67 | 0.8658 | -186.0 | -98.3 | |
| 0.00 | 2.14 | 0.00 | 2.48 | -21.56 | 107.32 | -62.21 | 114.50 | 0.9059 | -541.0 | -403.8 | |
| 4.53 | 20.33 | 5.37 | 24.57 | -22.05 | 106.73 | -62.80 | 114.90 | 0.9106 | -612.4 | -238.3 | |
| 0.00 | 0.85 | 0.00 | 1.04 | -22.80 | 106.11 | -63.41 | 115.58 | 0.9157 | -653.0 | -559.3 | |
| 0.00 | 1.11 | 0.00 | 1.12 | -15.74 | 110.64 | -58.88 | 108.75 | 0.8722 | 269.0 | 220.6 | |
| 0.00 | 1.96 | 0.00 | 2.26 | -20.86 | 107.36 | -62.17 | 113.75 | 0.9046 | -605.0 | -597.0 | |
| 0.00 | 1.79 | 0.00 | 2.09 | -21.18 | 107.12 | -62.40 | 114.05 | 0.9067 | -388.0 | -374.5 | |
| 3.50 | -20.00 | 4.24 | -20.00 | -22.00 | 106.20 | -63.32 | 114.73 | 0.9139 | -518.4 | 999999 | |
| 1.88 | 2.73 | 2.32 | 3.37 | -22.55 | 105.74 | -63.78 | 115.23 | 0.9176 | -359.0 | -159.9 | |
| 0.00 | 0.77 | 0.00 | 0.89 | -20.52 | 106.99 | -62.54 | 113.30 | 0.9066 | -491.0 | -438.7 | |
| 4.01 | 5.21 | 4.84 | 6.28 | -21.36 | 106.14 | -63.38 | 114.03 | 0.9134 | -483.6 | -421.2 | |
| 0.00 | 1.20 | 0.00 | 1.43 | -18.71 | 105.75 | -63.78 | 111.10 | 0.9125 | -543.0 | -384.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
