SDO HMI 2011-11-30 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.21 | 73.37 | 17.63 | 85.80 | 16.10 | 232.95 | 63.98 | 287.37 | 0.9066 | -408.5 | -2.4 | |
|
previous
or next observation for the same group /

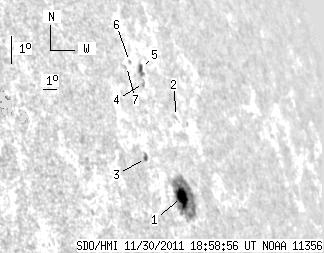

back to the solar disc SDO HMI 2011-11-30 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.36 | 60.38 | 13.23 | 70.78 | 15.52 | 233.06 | 64.09 | 286.72 | 0.9068 | -660.3 | -20.2 | |
| 0.00 | 0.60 | 0.00 | 0.74 | 18.01 | 234.30 | 65.32 | 289.28 | 0.9173 | -241.0 | -210.1 | |
| 1.54 | 2.65 | 1.69 | 2.92 | 16.75 | 231.29 | 62.32 | 288.30 | 0.8950 | -473.3 | -363.8 | |
| 0.00 | 2.31 | 0.00 | 2.69 | 19.06 | 232.63 | 63.66 | 290.66 | 0.9070 | 436.0 | 315.6 | |
| 2.31 | 5.55 | 2.71 | 6.51 | 19.53 | 232.82 | 63.85 | 291.14 | 0.9088 | 472.3 | 399.3 | |
| 0.00 | 1.20 | 0.00 | 1.38 | 19.76 | 232.13 | 63.16 | 291.49 | 0.9044 | -307.0 | -302.4 | |
| 0.00 | 0.68 | 0.00 | 0.78 | 19.60 | 231.82 | 62.84 | 291.38 | 0.9020 | -467.0 | -455.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
