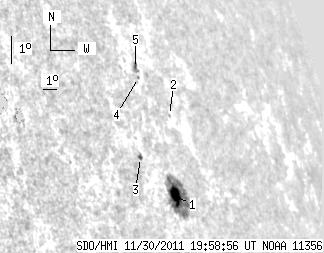

SDO HMI 2011-11-30 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.21 | 66.79 | 14.41 | 79.69 | 15.87 | 233.01 | 64.59 | 287.05 | 0.9106 | -490.7 | -19.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-30 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.76 | 58.68 | 12.78 | 70.09 | 15.51 | 233.07 | 64.65 | 286.65 | 0.9107 | -658.2 | -53.7 | |
| 0.00 | 0.94 | 0.00 | 1.18 | 18.00 | 234.26 | 65.85 | 289.21 | 0.9207 | -223.0 | -222.2 | |
| 1.45 | 2.31 | 1.63 | 2.59 | 16.74 | 231.33 | 62.92 | 288.21 | 0.8994 | -437.1 | -395.6 | |
| 0.00 | 0.85 | 0.00 | 1.02 | 19.20 | 232.82 | 64.41 | 290.71 | 0.9123 | 212.0 | 252.9 | |
| 0.00 | 4.01 | 0.00 | 4.81 | 19.49 | 232.81 | 64.40 | 291.02 | 0.9125 | 591.0 | 457.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
