SDO HMI 2011-11-30 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.71 | 283.61 | 24.94 | 165.40 | 20.22 | 193.00 | 25.68 | 309.45 | 0.5292 | -223.5 | -221.3 | |
|
previous
or next observation for the same group /

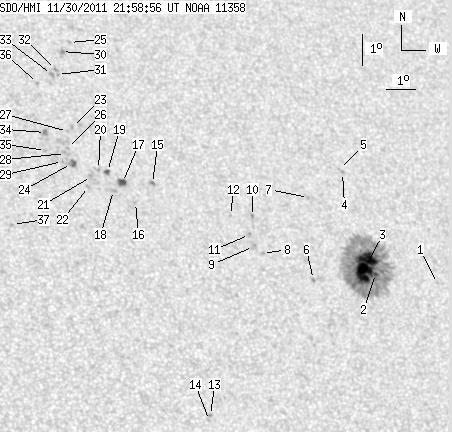

back to the solar disc SDO HMI 2011-11-30 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.62 | 19.02 | 197.14 | 29.83 | 303.56 | 0.5666 | -577.0 | -486.6 | |
| 0.85 | 219.01 | 0.50 | 128.82 | 19.35 | 194.99 | 27.68 | 305.89 | 0.5431 | -769.3 | -394.4 | |
| 34.85 | -2.00 | 20.49 | -2.00 | 19.57 | 194.68 | 27.36 | 306.52 | 0.5411 | -1159.4 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.51 | 22.53 | 194.45 | 27.13 | 311.24 | 0.5624 | -643.0 | -531.0 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 22.63 | 194.36 | 27.05 | 311.46 | 0.5622 | -643.0 | -526.0 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 19.17 | 192.79 | 25.47 | 307.71 | 0.5155 | -767.0 | -647.2 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 21.75 | 193.07 | 25.76 | 311.44 | 0.5406 | -765.0 | -664.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 20.00 | 191.16 | 23.85 | 310.76 | 0.5036 | -772.0 | -614.1 | |
| 0.00 | 3.67 | 0.00 | 2.10 | 20.22 | 190.88 | 23.57 | 311.42 | 0.5025 | -769.0 | -463.0 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 21.16 | 191.01 | 23.69 | 312.76 | 0.5125 | -945.0 | -798.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 20.59 | 190.81 | 23.49 | 312.10 | 0.5050 | -665.0 | -537.7 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 21.19 | 190.25 | 22.94 | 313.68 | 0.5045 | -721.0 | -534.5 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 15.01 | 188.75 | 21.44 | 304.63 | 0.4309 | -999.0 | -787.7 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 14.86 | 188.70 | 21.39 | 304.39 | 0.4290 | -906.0 | -669.5 | |
| 0.00 | 2.39 | 0.00 | 1.36 | 22.22 | 187.74 | 20.43 | 318.37 | 0.4884 | 810.0 | 760.9 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 21.62 | 187.08 | 19.76 | 318.37 | 0.4752 | 741.0 | 617.1 | |
| 4.70 | 4.78 | 2.65 | 2.69 | 22.26 | 186.73 | 19.42 | 319.80 | 0.4786 | 891.8 | 985.0 | |
| 0.00 | 2.65 | 0.00 | 1.49 | 22.01 | 186.39 | 19.08 | 319.91 | 0.4724 | 764.0 | 589.5 | |
| 2.31 | 2.65 | 1.30 | 1.49 | 22.61 | 186.27 | 18.96 | 320.95 | 0.4780 | 735.7 | 706.0 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 22.68 | 185.98 | 18.66 | 321.46 | 0.4759 | 823.0 | 687.8 | |
| 0.00 | 3.67 | 0.00 | 2.06 | 22.45 | 185.71 | 18.40 | 321.54 | 0.4708 | 862.0 | 730.5 | |
| 0.00 | 2.14 | 0.00 | 1.19 | 22.14 | 185.56 | 18.25 | 321.29 | 0.4658 | 817.0 | 649.2 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 24.02 | 185.29 | 17.97 | 324.31 | 0.4852 | 748.0 | 583.0 | |
| 0.00 | 5.38 | 0.00 | 3.02 | 22.87 | 185.09 | 17.78 | 323.04 | 0.4698 | 1006.0 | 848.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 26.78 | 185.61 | 18.30 | 327.28 | 0.5207 | 606.0 | 490.4 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 23.35 | 185.02 | 17.71 | 323.80 | 0.4748 | 701.0 | 640.7 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 23.89 | 185.10 | 17.79 | 324.42 | 0.4820 | 495.0 | 472.3 | |
| 0.00 | 3.16 | 0.00 | 1.77 | 23.19 | 184.93 | 17.62 | 323.71 | 0.4721 | 785.0 | 697.2 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 22.94 | 184.80 | 17.48 | 323.57 | 0.4679 | 998.0 | 828.4 | |
| 0.00 | 2.05 | 0.00 | 1.18 | 26.49 | 185.29 | 17.98 | 327.39 | 0.5145 | 877.0 | 735.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 25.74 | 185.03 | 17.72 | 326.85 | 0.5034 | 884.0 | 750.6 | |
| 0.00 | 1.88 | 0.00 | 1.08 | 25.90 | 184.99 | 17.67 | 327.11 | 0.5050 | 893.0 | 737.6 | |
| 0.00 | 2.65 | 0.00 | 1.51 | 25.74 | 184.82 | 17.51 | 327.15 | 0.5017 | 874.0 | 770.7 | |
| 0.00 | 3.33 | 0.00 | 1.87 | 23.87 | 184.35 | 17.04 | 325.50 | 0.4750 | 863.0 | 779.6 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 23.29 | 184.27 | 16.96 | 324.85 | 0.4673 | 841.0 | 623.9 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 25.45 | 184.30 | 16.99 | 327.56 | 0.4939 | 826.0 | 652.9 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 20.95 | 182.89 | 15.58 | 323.76 | 0.4262 | 828.0 | 700.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
