SDO HMI 2011-12-01 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.18 | 305.63 | 63.68 | 293.69 | -20.83 | 109.63 | -56.03 | 115.15 | 0.8580 | 82.4 | 176.5 | |
|
previous
or next observation for the same group /

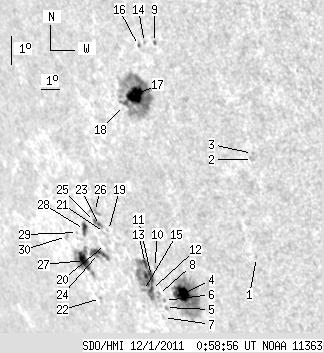

back to the solar disc SDO HMI 2011-12-01 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.94 | -22.02 | 115.31 | -50.35 | 118.31 | 0.8130 | -355.0 | -328.7 | |
| 0.00 | 1.79 | 0.00 | 1.45 | -18.89 | 116.50 | -49.16 | 115.00 | 0.7921 | -592.0 | -546.1 | |
| 0.00 | 1.03 | 0.00 | 0.83 | -18.70 | 116.57 | -49.08 | 114.80 | 0.7908 | -536.0 | -391.7 | |
| 10.94 | 85.44 | 10.39 | 80.97 | -23.24 | 110.76 | -54.90 | 118.21 | 0.8552 | 891.3 | 367.1 | |
| 0.00 | 1.20 | 0.00 | 1.18 | -23.72 | 109.42 | -56.24 | 118.34 | 0.8668 | 476.0 | 416.0 | |
| 0.00 | 1.03 | 0.00 | 1.01 | -23.49 | 109.51 | -56.15 | 118.11 | 0.8656 | 500.0 | 474.8 | |
| 0.00 | 1.20 | 0.00 | 1.19 | -24.05 | 109.08 | -56.58 | 118.61 | 0.8702 | 420.0 | 308.6 | |
| 0.00 | 2.56 | 0.00 | 2.53 | -23.30 | 109.29 | -56.37 | 117.83 | 0.8669 | 465.0 | 334.8 | |
| 0.00 | 1.54 | 0.00 | 1.31 | -15.30 | 113.03 | -52.63 | 109.63 | 0.8161 | -295.0 | -231.5 | |
| 0.00 | 1.20 | 0.00 | 1.16 | -22.42 | 109.61 | -56.05 | 116.95 | 0.8623 | 535.0 | 416.5 | |
| 3.93 | 40.41 | 3.86 | 40.13 | -22.72 | 109.25 | -56.41 | 117.18 | 0.8658 | 636.5 | -28.2 | |
| 2.05 | -11.00 | 2.04 | -11.00 | -23.14 | 108.98 | -56.68 | 117.57 | 0.8689 | 409.5 | 999999 | |
| 2.56 | -11.00 | 2.52 | -11.00 | -22.30 | 109.17 | -56.49 | 116.69 | 0.8655 | 389.8 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.66 | -15.31 | 112.52 | -53.14 | 109.51 | 0.8210 | -249.0 | -160.2 | |
| 0.00 | 1.71 | 0.00 | 1.72 | -23.18 | 108.48 | -57.18 | 117.48 | 0.8728 | -382.0 | -391.9 | |
| 0.34 | 1.88 | 0.30 | 1.63 | -15.40 | 112.17 | -53.49 | 109.54 | 0.8244 | -228.0 | -155.9 | |
| 15.64 | 98.17 | 14.00 | 87.87 | -16.96 | 111.34 | -54.32 | 111.17 | 0.8354 | 856.2 | 349.0 | |
| 0.43 | -17.00 | 0.39 | -17.00 | -17.28 | 110.66 | -55.00 | 111.37 | 0.8421 | 165.4 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.78 | -21.27 | 107.62 | -58.04 | 115.12 | 0.8753 | -428.0 | -459.8 | |
| 0.00 | 1.28 | 0.00 | 1.33 | -21.72 | 107.14 | -58.52 | 115.51 | 0.8798 | -275.0 | -286.4 | |
| 0.00 | 0.94 | 0.00 | 0.96 | -21.33 | 107.33 | -58.33 | 115.13 | 0.8776 | -408.0 | -458.6 | |
| 0.00 | 0.85 | 0.00 | 0.94 | -23.48 | 105.58 | -60.08 | 117.05 | 0.8945 | 284.0 | 207.2 | |
| 1.54 | 5.30 | 1.58 | 5.46 | -21.11 | 107.17 | -58.49 | 114.84 | 0.8784 | -601.5 | -523.4 | |
| 11.02 | 14.18 | 11.64 | 14.97 | -22.02 | 106.51 | -59.15 | 115.68 | 0.8851 | -623.2 | -398.9 | |
| 1.03 | -23.00 | 1.06 | -23.00 | -20.99 | 106.94 | -58.72 | 114.65 | 0.8799 | -347.3 | 999999 | |
| 0.00 | 4.36 | 0.00 | 4.47 | -20.67 | 107.14 | -58.52 | 114.34 | 0.8777 | -689.0 | -594.9 | |
| 9.74 | 26.57 | 10.64 | 29.10 | -22.26 | 105.45 | -60.21 | 115.69 | 0.8932 | -498.3 | -86.5 | |
| 4.96 | 6.92 | 5.26 | 7.34 | -21.26 | 106.14 | -59.52 | 114.75 | 0.8863 | -488.3 | -365.0 | |
| 0.00 | 0.94 | 0.00 | 1.02 | -21.36 | 105.63 | -60.03 | 114.74 | 0.8903 | -40.0 | -130.0 | |
| 0.00 | 2.48 | 0.00 | 2.74 | -21.50 | 104.82 | -60.84 | 114.71 | 0.8963 | -550.0 | -391.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
