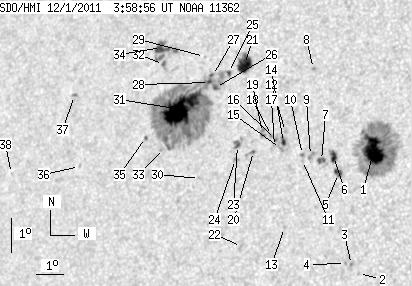

SDO HMI 2011-12-01 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.12 | 578.54 | 81.36 | 355.57 | 8.18 | 128.39 | -35.63 | 77.34 | 0.5923 | 7.9 | 47.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-01 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.11 | 165.45 | 18.06 | 95.98 | 7.33 | 133.10 | -30.92 | 77.40 | 0.5243 | -1174.5 | -430.4 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 3.67 | 132.79 | -31.23 | 84.43 | 0.5219 | -739.0 | -524.4 | |
| 0.00 | 1.71 | 0.00 | 0.99 | 3.94 | 132.53 | -31.48 | 83.97 | 0.5260 | -884.0 | -733.0 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 3.97 | 132.32 | -31.69 | 83.95 | 0.5291 | -706.0 | -599.6 | |
| 4.61 | 5.21 | 2.71 | 3.06 | 6.63 | 131.92 | -32.09 | 79.06 | 0.5396 | -849.0 | -859.9 | |
| 4.27 | 7.26 | 2.52 | 4.28 | 7.14 | 131.71 | -32.31 | 78.20 | 0.5439 | -942.5 | -696.3 | |
| 0.00 | 4.19 | 0.00 | 2.48 | 7.01 | 131.29 | -32.72 | 78.54 | 0.5496 | -776.0 | -735.4 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 9.75 | 130.74 | -33.27 | 73.88 | 0.5650 | -744.0 | -632.5 | |
| 0.00 | 3.59 | 0.00 | 2.13 | 7.16 | 130.89 | -33.12 | 78.40 | 0.5557 | -625.0 | -646.1 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 7.19 | 130.60 | -33.41 | 78.43 | 0.5598 | -770.0 | -589.2 | |
| 0.00 | 1.37 | 0.00 | 0.82 | 7.01 | 130.62 | -33.40 | 78.74 | 0.5592 | -571.0 | -328.7 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 7.87 | 129.93 | -34.08 | 77.44 | 0.5709 | -754.0 | -547.9 | |
| 0.00 | 1.20 | 0.00 | 0.72 | 5.01 | 130.11 | -33.90 | 82.40 | 0.5627 | -515.0 | -398.9 | |
| 2.56 | 3.50 | 1.54 | 2.11 | 7.54 | 129.89 | -34.12 | 78.02 | 0.5707 | -751.1 | -677.5 | |
| 0.00 | 2.91 | 0.00 | 1.75 | 7.36 | 129.80 | -34.22 | 78.35 | 0.5716 | -716.0 | -575.0 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 7.62 | 129.59 | -34.42 | 77.95 | 0.5751 | -765.0 | -626.4 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 7.42 | 129.58 | -34.44 | 78.32 | 0.5749 | -660.0 | -566.3 | |
| 0.00 | 1.37 | 0.00 | 0.83 | 7.74 | 129.44 | -34.58 | 77.79 | 0.5776 | -591.0 | -512.4 | |
| 0.00 | 4.10 | 0.00 | 2.49 | 7.83 | 129.10 | -34.91 | 77.74 | 0.5825 | -534.0 | -536.3 | |
| 1.20 | 3.67 | 0.73 | 2.24 | 7.26 | 128.83 | -35.19 | 78.78 | 0.5850 | -691.3 | -630.6 | |
| 17.35 | 20.42 | 10.72 | 12.62 | 9.85 | 128.21 | -35.80 | 74.64 | 0.5999 | -845.1 | -471.9 | |
| 0.00 | 3.25 | 0.00 | 1.98 | 4.44 | 128.59 | -35.42 | 83.64 | 0.5837 | -291.0 | -301.2 | |
| 0.94 | 5.73 | 0.58 | 3.52 | 7.43 | 128.22 | -35.79 | 78.64 | 0.5938 | -882.9 | -664.2 | |
| 0.00 | 2.73 | 0.00 | 1.68 | 7.02 | 128.19 | -35.83 | 79.35 | 0.5934 | -717.0 | -553.4 | |
| 1.54 | 294.91 | 0.96 | 186.59 | 9.61 | 127.65 | -36.36 | 75.22 | 0.6069 | -491.3 | 369.1 | |
| 1.71 | -25.00 | 1.07 | -25.00 | 9.15 | 127.22 | -36.79 | 76.09 | 0.6115 | 980.0 | 999999 | |
| 0.26 | -25.00 | 0.16 | -25.00 | 9.51 | 127.06 | -36.95 | 75.56 | 0.6145 | 210.7 | 999999 | |
| 1.03 | -25.00 | 0.64 | -25.00 | 9.30 | 126.98 | -37.04 | 75.93 | 0.6151 | 843.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 10.08 | 126.69 | -37.33 | 74.78 | 0.6210 | -335.0 | -139.1 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 6.44 | 126.90 | -37.11 | 80.58 | 0.6101 | -605.0 | -516.9 | |
| 54.95 | -25.00 | 34.84 | -25.00 | 8.49 | 125.98 | -38.04 | 77.50 | 0.6265 | 1190.7 | 999999 | |
| 1.28 | 3.59 | 0.82 | 2.31 | 9.82 | 125.15 | -38.86 | 75.63 | 0.6405 | 817.0 | 692.2 | |
| 0.00 | 2.73 | 0.00 | 1.74 | 7.32 | 125.46 | -38.56 | 79.47 | 0.6311 | -78.0 | 12.6 | |
| 9.31 | 24.01 | 6.01 | 15.48 | 10.33 | 125.00 | -39.01 | 74.90 | 0.6437 | 678.8 | 665.0 | |
| 0.00 | 1.37 | 0.00 | 0.88 | 7.64 | 124.73 | -39.28 | 79.12 | 0.6413 | 684.0 | 533.5 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 6.75 | 122.23 | -41.78 | 80.92 | 0.6724 | 582.0 | 448.2 | |
| 0.00 | 2.05 | 0.00 | 1.38 | 8.86 | 121.77 | -42.25 | 77.90 | 0.6817 | 848.0 | 660.5 | |
| 0.00 | 0.85 | 0.00 | 0.60 | 6.51 | 119.47 | -44.54 | 81.67 | 0.7067 | 626.0 | 456.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
