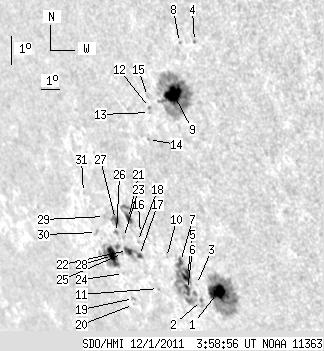

SDO HMI 2011-12-01 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.53 | 324.59 | 70.17 | 300.60 | -20.84 | 109.40 | -54.61 | 115.54 | 0.8462 | 150.7 | 145.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-01 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.50 | 85.37 | 12.34 | 77.64 | -23.27 | 110.64 | -53.37 | 118.71 | 0.8427 | 830.2 | 407.3 | |
| 0.94 | 3.25 | 0.88 | 3.06 | -23.55 | 109.60 | -54.42 | 118.69 | 0.8520 | 397.0 | 423.0 | |
| 0.00 | 0.51 | 0.00 | 0.48 | -23.03 | 109.63 | -54.38 | 118.11 | 0.8503 | 479.0 | 476.8 | |
| 0.00 | 1.20 | 0.00 | 0.98 | -15.33 | 113.07 | -50.94 | 110.10 | 0.7997 | -368.0 | -340.6 | |
| 6.58 | 48.03 | 6.20 | 45.64 | -22.74 | 109.30 | -54.71 | 117.69 | 0.8523 | 610.7 | -77.2 | |
| 3.42 | -5.00 | 3.25 | -5.00 | -23.20 | 109.02 | -54.99 | 118.12 | 0.8557 | 283.2 | 999999 | |
| 3.16 | -5.00 | 2.98 | -5.00 | -22.29 | 109.18 | -54.84 | 117.14 | 0.8522 | 408.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.86 | -15.37 | 112.32 | -51.70 | 109.94 | 0.8072 | -416.0 | -296.2 | |
| 20.68 | 102.12 | 17.78 | 87.76 | -16.96 | 111.42 | -52.60 | 111.60 | 0.8195 | 873.4 | 341.9 | |
| 0.00 | 0.85 | 0.00 | 0.82 | -22.17 | 108.46 | -55.56 | 116.80 | 0.8577 | 66.0 | 11.7 | |
| 0.00 | 1.03 | 0.00 | 1.02 | -23.19 | 107.36 | -56.66 | 117.62 | 0.8687 | -129.0 | -37.9 | |
| 0.00 | 1.03 | 0.00 | 0.91 | -17.41 | 109.97 | -54.04 | 111.75 | 0.8337 | 461.0 | 391.8 | |
| 0.00 | 1.28 | 0.00 | 1.15 | -17.57 | 109.90 | -54.11 | 111.92 | 0.8347 | 412.0 | 284.6 | |
| 0.00 | 1.11 | 0.00 | 1.01 | -18.42 | 109.46 | -54.55 | 112.79 | 0.8405 | -355.0 | -343.0 | |
| 0.00 | 1.03 | 0.00 | 0.91 | -17.07 | 110.01 | -54.00 | 111.36 | 0.8326 | 376.0 | 252.8 | |
| 0.00 | 0.85 | 0.00 | 0.84 | -21.42 | 107.41 | -56.60 | 115.66 | 0.8643 | -466.0 | -415.8 | |
| 2.31 | 14.53 | 2.30 | 14.61 | -22.13 | 106.92 | -57.10 | 116.32 | 0.8697 | -567.0 | -452.5 | |
| 0.00 | 1.03 | 0.00 | 1.01 | -21.68 | 107.08 | -56.93 | 115.86 | 0.8675 | -494.0 | -430.4 | |
| 0.00 | 2.05 | 0.00 | 2.14 | -23.54 | 105.61 | -58.41 | 117.53 | 0.8826 | 191.0 | 73.6 | |
| 0.00 | 0.60 | 0.00 | 0.63 | -23.74 | 105.46 | -58.55 | 117.71 | 0.8840 | -8.0 | 41.3 | |
| 4.02 | 12.65 | 3.96 | 12.45 | -20.95 | 107.00 | -57.02 | 115.02 | 0.8666 | -618.0 | -535.3 | |
| 4.10 | -17.00 | 4.15 | -17.00 | -21.98 | 106.30 | -57.72 | 115.99 | 0.8742 | -685.6 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.38 | -21.57 | 106.32 | -57.69 | 115.53 | 0.8731 | -660.0 | -526.8 | |
| 0.00 | 0.85 | 0.00 | 0.89 | -22.73 | 105.55 | -58.46 | 116.63 | 0.8813 | -591.0 | -482.0 | |
| 0.00 | 1.03 | 0.00 | 1.05 | -22.08 | 105.93 | -58.09 | 116.01 | 0.8772 | -376.0 | -349.0 | |
| 1.20 | 2.39 | 1.22 | 2.43 | -21.41 | 106.00 | -58.02 | 115.28 | 0.8753 | -396.4 | -327.6 | |
| 4.02 | 7.18 | 4.05 | 7.24 | -20.99 | 106.20 | -57.81 | 114.86 | 0.8729 | -570.9 | -464.1 | |
| 10.60 | 28.37 | 11.06 | 29.67 | -22.16 | 105.26 | -58.75 | 115.92 | 0.8823 | -547.4 | -97.1 | |
| 0.00 | 1.20 | 0.00 | 1.23 | -20.91 | 105.59 | -58.43 | 114.61 | 0.8774 | -221.0 | -194.1 | |
| 0.00 | 2.05 | 0.00 | 2.16 | -21.43 | 104.76 | -59.26 | 114.99 | 0.8847 | -516.0 | -423.9 | |
| 0.00 | 0.60 | 0.00 | 0.63 | -20.16 | 104.76 | -59.25 | 113.59 | 0.8823 | -548.0 | -449.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
