SDO HMI 2011-12-01 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.29 | 246.73 | 41.87 | 130.45 | 18.94 | 171.89 | 9.52 | 333.52 | 0.3515 | -140.9 | -164.8 | |
|
previous
or next observation for the same group /

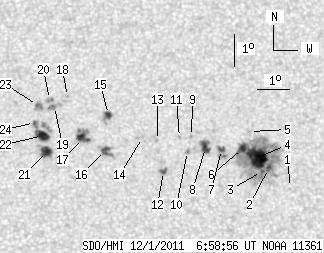

back to the solar disc SDO HMI 2011-12-01 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.14 | 17.71 | 175.10 | 12.72 | 324.10 | 0.3593 | 411.0 | 479.0 | |
| 2.73 | 135.36 | 1.45 | 71.88 | 18.30 | 174.44 | 12.06 | 326.49 | 0.3609 | -874.2 | -511.6 | |
| 0.77 | -2.00 | 0.41 | -2.00 | 18.21 | 174.21 | 11.83 | 326.83 | 0.3576 | -991.7 | 999999 | |
| 25.30 | -2.00 | 13.43 | -2.00 | 18.65 | 174.11 | 11.73 | 327.74 | 0.3626 | -1321.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 19.46 | 173.91 | 11.54 | 329.38 | 0.3719 | -648.0 | -508.5 | |
| 3.67 | -2.00 | 1.95 | -2.00 | 18.93 | 173.65 | 11.28 | 329.17 | 0.3625 | -1096.1 | 999999 | |
| 2.91 | 8.12 | 1.54 | 4.30 | 18.90 | 172.98 | 10.61 | 330.63 | 0.3566 | -1008.4 | -887.5 | |
| 6.49 | 9.83 | 3.44 | 5.20 | 18.96 | 172.48 | 10.10 | 331.88 | 0.3535 | -1153.7 | -842.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 19.31 | 172.05 | 9.68 | 333.35 | 0.3552 | -836.0 | -645.3 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 18.84 | 171.90 | 9.52 | 333.08 | 0.3473 | -946.0 | -807.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 19.28 | 171.67 | 9.29 | 334.21 | 0.3520 | -705.0 | -621.7 | |
| 2.39 | 3.76 | 1.26 | 1.97 | 18.22 | 171.11 | 8.73 | 334.18 | 0.3325 | 955.3 | 815.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 19.18 | 170.97 | 8.59 | 335.80 | 0.3458 | -858.0 | -724.9 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 19.28 | 170.50 | 8.12 | 337.09 | 0.3441 | -255.0 | -283.2 | |
| 3.59 | 7.18 | 1.90 | 3.79 | 20.00 | 169.46 | 7.08 | 340.52 | 0.3488 | 881.8 | 865.5 | |
| 4.87 | 10.34 | 2.56 | 5.42 | 18.88 | 169.31 | 6.94 | 339.69 | 0.3308 | 1011.7 | 722.5 | |
| 6.75 | 14.01 | 3.54 | 7.36 | 19.25 | 168.60 | 6.23 | 341.99 | 0.3327 | 1129.1 | 794.3 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 20.56 | 168.18 | 5.80 | 344.29 | 0.3513 | 673.0 | 522.1 | |
| 0.00 | 5.90 | 0.00 | 3.11 | 20.25 | 167.76 | 5.38 | 345.14 | 0.3445 | 958.0 | 887.6 | |
| 0.00 | 3.59 | 0.00 | 1.89 | 20.47 | 167.61 | 5.23 | 345.71 | 0.3474 | 728.0 | 677.5 | |
| 8.20 | 12.05 | 4.29 | 6.30 | 18.85 | 167.46 | 5.08 | 344.79 | 0.3209 | 1124.6 | 750.6 | |
| 9.40 | 22.13 | 4.93 | 11.61 | 19.34 | 167.35 | 4.97 | 345.51 | 0.3284 | 1167.0 | 734.9 | |
| 0.68 | 5.30 | 0.36 | 2.79 | 20.28 | 167.22 | 4.84 | 346.58 | 0.3429 | 886.9 | 900.2 | |
| 1.54 | -22.00 | 0.81 | -22.00 | 19.75 | 167.11 | 4.73 | 346.49 | 0.3340 | 872.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
