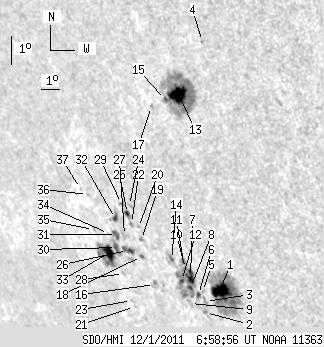

SDO HMI 2011-12-01 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.21 | 346.63 | 74.63 | 310.11 | -21.01 | 109.26 | -53.12 | 116.17 | 0.8338 | 124.4 | 142.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-01 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.38 | 90.76 | 13.54 | 79.53 | -23.23 | 110.63 | -51.75 | 119.19 | 0.8289 | 819.0 | 381.6 | |
| 0.00 | 1.97 | 0.00 | 1.79 | -23.96 | 109.47 | -52.91 | 119.63 | 0.8408 | 505.0 | 372.9 | |
| 0.00 | 2.91 | 0.00 | 2.62 | -23.60 | 109.68 | -52.70 | 119.29 | 0.8380 | 364.0 | 340.4 | |
| 0.00 | 1.20 | 0.00 | 0.95 | -15.35 | 113.16 | -49.22 | 110.60 | 0.7824 | -176.0 | -318.2 | |
| 0.00 | 1.28 | 0.00 | 1.15 | -23.27 | 109.70 | -52.67 | 118.93 | 0.8368 | 694.0 | 514.8 | |
| 1.54 | 2.91 | 1.39 | 2.63 | -23.38 | 109.43 | -52.94 | 118.96 | 0.8394 | 375.6 | 214.9 | |
| 7.43 | 40.85 | 6.72 | 37.28 | -22.80 | 109.33 | -53.04 | 118.26 | 0.8385 | 646.3 | -67.7 | |
| 1.97 | -7.00 | 1.79 | -7.00 | -23.15 | 109.13 | -53.25 | 118.60 | 0.8413 | 293.7 | 999999 | |
| 0.00 | 3.59 | 0.00 | 3.31 | -23.68 | 108.82 | -53.56 | 119.10 | 0.8453 | -300.0 | -296.1 | |
| 0.26 | -7.00 | 0.23 | -7.00 | -22.54 | 109.21 | -53.17 | 117.93 | 0.8389 | 466.0 | 999999 | |
| 2.56 | 3.76 | 2.31 | 3.40 | -22.31 | 109.23 | -53.15 | 117.68 | 0.8381 | 489.9 | 192.6 | |
| 0.85 | -7.00 | 0.78 | -7.00 | -22.93 | 108.77 | -53.61 | 118.24 | 0.8436 | 98.4 | 999999 | |
| 18.72 | 102.80 | 15.52 | 85.18 | -17.01 | 111.42 | -50.96 | 112.12 | 0.8040 | 887.3 | 351.1 | |
| 1.37 | 4.36 | 1.25 | 3.99 | -22.26 | 108.61 | -53.77 | 117.42 | 0.8431 | 364.1 | 212.5 | |
| 1.97 | -13.00 | 1.66 | -13.00 | -17.18 | 110.71 | -51.67 | 112.11 | 0.8112 | 253.9 | 999999 | |
| 0.00 | 3.08 | 0.00 | 2.94 | -23.08 | 107.18 | -55.20 | 117.92 | 0.8570 | -821.0 | -570.0 | |
| 0.00 | 1.62 | 0.00 | 1.39 | -17.40 | 109.91 | -52.47 | 112.15 | 0.8193 | 530.0 | 393.9 | |
| 1.37 | 1.54 | 1.30 | 1.46 | -22.18 | 106.99 | -55.39 | 116.85 | 0.8563 | -593.1 | -515.0 | |
| 0.00 | 1.37 | 0.00 | 1.29 | -21.64 | 107.31 | -55.07 | 116.32 | 0.8523 | -487.0 | -487.9 | |
| 0.00 | 0.51 | 0.00 | 0.48 | -21.25 | 107.36 | -55.02 | 115.90 | 0.8510 | -695.0 | -636.2 | |
| 0.00 | 0.85 | 0.00 | 0.86 | -23.82 | 105.54 | -56.84 | 118.26 | 0.8715 | 313.0 | 266.3 | |
| 0.00 | 1.62 | 0.00 | 1.53 | -21.13 | 107.04 | -55.34 | 115.66 | 0.8533 | -581.0 | -522.7 | |
| 0.00 | 0.77 | 0.00 | 0.77 | -23.63 | 105.49 | -56.89 | 118.03 | 0.8714 | 183.0 | 145.0 | |
| 0.00 | 1.79 | 0.00 | 1.68 | -20.55 | 107.24 | -55.13 | 115.07 | 0.8503 | -656.0 | -576.1 | |
| 2.56 | 4.44 | 2.42 | 4.19 | -20.81 | 106.99 | -55.39 | 115.29 | 0.8530 | -547.2 | -526.1 | |
| 5.64 | 8.63 | 5.46 | 8.33 | -22.00 | 106.30 | -56.08 | 116.44 | 0.8614 | -649.6 | -501.7 | |
| 0.00 | 4.87 | 0.00 | 4.68 | -21.52 | 106.41 | -55.96 | 115.93 | 0.8593 | -642.0 | -526.6 | |
| 0.00 | 1.97 | 0.00 | 1.95 | -22.75 | 105.60 | -56.78 | 117.09 | 0.8686 | -514.0 | -456.6 | |
| 1.37 | 1.97 | 1.29 | 1.86 | -20.50 | 106.83 | -55.55 | 114.89 | 0.8536 | -613.0 | -436.7 | |
| 4.61 | 45.98 | 4.54 | 45.82 | -21.91 | 105.71 | -56.66 | 116.18 | 0.8658 | -563.8 | -97.7 | |
| 4.27 | -30.00 | 4.16 | -30.00 | -21.49 | 105.97 | -56.41 | 115.78 | 0.8628 | -582.4 | 999999 | |
| 1.45 | 4.70 | 1.40 | 4.53 | -20.98 | 106.21 | -56.16 | 115.27 | 0.8597 | -620.5 | -473.1 | |
| 8.89 | -30.00 | 8.87 | -30.00 | -22.08 | 105.20 | -57.18 | 116.23 | 0.8702 | -539.9 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.18 | -21.47 | 105.52 | -56.86 | 115.63 | 0.8663 | -173.0 | -276.4 | |
| 0.00 | 1.54 | 0.00 | 1.55 | -21.35 | 104.70 | -57.68 | 115.29 | 0.8725 | -463.0 | -453.3 | |
| 0.00 | 0.85 | 0.00 | 0.85 | -20.24 | 105.02 | -57.36 | 114.12 | 0.8677 | -559.0 | -459.5 | |
| 0.00 | 0.94 | 0.00 | 0.94 | -20.05 | 104.71 | -57.66 | 113.83 | 0.8698 | -586.0 | -438.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
