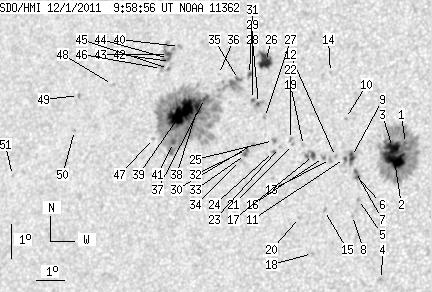

SDO HMI 2011-12-01 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.44 | 582.78 | 58.60 | 344.58 | 8.15 | 128.36 | -32.38 | 76.29 | 0.5469 | -134.6 | 79.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-01 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.94 | 163.36 | 0.53 | 91.64 | 7.62 | 133.63 | -27.11 | 75.24 | 0.4691 | -852.2 | -463.3 | |
| 18.28 | -1.00 | 10.26 | -1.00 | 7.11 | 133.29 | -27.45 | 76.45 | 0.4725 | -1233.0 | 999999 | |
| 10.17 | -1.00 | 5.72 | -1.00 | 7.49 | 133.20 | -27.54 | 75.69 | 0.4751 | -1026.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 3.58 | 133.03 | -27.71 | 83.99 | 0.4686 | -752.0 | -720.5 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 5.94 | 132.15 | -28.59 | 79.28 | 0.4864 | -722.0 | -581.9 | |
| 0.85 | 4.36 | 0.48 | 2.47 | 6.62 | 132.07 | -28.67 | 77.92 | 0.4893 | -1029.0 | -852.0 | |
| 0.68 | -6.00 | 0.39 | -6.00 | 6.77 | 132.00 | -28.74 | 77.65 | 0.4909 | -1015.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 5.47 | 131.97 | -28.77 | 80.30 | 0.4880 | -785.0 | -626.4 | |
| 3.08 | 15.04 | 1.75 | 8.56 | 7.22 | 131.83 | -28.91 | 76.82 | 0.4946 | -1040.0 | -634.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 8.35 | 131.54 | -29.20 | 74.71 | 0.5025 | -749.0 | -657.1 | |
| 0.94 | -9.00 | 0.54 | -9.00 | 7.16 | 131.60 | -29.14 | 77.03 | 0.4979 | -732.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 7.21 | 131.28 | -29.46 | 77.03 | 0.5027 | -903.0 | -657.4 | |
| 0.00 | 2.39 | 0.00 | 1.37 | 7.12 | 131.12 | -29.62 | 77.27 | 0.5049 | -798.0 | -640.7 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 9.72 | 130.90 | -29.84 | 72.39 | 0.5167 | -662.0 | -589.7 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 5.61 | 131.01 | -29.73 | 80.29 | 0.5028 | -669.0 | -529.8 | |
| 0.00 | 2.14 | 0.00 | 1.23 | 7.18 | 130.87 | -29.87 | 77.25 | 0.5086 | -875.0 | -679.2 | |
| 2.48 | 7.01 | 1.43 | 4.04 | 7.24 | 130.53 | -30.22 | 77.26 | 0.5139 | -844.2 | -706.9 | |
| 0.00 | 0.68 | 0.00 | 0.39 | 4.33 | 130.66 | -30.08 | 82.90 | 0.5057 | -864.0 | -677.5 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 7.53 | 130.16 | -30.58 | 76.83 | 0.5201 | -545.0 | -437.1 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 5.39 | 130.16 | -30.58 | 80.93 | 0.5150 | -699.0 | -536.1 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 7.56 | 129.77 | -30.97 | 76.92 | 0.5258 | -586.0 | -476.4 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 7.71 | 129.69 | -31.05 | 76.67 | 0.5274 | -599.0 | -524.2 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 7.47 | 129.33 | -31.41 | 77.25 | 0.5320 | -695.0 | -657.6 | |
| 0.00 | 1.79 | 0.00 | 1.05 | 7.35 | 129.13 | -31.62 | 77.54 | 0.5346 | -820.0 | -659.9 | |
| 0.00 | 2.05 | 0.00 | 1.20 | 7.67 | 129.10 | -31.64 | 76.94 | 0.5359 | -718.0 | -659.8 | |
| 12.73 | 18.45 | 7.54 | 10.94 | 10.03 | 128.59 | -32.15 | 72.89 | 0.5505 | -927.9 | -604.4 | |
| 0.00 | 1.79 | 0.00 | 1.06 | 8.36 | 128.72 | -32.02 | 75.83 | 0.5432 | -547.0 | -258.2 | |
| 1.37 | 5.55 | 0.81 | 3.29 | 8.77 | 128.47 | -32.27 | 75.17 | 0.5480 | 822.9 | 626.7 | |
| 0.34 | -28.00 | 0.20 | -28.00 | 8.89 | 128.25 | -32.49 | 75.05 | 0.5515 | 868.0 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.06 | 7.55 | 128.37 | -32.37 | 77.41 | 0.5460 | -809.0 | -659.6 | |
| 1.54 | 2.90 | 0.92 | 1.73 | 9.64 | 128.06 | -32.68 | 73.80 | 0.5565 | -555.9 | -396.4 | |
| 1.11 | 3.67 | 0.66 | 2.17 | 7.40 | 128.17 | -32.57 | 77.75 | 0.5485 | -641.4 | -655.4 | |
| 0.68 | -32.00 | 0.40 | -32.00 | 7.25 | 128.15 | -32.59 | 78.02 | 0.5484 | -733.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 7.07 | 127.98 | -32.76 | 78.39 | 0.5503 | -664.0 | -502.1 | |
| 1.97 | 303.99 | 1.17 | 184.65 | 9.48 | 127.68 | -33.06 | 74.22 | 0.5613 | -458.3 | 416.6 | |
| 0.00 | 0.68 | 0.00 | 0.41 | 9.63 | 126.95 | -33.79 | 74.25 | 0.5720 | -439.0 | -373.9 | |
| 0.85 | -35.00 | 0.52 | -35.00 | 8.91 | 126.52 | -34.22 | 75.64 | 0.5757 | 1006.2 | 999999 | |
| 3.84 | -35.00 | 2.33 | -35.00 | 8.60 | 126.30 | -34.44 | 76.22 | 0.5780 | 1369.0 | 999999 | |
| 32.98 | -35.00 | 20.11 | -35.00 | 8.48 | 125.73 | -35.01 | 76.61 | 0.5856 | 1135.8 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.16 | 10.45 | 125.42 | -35.32 | 73.43 | 0.5954 | 878.0 | 739.0 | |
| 1.88 | -35.00 | 1.15 | -35.00 | 7.58 | 125.53 | -35.22 | 78.18 | 0.5862 | 390.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 10.00 | 125.15 | -35.59 | 74.27 | 0.5977 | 511.0 | 631.0 | |
| 2.39 | 14.87 | 1.48 | 9.19 | 10.21 | 125.05 | -35.69 | 73.97 | 0.5997 | 791.1 | 629.5 | |
| 0.34 | -43.00 | 0.21 | -43.00 | 10.09 | 125.06 | -35.68 | 74.16 | 0.5991 | 941.8 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.00 | 9.79 | 125.10 | -35.64 | 74.64 | 0.5978 | 947.0 | 832.5 | |
| 0.00 | 2.56 | 0.00 | 1.59 | 9.79 | 124.84 | -35.90 | 74.73 | 0.6013 | 629.0 | 532.3 | |
| 0.00 | 1.37 | 0.00 | 0.84 | 7.70 | 124.78 | -35.96 | 78.19 | 0.5968 | 476.0 | 388.7 | |
| 0.00 | 1.37 | 0.00 | 0.86 | 9.29 | 123.07 | -37.68 | 76.08 | 0.6237 | 725.0 | 544.1 | |
| 0.00 | 1.37 | 0.00 | 0.88 | 8.95 | 121.81 | -38.93 | 76.95 | 0.6395 | 709.0 | 588.8 | |
| 0.00 | 1.20 | 0.00 | 0.77 | 7.91 | 121.78 | -38.96 | 78.58 | 0.6377 | 619.0 | 475.5 | |
| 0.00 | 1.20 | 0.00 | 0.79 | 6.55 | 119.50 | -41.24 | 81.10 | 0.6652 | 611.0 | 437.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
