SDO HMI 2011-12-01 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.55 | 361.71 | 76.04 | 313.11 | -21.08 | 109.08 | -51.67 | 116.71 | 0.8211 | 93.1 | 128.7 | |
|
previous
or next observation for the same group /

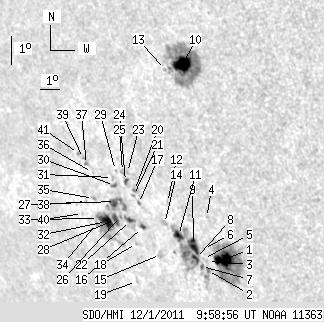

back to the solar disc SDO HMI 2011-12-01 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.81 | 86.81 | 13.41 | 73.37 | -23.21 | 110.70 | -50.05 | 119.78 | 0.8139 | 834.8 | 396.4 | |
| 1.11 | 8.46 | 0.96 | 7.39 | -23.58 | 109.68 | -51.06 | 119.84 | 0.8239 | 521.9 | 380.9 | |
| 0.00 | 0.77 | 0.00 | 0.66 | -23.29 | 109.84 | -50.90 | 119.56 | 0.8216 | 415.0 | 457.7 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -21.86 | 110.52 | -50.22 | 118.14 | 0.8111 | -585.0 | -499.7 | |
| 0.00 | 0.77 | 0.00 | 0.67 | -23.20 | 109.69 | -51.05 | 119.39 | 0.8227 | 553.0 | 502.3 | |
| 0.00 | 0.68 | 0.00 | 0.59 | -22.87 | 109.86 | -50.88 | 119.08 | 0.8201 | 392.0 | 394.5 | |
| 1.71 | 2.14 | 1.49 | 1.86 | -23.46 | 109.44 | -51.30 | 119.61 | 0.8256 | 335.6 | 360.8 | |
| 2.90 | 56.22 | 2.54 | 49.30 | -23.20 | 109.27 | -51.47 | 119.25 | 0.8263 | 412.8 | 40.7 | |
| 9.14 | -8.00 | 7.95 | -8.00 | -22.78 | 109.39 | -51.35 | 118.81 | 0.8239 | 691.9 | 999999 | |
| 17.77 | 100.56 | 14.24 | 80.50 | -17.03 | 111.38 | -49.36 | 112.62 | 0.7883 | 876.0 | 372.5 | |
| 5.72 | -8.00 | 5.03 | -8.00 | -22.47 | 108.78 | -51.96 | 118.23 | 0.8283 | 398.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.89 | -21.41 | 108.76 | -51.98 | 117.00 | 0.8254 | 168.0 | 142.9 | |
| 0.00 | 0.94 | 0.00 | 0.77 | -17.20 | 110.50 | -50.24 | 112.55 | 0.7975 | 249.0 | 198.4 | |
| 0.00 | 2.56 | 0.00 | 2.27 | -22.09 | 108.25 | -52.49 | 117.62 | 0.8318 | -310.0 | -219.9 | |
| 0.00 | 3.67 | 0.00 | 3.35 | -23.10 | 107.48 | -53.27 | 118.52 | 0.8412 | -510.0 | -522.0 | |
| 2.31 | 3.08 | 2.11 | 2.81 | -22.23 | 106.99 | -53.75 | 117.38 | 0.8428 | -548.1 | -414.7 | |
| 1.03 | 1.71 | 0.93 | 1.55 | -21.46 | 107.20 | -53.54 | 116.57 | 0.8391 | -495.9 | -529.4 | |
| 0.00 | 1.03 | 0.00 | 0.96 | -22.76 | 106.36 | -54.38 | 117.78 | 0.8494 | -321.0 | -362.2 | |
| 0.00 | 1.20 | 0.00 | 1.15 | -24.00 | 105.59 | -55.15 | 118.95 | 0.8588 | 354.0 | 276.6 | |
| 0.00 | 1.97 | 0.00 | 1.77 | -21.05 | 107.20 | -53.54 | 116.09 | 0.8379 | -719.0 | -638.8 | |
| 0.00 | 1.28 | 0.00 | 1.16 | -21.21 | 107.06 | -53.68 | 116.23 | 0.8395 | -587.0 | -488.1 | |
| 2.31 | 4.78 | 2.14 | 4.43 | -22.02 | 106.46 | -54.28 | 116.97 | 0.8467 | -654.3 | -594.5 | |
| 0.00 | 0.85 | 0.00 | 0.77 | -20.48 | 107.12 | -53.62 | 115.41 | 0.8371 | -626.0 | -641.7 | |
| 1.88 | 2.65 | 1.70 | 2.40 | -20.76 | 106.87 | -53.87 | 115.67 | 0.8401 | -631.3 | -603.4 | |
| 0.00 | 1.97 | 0.00 | 1.78 | -20.45 | 106.87 | -53.87 | 115.30 | 0.8393 | -602.0 | -601.1 | |
| 0.00 | 1.54 | 0.00 | 1.44 | -21.89 | 105.97 | -54.77 | 116.69 | 0.8504 | -643.0 | -513.1 | |
| 7.09 | 60.75 | 6.62 | 57.74 | -21.41 | 105.97 | -54.77 | 116.14 | 0.8493 | -636.0 | -275.2 | |
| 5.90 | -27.00 | 5.57 | -27.00 | -21.99 | 105.64 | -55.10 | 116.71 | 0.8534 | -603.3 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.31 | -20.42 | 106.51 | -54.24 | 115.16 | 0.8423 | 278.0 | 249.8 | |
| 0.77 | 2.48 | 0.71 | 2.29 | -20.90 | 106.20 | -54.55 | 115.62 | 0.8461 | -688.8 | -541.7 | |
| 0.00 | 1.20 | 0.00 | 1.10 | -20.65 | 106.22 | -54.52 | 115.34 | 0.8453 | -646.0 | -519.1 | |
| 10.59 | -27.00 | 10.14 | -27.00 | -22.07 | 105.09 | -55.66 | 116.63 | 0.8581 | -493.6 | 999999 | |
| 0.51 | -27.00 | 0.50 | -27.00 | -21.98 | 104.68 | -56.06 | 116.41 | 0.8611 | 55.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.50 | -22.14 | 104.47 | -56.27 | 116.54 | 0.8632 | -34.0 | 0.0 | |
| 0.00 | 1.88 | 0.00 | 1.80 | -21.34 | 104.78 | -55.97 | 115.72 | 0.8588 | -610.0 | -361.0 | |
| 0.00 | 0.68 | 0.00 | 0.65 | -20.50 | 105.19 | -55.55 | 114.89 | 0.8536 | -456.0 | -418.9 | |
| 0.00 | 1.62 | 0.00 | 1.54 | -20.25 | 104.99 | -55.75 | 114.55 | 0.8546 | -609.0 | -523.6 | |
| 0.00 | 1.03 | 0.00 | 1.00 | -21.44 | 104.31 | -56.43 | 115.70 | 0.8628 | -335.0 | -329.0 | |
| 0.00 | 1.03 | 0.00 | 0.97 | -20.06 | 104.92 | -55.82 | 114.31 | 0.8548 | -620.0 | -532.5 | |
| 0.00 | 1.03 | 0.00 | 1.01 | -21.83 | 103.84 | -56.90 | 116.01 | 0.8674 | -321.0 | -249.8 | |
| 0.00 | 1.20 | 0.00 | 1.14 | -19.91 | 104.73 | -56.02 | 114.08 | 0.8561 | -521.0 | -408.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
