SDO HMI 2011-12-01 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.22 | 591.61 | 70.29 | 347.25 | 8.17 | 128.53 | -31.67 | 76.01 | 0.5368 | -83.9 | 75.1 | |
|
previous
or next observation for the same group /

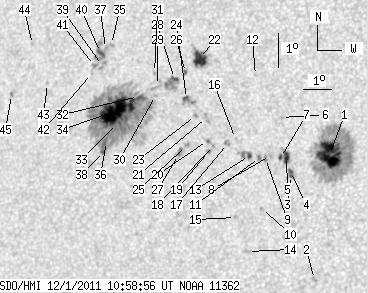

back to the solar disc SDO HMI 2011-12-01 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.85 | 173.25 | 21.14 | 96.69 | 7.26 | 133.31 | -26.89 | 75.88 | 0.4645 | -1132.3 | -392.5 | |
| 0.00 | 2.82 | 0.00 | 1.57 | 3.55 | 132.99 | -27.21 | 83.95 | 0.4608 | -757.0 | -672.2 | |
| 0.51 | 3.93 | 0.29 | 2.22 | 6.62 | 132.07 | -28.12 | 77.71 | 0.4812 | -929.5 | -839.6 | |
| 1.03 | -3.00 | 0.58 | -3.00 | 6.74 | 132.03 | -28.16 | 77.48 | 0.4821 | -999.8 | 999999 | |
| 5.47 | 10.51 | 3.09 | 5.95 | 7.19 | 131.87 | -28.33 | 76.64 | 0.4859 | -939.3 | -648.5 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 8.35 | 131.61 | -28.59 | 74.43 | 0.4935 | -756.0 | -519.1 | |
| 1.54 | -5.00 | 0.87 | -5.00 | 7.16 | 131.66 | -28.53 | 76.79 | 0.4888 | -731.1 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.78 | 7.21 | 131.32 | -28.87 | 76.81 | 0.4941 | -892.0 | -675.7 | |
| 0.00 | 2.31 | 0.00 | 1.31 | 7.12 | 131.16 | -29.04 | 77.05 | 0.4963 | -821.0 | -669.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 5.64 | 131.11 | -29.08 | 80.04 | 0.4931 | -773.0 | -598.4 | |
| 0.00 | 2.31 | 0.00 | 1.32 | 7.15 | 130.95 | -29.25 | 77.07 | 0.4994 | -860.0 | -703.7 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 9.59 | 130.61 | -29.59 | 72.49 | 0.5126 | -697.0 | -495.9 | |
| 1.03 | 7.26 | 0.59 | 4.17 | 7.21 | 130.60 | -29.59 | 77.09 | 0.5047 | -905.5 | -716.5 | |
| 0.00 | 2.56 | 0.00 | 1.46 | 4.36 | 130.70 | -29.50 | 82.71 | 0.4970 | -804.0 | -561.7 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 5.36 | 130.24 | -29.96 | 80.82 | 0.5057 | -589.0 | -458.4 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 7.71 | 130.08 | -30.11 | 76.31 | 0.5138 | -646.0 | -505.5 | |
| 0.00 | 3.33 | 0.00 | 1.93 | 7.56 | 129.82 | -30.38 | 76.70 | 0.5172 | -636.0 | -569.4 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 7.50 | 129.34 | -30.86 | 76.99 | 0.5240 | -686.0 | -540.4 | |
| 0.00 | 1.88 | 0.00 | 1.09 | 7.32 | 129.18 | -31.02 | 77.38 | 0.5259 | -763.0 | -633.4 | |
| 0.00 | 1.79 | 0.00 | 1.04 | 7.64 | 129.12 | -31.08 | 76.79 | 0.5276 | -698.0 | -613.6 | |
| 0.00 | 3.08 | 0.00 | 1.79 | 8.33 | 129.02 | -31.17 | 75.55 | 0.5310 | 285.0 | 219.8 | |
| 12.99 | 23.41 | 7.64 | 13.78 | 10.09 | 128.60 | -31.59 | 72.52 | 0.5429 | -906.5 | -473.3 | |
| 0.00 | 1.88 | 0.00 | 1.10 | 8.38 | 128.63 | -31.56 | 75.60 | 0.5368 | -675.0 | -410.6 | |
| 2.65 | 8.71 | 1.56 | 5.13 | 8.89 | 128.27 | -31.93 | 74.82 | 0.5435 | 790.4 | 628.5 | |
| 0.00 | 2.73 | 0.00 | 1.60 | 7.49 | 128.39 | -31.80 | 77.33 | 0.5377 | -856.0 | -619.3 | |
| 1.71 | 2.31 | 1.01 | 1.36 | 9.67 | 128.15 | -32.04 | 73.48 | 0.5477 | -608.8 | -476.0 | |
| 1.28 | 3.08 | 0.75 | 1.81 | 7.22 | 128.13 | -32.06 | 77.91 | 0.5407 | -694.1 | -703.9 | |
| 2.65 | 15.55 | 1.57 | 9.23 | 9.48 | 127.78 | -32.41 | 73.95 | 0.5523 | -504.1 | 318.0 | |
| 0.00 | 5.55 | 0.00 | 3.31 | 9.27 | 127.20 | -33.00 | 74.56 | 0.5598 | 572.0 | 462.7 | |
| 0.00 | 1.28 | 0.00 | 0.76 | 8.97 | 127.16 | -33.04 | 75.10 | 0.5594 | 781.0 | 600.6 | |
| 0.00 | 1.20 | 0.00 | 0.72 | 9.66 | 127.05 | -33.15 | 73.94 | 0.5631 | -489.0 | -362.1 | |
| 0.68 | 276.19 | 0.41 | 166.91 | 8.94 | 126.55 | -33.64 | 75.38 | 0.5678 | 878.5 | 394.4 | |
| 1.62 | -32.00 | 0.98 | -32.00 | 8.12 | 125.88 | -34.32 | 77.00 | 0.5750 | 997.1 | 999999 | |
| 44.00 | -32.00 | 26.64 | -32.00 | 8.51 | 125.80 | -34.39 | 76.36 | 0.5771 | 1128.2 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.99 | 10.48 | 125.39 | -34.81 | 73.18 | 0.5886 | 754.0 | 679.4 | |
| 1.20 | -32.00 | 0.72 | -32.00 | 7.59 | 125.53 | -34.67 | 78.03 | 0.5786 | 351.1 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.99 | 10.36 | 125.18 | -35.01 | 73.46 | 0.5910 | 722.0 | 677.7 | |
| 0.68 | -32.00 | 0.41 | -32.00 | 7.29 | 125.48 | -34.71 | 78.55 | 0.5786 | 217.6 | 999999 | |
| 0.00 | 3.59 | 0.00 | 2.20 | 9.85 | 125.14 | -35.06 | 74.33 | 0.5900 | 835.0 | 775.7 | |
| 3.33 | 11.45 | 2.04 | 7.03 | 10.24 | 125.02 | -35.18 | 73.73 | 0.5929 | 772.0 | 609.9 | |
| 0.00 | 2.73 | 0.00 | 1.68 | 9.85 | 124.84 | -35.35 | 74.43 | 0.5940 | 686.0 | 552.9 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 9.61 | 124.76 | -35.43 | 74.86 | 0.5944 | 565.0 | 400.7 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 9.30 | 123.16 | -37.03 | 75.88 | 0.6152 | 625.0 | 466.5 | |
| 0.00 | 1.20 | 0.00 | 0.76 | 10.46 | 122.44 | -37.76 | 74.26 | 0.6279 | 435.0 | 384.6 | |
| 0.00 | 1.62 | 0.00 | 1.03 | 8.96 | 121.84 | -38.36 | 76.79 | 0.6319 | 639.0 | 506.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
