SDO HMI 2011-12-01 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.57 | 266.31 | 40.50 | 143.25 | 18.96 | 172.03 | 14.03 | 323.91 | 0.3900 | -98.8 | -179.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-01 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

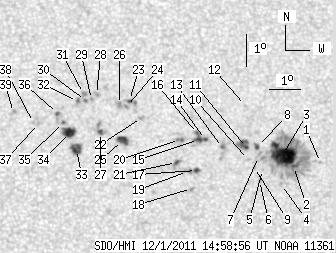

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.56 | 18.43 | 175.32 | 17.32 | 316.97 | 0.4156 | 813.0 | 610.2 | |
| 1.45 | 135.18 | 0.79 | 73.22 | 18.31 | 174.43 | 16.42 | 318.22 | 0.4047 | -951.5 | -421.0 | |
| 31.08 | -2.00 | 16.83 | -2.00 | 18.69 | 174.11 | 16.10 | 319.41 | 0.4056 | -1237.7 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 17.76 | 173.98 | 15.98 | 317.99 | 0.3936 | -972.0 | -805.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 18.22 | 173.41 | 15.41 | 319.82 | 0.3930 | -809.0 | -670.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 17.89 | 173.29 | 15.29 | 319.45 | 0.3876 | -919.0 | -772.1 | |
| 0.00 | 3.59 | 0.00 | 1.93 | 18.63 | 173.32 | 15.32 | 320.67 | 0.3968 | -427.0 | -616.3 | |
| 2.05 | 3.24 | 1.11 | 1.75 | 18.94 | 173.32 | 15.32 | 321.20 | 0.4005 | -903.8 | -707.7 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 18.29 | 173.16 | 15.16 | 320.38 | 0.3911 | -949.0 | -725.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 18.54 | 172.99 | 14.99 | 321.11 | 0.3923 | -896.0 | -701.3 | |
| 1.28 | 8.71 | 0.69 | 4.70 | 18.91 | 172.96 | 14.96 | 321.79 | 0.3965 | -1154.3 | -957.4 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 20.22 | 173.05 | 15.05 | 323.72 | 0.4136 | -740.0 | -541.5 | |
| 0.43 | 7.94 | 0.23 | 4.26 | 18.91 | 172.19 | 14.18 | 323.23 | 0.3890 | -1053.4 | -633.3 | |
| 0.77 | 11.02 | 0.41 | 5.91 | 19.16 | 171.66 | 13.66 | 324.64 | 0.3871 | -946.0 | -663.9 | |
| 3.07 | -14.00 | 1.65 | -14.00 | 19.16 | 171.43 | 13.43 | 325.08 | 0.3851 | -1040.6 | 999999 | |
| 0.43 | -14.00 | 0.23 | -14.00 | 19.35 | 171.42 | 13.42 | 325.41 | 0.3873 | -893.8 | 999999 | |
| 2.39 | 3.07 | 1.27 | 1.64 | 18.20 | 171.29 | 13.29 | 323.80 | 0.3714 | 764.9 | 637.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 17.65 | 171.09 | 13.09 | 323.26 | 0.3624 | -758.0 | -696.3 | |
| 0.00 | 3.84 | 0.00 | 2.05 | 18.17 | 171.00 | 13.00 | 324.34 | 0.3682 | 780.0 | 794.0 | |
| 0.00 | 2.73 | 0.00 | 1.46 | 19.17 | 170.82 | 12.82 | 326.30 | 0.3795 | -1015.0 | -884.9 | |
| 1.37 | 4.10 | 0.73 | 2.18 | 18.45 | 170.67 | 12.67 | 325.48 | 0.3688 | 854.1 | 746.1 | |
| 0.00 | 2.13 | 0.00 | 1.14 | 19.86 | 169.66 | 11.66 | 329.74 | 0.3788 | 900.0 | 641.2 | |
| 1.20 | 4.78 | 0.64 | 2.56 | 20.39 | 169.31 | 11.31 | 331.20 | 0.3834 | 881.4 | 701.1 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 20.20 | 169.20 | 11.20 | 331.18 | 0.3799 | 1022.0 | 876.1 | |
| 7.34 | 8.28 | 3.90 | 4.40 | 19.14 | 169.00 | 11.00 | 330.13 | 0.3635 | 965.1 | 729.0 | |
| 0.00 | 3.50 | 0.00 | 1.87 | 20.26 | 168.98 | 10.98 | 331.74 | 0.3791 | 1147.0 | 890.6 | |
| 2.05 | 8.45 | 1.09 | 4.49 | 19.39 | 168.31 | 10.31 | 332.03 | 0.3616 | 1153.9 | 762.6 | |
| 0.00 | 2.56 | 0.00 | 1.37 | 20.58 | 168.27 | 10.27 | 333.70 | 0.3782 | 779.0 | 736.7 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 20.42 | 168.10 | 10.09 | 333.88 | 0.3747 | 898.0 | 811.6 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 20.39 | 167.90 | 9.90 | 334.27 | 0.3729 | 1154.0 | 969.4 | |
| 0.00 | 2.99 | 0.00 | 1.60 | 20.61 | 167.85 | 9.85 | 334.66 | 0.3757 | 772.0 | 695.3 | |
| 0.00 | 2.90 | 0.00 | 1.55 | 20.36 | 167.64 | 9.64 | 334.82 | 0.3707 | 919.0 | 816.1 | |
| 8.62 | 10.25 | 4.55 | 5.41 | 18.86 | 167.52 | 9.52 | 333.15 | 0.3481 | 1000.8 | 780.2 | |
| 9.31 | 11.36 | 4.93 | 6.01 | 19.39 | 167.33 | 9.33 | 334.32 | 0.3544 | 1061.0 | 794.6 | |
| 1.28 | 3.84 | 0.68 | 2.04 | 19.70 | 167.16 | 9.16 | 335.13 | 0.3577 | 871.5 | 669.5 | |
| 1.45 | 2.31 | 0.77 | 1.22 | 19.99 | 166.98 | 8.98 | 335.89 | 0.3607 | 829.2 | 736.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 19.68 | 166.36 | 8.36 | 337.00 | 0.3520 | 960.0 | 772.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 19.71 | 166.20 | 8.20 | 337.43 | 0.3515 | 777.0 | 530.1 | |
| 0.00 | 2.56 | 0.00 | 1.36 | 20.02 | 165.59 | 7.59 | 339.30 | 0.3525 | 726.0 | 594.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
