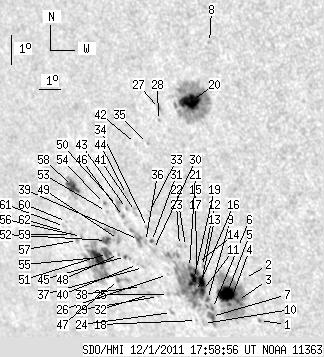

SDO HMI 2011-12-01 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.79 | 488.52 | 87.03 | 389.65 | -21.36 | 108.80 | -47.54 | 118.53 | 0.7840 | 152.0 | 64.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-01 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.72 | -24.03 | 111.86 | -44.49 | 123.08 | 0.7661 | 781.0 | 675.2 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -22.67 | 111.76 | -44.59 | 121.38 | 0.7611 | 620.0 | 498.3 | |
| 1.02 | 93.15 | 0.79 | 72.30 | -23.39 | 111.13 | -45.21 | 121.97 | 0.7702 | 847.5 | 410.9 | |
| 1.45 | -3.00 | 1.13 | -3.00 | -23.49 | 110.72 | -45.63 | 121.90 | 0.7745 | 574.2 | 999999 | |
| 18.70 | -3.00 | 14.54 | -3.00 | -23.20 | 110.71 | -45.63 | 121.55 | 0.7734 | 943.3 | 999999 | |
| 1.02 | 114.66 | 0.81 | 91.53 | -23.66 | 109.85 | -46.50 | 121.72 | 0.7834 | 578.6 | 96.6 | |
| 4.10 | -6.00 | 3.27 | -6.00 | -23.92 | 109.68 | -46.67 | 121.96 | 0.7860 | 526.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.85 | -15.24 | 112.72 | -43.63 | 112.32 | 0.7220 | -416.0 | -391.8 | |
| 1.88 | -6.00 | 1.49 | -6.00 | -23.37 | 109.75 | -46.60 | 121.33 | 0.7831 | 642.4 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.10 | -24.16 | 109.18 | -47.16 | 122.02 | 0.7914 | 387.0 | 403.4 | |
| 3.24 | -6.00 | 2.57 | -6.00 | -23.08 | 109.64 | -46.70 | 120.94 | 0.7829 | 728.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.14 | -22.30 | 109.99 | -46.36 | 120.16 | 0.7766 | 694.0 | 618.9 | |
| 5.55 | -6.00 | 4.38 | -6.00 | -22.79 | 109.73 | -46.62 | 120.63 | 0.7810 | 977.0 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.80 | -22.18 | 109.81 | -46.53 | 119.93 | 0.7778 | 747.0 | 626.1 | |
| 2.39 | -6.00 | 1.89 | -6.00 | -22.47 | 109.64 | -46.71 | 120.21 | 0.7806 | 834.8 | 999999 | |
| 1.28 | -6.00 | 1.02 | -6.00 | -23.12 | 109.34 | -47.00 | 120.86 | 0.7859 | 423.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -21.98 | 109.85 | -46.50 | 119.71 | 0.7767 | 731.0 | 685.9 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -24.06 | 108.89 | -47.45 | 121.79 | 0.7937 | 403.0 | 339.9 | |
| 5.38 | -6.00 | 4.27 | -6.00 | -22.73 | 109.38 | -46.97 | 120.41 | 0.7840 | 732.7 | 999999 | |
| 21.69 | 98.78 | 15.99 | 72.72 | -17.08 | 111.37 | -44.97 | 114.21 | 0.7431 | 942.0 | 398.7 | |
| 1.88 | -6.00 | 1.49 | -6.00 | -22.34 | 109.36 | -46.98 | 119.94 | 0.7827 | 533.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -21.67 | 109.47 | -46.88 | 119.17 | 0.7791 | 556.0 | 523.5 | |
| 0.00 | 2.05 | 0.00 | 1.62 | -21.64 | 109.20 | -47.14 | 119.03 | 0.7816 | 576.0 | 499.9 | |
| 0.00 | 1.79 | 0.00 | 1.48 | -23.82 | 107.80 | -48.54 | 121.05 | 0.8026 | 343.0 | 222.0 | |
| 0.00 | 1.28 | 0.00 | 1.05 | -23.23 | 107.95 | -48.40 | 120.42 | 0.7991 | -526.0 | -473.0 | |
| 0.00 | 0.77 | 0.00 | 0.62 | -22.58 | 108.21 | -48.14 | 119.76 | 0.7944 | 194.0 | 170.2 | |
| 0.00 | 3.07 | 0.00 | 2.33 | -17.31 | 109.92 | -46.42 | 113.96 | 0.7592 | 617.0 | 454.4 | |
| 0.00 | 0.85 | 0.00 | 0.65 | -17.69 | 109.75 | -46.60 | 114.37 | 0.7622 | 454.0 | 443.7 | |
| 0.00 | 0.68 | 0.00 | 0.57 | -23.30 | 107.42 | -48.92 | 120.30 | 0.8041 | 433.0 | 331.1 | |
| 0.00 | 3.84 | 0.00 | 3.12 | -21.78 | 107.90 | -48.44 | 118.69 | 0.7944 | -335.0 | -283.4 | |
| 1.20 | 1.54 | 0.97 | 1.24 | -21.53 | 107.92 | -48.43 | 118.39 | 0.7933 | -579.8 | -469.0 | |
| 0.00 | 2.39 | 0.00 | 2.00 | -23.24 | 107.01 | -49.34 | 120.07 | 0.8076 | 73.0 | -21.4 | |
| 0.00 | 0.43 | 0.00 | 0.34 | -20.57 | 108.24 | -48.10 | 117.36 | 0.7870 | 232.0 | 153.8 | |
| 0.00 | 1.79 | 0.00 | 1.45 | -21.08 | 107.93 | -48.42 | 117.86 | 0.7917 | -514.0 | -438.6 | |
| 0.00 | 1.20 | 0.00 | 0.93 | -18.42 | 108.99 | -47.35 | 115.00 | 0.7724 | -461.0 | -377.4 | |
| 0.00 | 1.79 | 0.00 | 1.46 | -21.53 | 107.63 | -48.72 | 118.28 | 0.7961 | -277.0 | -273.9 | |
| 0.00 | 1.20 | 0.00 | 0.99 | -22.37 | 107.14 | -49.21 | 119.09 | 0.8034 | -646.0 | -493.1 | |
| 0.00 | 1.62 | 0.00 | 1.36 | -22.99 | 106.74 | -49.61 | 119.67 | 0.8092 | -616.0 | -482.1 | |
| 1.20 | 9.22 | 0.98 | 7.56 | -21.47 | 107.32 | -49.03 | 118.10 | 0.7988 | -535.0 | -373.1 | |
| 0.00 | 1.02 | 0.00 | 0.85 | -22.28 | 106.89 | -49.46 | 118.89 | 0.8054 | -644.0 | -562.5 | |
| 0.00 | 3.84 | 0.00 | 3.11 | -20.58 | 107.57 | -48.78 | 117.12 | 0.7934 | -504.0 | -603.4 | |
| 0.00 | 1.45 | 0.00 | 1.14 | -18.42 | 108.43 | -47.91 | 114.81 | 0.7780 | 497.0 | 340.5 | |
| 0.00 | 1.62 | 0.00 | 1.32 | -20.49 | 107.17 | -49.17 | 116.87 | 0.7969 | -707.0 | -571.4 | |
| 0.00 | 1.88 | 0.00 | 1.52 | -20.04 | 107.36 | -48.98 | 116.40 | 0.7936 | -618.0 | -545.7 | |
| 1.20 | 2.65 | 1.00 | 2.22 | -22.03 | 106.41 | -49.93 | 118.42 | 0.8089 | -611.5 | -567.8 | |
| 1.20 | 1.20 | 0.98 | 0.98 | -20.74 | 106.91 | -49.43 | 117.08 | 0.8001 | -630.3 | 0.0 | |
| 1.71 | 9.65 | 1.46 | 8.25 | -22.81 | 105.67 | -50.67 | 119.07 | 0.8180 | -639.5 | -557.1 | |
| 0.00 | 0.77 | 0.00 | 0.65 | -21.97 | 106.09 | -50.25 | 118.23 | 0.8116 | -498.0 | -475.7 | |
| 0.00 | 3.16 | 0.00 | 2.64 | -21.48 | 106.33 | -50.02 | 117.75 | 0.8079 | -756.0 | -675.0 | |
| 0.00 | 5.63 | 0.00 | 4.63 | -20.40 | 106.77 | -49.57 | 116.62 | 0.8003 | -727.0 | -649.8 | |
| 7.51 | 78.55 | 6.41 | 67.74 | -21.94 | 105.55 | -50.79 | 118.01 | 0.8164 | -685.5 | -287.5 | |
| 5.04 | -51.00 | 4.27 | -51.00 | -21.52 | 105.71 | -50.64 | 117.58 | 0.8137 | -690.9 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.36 | -20.59 | 106.14 | -50.20 | 116.63 | 0.8068 | -571.0 | -477.8 | |
| 0.00 | 1.28 | 0.00 | 1.07 | -20.34 | 106.16 | -50.19 | 116.34 | 0.8059 | -650.0 | -546.3 | |
| 10.42 | -51.00 | 9.00 | -51.00 | -22.08 | 105.03 | -51.32 | 117.99 | 0.8214 | -685.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.26 | -21.41 | 104.49 | -51.86 | 117.03 | 0.8242 | -362.0 | -294.3 | |
| 0.00 | 1.79 | 0.00 | 1.57 | -21.54 | 104.21 | -52.13 | 117.10 | 0.8270 | -501.0 | -334.0 | |
| 9.73 | 16.39 | 8.32 | 14.01 | -19.82 | 104.79 | -51.56 | 115.27 | 0.8170 | -627.7 | -411.7 | |
| 0.00 | 1.88 | 0.00 | 1.65 | -21.35 | 104.00 | -52.35 | 116.81 | 0.8284 | -578.0 | -478.9 | |
| 0.00 | 0.68 | 0.00 | 0.60 | -20.94 | 103.94 | -52.40 | 116.31 | 0.8277 | -580.0 | -546.8 | |
| 0.00 | 1.02 | 0.00 | 0.90 | -21.10 | 103.76 | -52.59 | 116.44 | 0.8298 | -496.0 | -434.3 | |
| 0.00 | 0.34 | 0.00 | 0.30 | -21.26 | 103.68 | -52.67 | 116.60 | 0.8309 | -397.0 | -429.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
