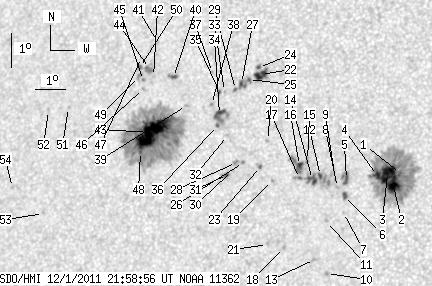

SDO HMI 2011-12-01 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.97 | 602.77 | 65.64 | 333.31 | 8.07 | 128.81 | -25.33 | 73.16 | 0.4433 | -14.6 | 47.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-01 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.85 | 187.09 | 0.45 | 99.50 | 7.32 | 133.92 | -20.21 | 71.63 | 0.3627 | -1072.2 | -452.0 | |
| 12.30 | -1.00 | 6.54 | -1.00 | 6.96 | 133.71 | -20.42 | 72.74 | 0.3643 | -1399.3 | 999999 | |
| 14.43 | -1.00 | 7.69 | -1.00 | 7.32 | 133.51 | -20.63 | 71.96 | 0.3691 | -1196.3 | 999999 | |
| 3.67 | -1.00 | 1.96 | -1.00 | 7.26 | 133.19 | -20.94 | 72.36 | 0.3737 | -894.1 | 999999 | |
| 3.93 | 6.66 | 2.11 | 3.58 | 7.13 | 132.20 | -21.93 | 73.37 | 0.3884 | -1049.4 | -828.1 | |
| 2.73 | 3.07 | 1.47 | 1.65 | 6.66 | 132.16 | -21.97 | 74.59 | 0.3872 | -926.7 | -913.8 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 6.15 | 132.15 | -21.98 | 75.87 | 0.3854 | -498.0 | -414.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 6.89 | 131.93 | -22.21 | 74.15 | 0.3918 | -837.0 | -685.6 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 7.10 | 131.85 | -22.28 | 73.68 | 0.3938 | -851.0 | -737.0 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 4.34 | 131.68 | -22.46 | 80.72 | 0.3876 | -899.0 | -718.3 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 5.88 | 131.62 | -22.51 | 76.84 | 0.3929 | -780.0 | -622.1 | |
| 1.88 | 25.02 | 1.02 | 13.53 | 7.25 | 131.36 | -22.77 | 73.64 | 0.4019 | -927.0 | -754.7 | |
| 0.00 | 2.05 | 0.00 | 1.10 | 4.75 | 131.28 | -22.86 | 79.83 | 0.3950 | -823.0 | -664.6 | |
| 5.21 | -12.00 | 2.82 | -12.00 | 7.13 | 131.11 | -23.03 | 74.08 | 0.4054 | -871.6 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.20 | 7.69 | 130.91 | -23.22 | 72.86 | 0.4106 | -784.0 | -640.1 | |
| 2.99 | 11.36 | 1.62 | 6.18 | 7.54 | 130.66 | -23.47 | 73.37 | 0.4138 | -811.1 | -608.7 | |
| 0.94 | -12.00 | 0.51 | -12.00 | 7.15 | 130.68 | -23.45 | 74.27 | 0.4120 | -704.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 5.10 | 130.29 | -23.84 | 79.36 | 0.4114 | -792.0 | -667.4 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 7.09 | 129.81 | -24.33 | 74.91 | 0.4252 | -786.0 | -641.4 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 8.28 | 129.57 | -24.56 | 72.36 | 0.4335 | 933.0 | 736.0 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 5.19 | 129.74 | -24.40 | 79.37 | 0.4203 | -548.0 | -539.7 | |
| 8.54 | 11.10 | 4.73 | 6.14 | 10.25 | 129.19 | -24.94 | 68.33 | 0.4484 | -1067.9 | -773.9 | |
| 1.37 | 2.31 | 0.75 | 1.27 | 7.50 | 129.39 | -24.74 | 74.20 | 0.4331 | -692.1 | -480.9 | |
| 1.37 | 2.22 | 0.76 | 1.23 | 10.46 | 129.11 | -25.03 | 67.95 | 0.4507 | -785.9 | -694.3 | |
| 1.02 | 10.76 | 0.57 | 5.98 | 10.10 | 128.81 | -25.33 | 68.93 | 0.4533 | -837.3 | -699.0 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 7.62 | 128.82 | -25.31 | 74.25 | 0.4421 | -795.0 | -705.1 | |
| 2.31 | -25.00 | 1.28 | -25.00 | 9.98 | 128.58 | -25.55 | 69.33 | 0.4559 | -748.8 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.32 | 7.62 | 128.59 | -25.54 | 74.38 | 0.4456 | -576.0 | -483.5 | |
| 1.11 | -25.00 | 0.62 | -25.00 | 9.79 | 128.40 | -25.74 | 69.84 | 0.4577 | -630.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 7.38 | 128.48 | -25.66 | 74.96 | 0.4465 | -772.0 | -624.8 | |
| 1.28 | 2.90 | 0.71 | 1.61 | 7.26 | 128.32 | -25.82 | 75.31 | 0.4485 | -848.0 | -639.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 8.42 | 128.24 | -25.89 | 72.84 | 0.4540 | 624.0 | 530.6 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 9.73 | 128.04 | -26.10 | 70.20 | 0.4627 | -626.0 | -501.2 | |
| 7.09 | 17.08 | 3.95 | 9.52 | 9.04 | 127.93 | -26.21 | 71.70 | 0.4613 | 983.4 | 705.7 | |
| 1.20 | 2.13 | 0.67 | 1.19 | 9.73 | 127.87 | -26.26 | 70.31 | 0.4652 | -546.6 | -586.6 | |
| 1.11 | -34.00 | 0.62 | -34.00 | 8.72 | 127.88 | -26.25 | 72.41 | 0.4605 | 698.2 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 10.30 | 127.58 | -26.55 | 69.33 | 0.4720 | 666.0 | 530.6 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 9.34 | 127.63 | -26.50 | 71.26 | 0.4669 | 906.0 | 754.4 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 9.31 | 126.80 | -27.34 | 71.81 | 0.4790 | 872.0 | 661.1 | |
| 2.05 | 3.67 | 1.16 | 2.08 | 10.14 | 126.28 | -27.85 | 70.45 | 0.4901 | 958.2 | 915.4 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 11.22 | 125.63 | -28.51 | 68.77 | 0.5043 | 640.0 | 578.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 10.17 | 125.60 | -28.54 | 70.79 | 0.5000 | 844.0 | 631.2 | |
| 40.65 | 271.20 | 23.10 | 153.99 | 8.49 | 125.68 | -28.46 | 74.02 | 0.4922 | 1286.3 | 449.0 | |
| 0.00 | 6.15 | 0.00 | 3.52 | 10.41 | 125.44 | -28.70 | 70.42 | 0.5033 | 909.0 | 768.5 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 10.04 | 125.27 | -28.87 | 71.21 | 0.5042 | 885.0 | 816.3 | |
| 0.00 | 1.37 | 0.00 | 0.78 | 9.80 | 125.29 | -28.84 | 71.65 | 0.5029 | 782.0 | 655.4 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 10.73 | 125.13 | -29.01 | 69.97 | 0.5092 | 584.0 | 460.6 | |
| 0.94 | -43.00 | 0.53 | -43.00 | 7.92 | 125.35 | -28.79 | 75.30 | 0.4951 | 770.3 | 999999 | |
| 0.00 | 3.24 | 0.00 | 1.86 | 10.16 | 125.12 | -29.02 | 71.06 | 0.5069 | 724.0 | 678.4 | |
| 0.00 | 2.05 | 0.00 | 1.18 | 10.43 | 125.09 | -29.04 | 70.56 | 0.5084 | 741.0 | 628.3 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 9.22 | 122.74 | -31.39 | 73.95 | 0.5371 | 814.0 | 680.1 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 9.12 | 122.05 | -32.09 | 74.41 | 0.5467 | 487.0 | 409.3 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 6.06 | 122.13 | -32.00 | 79.97 | 0.5373 | 601.0 | 446.3 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 6.82 | 120.98 | -33.16 | 78.89 | 0.5556 | 649.0 | 501.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
