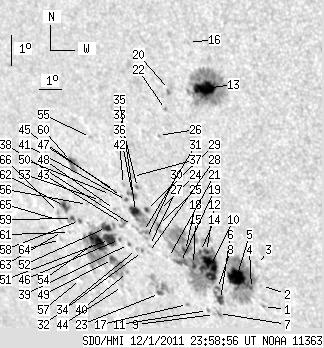

SDO HMI 2011-12-01 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 148.68 | 626.31 | 113.33 | 473.27 | -21.52 | 108.45 | -44.58 | 119.97 | 0.7556 | 43.7 | 90.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-01 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 1.00 | -24.05 | 111.55 | -41.48 | 124.61 | 0.7372 | 560.0 | 445.1 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -23.37 | 111.73 | -41.30 | 123.86 | 0.7320 | 509.0 | 525.4 | |
| 0.00 | 2.73 | 0.00 | 1.97 | -22.69 | 111.81 | -41.22 | 123.06 | 0.7277 | 408.0 | 428.1 | |
| 1.20 | 88.48 | 0.87 | 64.83 | -23.47 | 111.26 | -41.77 | 123.74 | 0.7371 | 778.1 | 506.7 | |
| 18.87 | -4.00 | 13.85 | -4.00 | -23.12 | 110.74 | -42.29 | 123.03 | 0.7405 | 1046.0 | 999999 | |
| 4.36 | 182.00 | 3.27 | 136.71 | -23.85 | 109.74 | -43.29 | 123.42 | 0.7537 | 652.4 | 137.1 | |
| 0.00 | 2.48 | 0.00 | 1.87 | -24.30 | 109.46 | -43.57 | 123.83 | 0.7586 | 568.0 | 467.6 | |
| 1.71 | -6.00 | 1.28 | -6.00 | -23.49 | 109.76 | -43.27 | 122.99 | 0.7519 | 615.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.84 | -24.34 | 109.26 | -43.77 | 123.78 | 0.7606 | 441.0 | 376.7 | |
| 23.32 | -6.00 | 17.37 | -6.00 | -22.81 | 109.68 | -43.35 | 122.12 | 0.7495 | 900.7 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.04 | -24.21 | 109.00 | -44.03 | 123.50 | 0.7624 | 467.0 | 353.2 | |
| 2.22 | -6.00 | 1.65 | -6.00 | -22.29 | 109.75 | -43.28 | 121.52 | 0.7464 | 895.8 | 999999 | |
| 18.87 | 105.47 | 13.17 | 73.49 | -17.13 | 111.37 | -41.66 | 115.63 | 0.7069 | 982.2 | 427.8 | |
| 1.11 | -6.00 | 0.83 | -6.00 | -22.30 | 109.48 | -43.55 | 121.39 | 0.7491 | 643.7 | 999999 | |
| 2.22 | -6.00 | 1.67 | -6.00 | -22.72 | 109.00 | -44.03 | 121.69 | 0.7557 | 345.8 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -15.71 | 111.08 | -41.95 | 113.59 | 0.7045 | 515.0 | 453.9 | |
| 0.00 | 1.37 | 0.00 | 1.05 | -24.03 | 108.17 | -44.86 | 122.88 | 0.7694 | 439.0 | 343.1 | |
| 2.65 | -6.00 | 1.99 | -6.00 | -22.27 | 108.83 | -44.20 | 121.05 | 0.7555 | 552.8 | 999999 | |
| 3.16 | -6.00 | 2.40 | -6.00 | -22.66 | 108.44 | -44.59 | 121.35 | 0.7609 | 286.5 | 999999 | |
| 0.00 | 3.93 | 0.00 | 2.81 | -17.18 | 109.88 | -43.15 | 115.05 | 0.7235 | 141.0 | 293.2 | |
| 0.00 | 0.43 | 0.00 | 0.33 | -22.51 | 107.96 | -45.07 | 120.95 | 0.7649 | 320.0 | 306.2 | |
| 0.00 | 1.37 | 0.00 | 0.99 | -17.80 | 109.53 | -43.50 | 115.71 | 0.7298 | 535.0 | 442.9 | |
| 1.88 | 20.07 | 1.48 | 15.70 | -23.68 | 107.03 | -46.00 | 121.95 | 0.7786 | 241.5 | 167.9 | |
| 0.00 | 1.54 | 0.00 | 1.16 | -21.00 | 108.16 | -44.87 | 119.18 | 0.7567 | -187.0 | -211.9 | |
| 1.20 | -6.00 | 0.91 | -6.00 | -21.45 | 107.94 | -45.09 | 119.64 | 0.7607 | -516.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -18.62 | 108.96 | -44.07 | 116.53 | 0.7390 | -627.0 | -492.2 | |
| 0.00 | 1.62 | 0.00 | 1.25 | -22.13 | 107.25 | -45.78 | 120.17 | 0.7702 | -165.0 | -157.6 | |
| 0.00 | 0.94 | 0.00 | 0.73 | -22.36 | 107.11 | -45.92 | 120.39 | 0.7725 | -492.0 | -358.6 | |
| 1.45 | 2.56 | 1.11 | 1.95 | -20.97 | 107.58 | -45.45 | 118.90 | 0.7624 | -699.0 | -660.5 | |
| 0.00 | 1.37 | 0.00 | 1.06 | -21.91 | 107.21 | -45.82 | 119.88 | 0.7697 | -255.0 | -231.4 | |
| 0.00 | 5.30 | 0.00 | 4.09 | -21.68 | 107.16 | -45.87 | 119.59 | 0.7693 | -569.0 | -475.9 | |
| 0.00 | 0.94 | 0.00 | 0.73 | -22.33 | 106.85 | -46.18 | 120.24 | 0.7749 | -673.0 | -618.0 | |
| 0.43 | 1.20 | 0.32 | 0.91 | -20.28 | 107.45 | -45.58 | 117.98 | 0.7610 | -769.4 | -671.2 | |
| 0.00 | 1.28 | 0.00 | 1.00 | -22.27 | 106.59 | -46.44 | 120.05 | 0.7771 | -532.0 | -483.9 | |
| 8.45 | 21.78 | 6.51 | 16.75 | -21.04 | 107.06 | -45.97 | 118.76 | 0.7679 | -765.9 | -421.9 | |
| 1.02 | 5.12 | 0.79 | 3.93 | -20.50 | 107.13 | -45.90 | 118.13 | 0.7650 | -762.2 | -704.2 | |
| 0.00 | 1.28 | 0.00 | 0.97 | -19.93 | 107.35 | -45.68 | 117.51 | 0.7607 | -680.0 | -604.8 | |
| 0.00 | 1.11 | 0.00 | 0.86 | -21.49 | 106.73 | -46.30 | 119.18 | 0.7727 | -373.0 | -340.2 | |
| 1.11 | 1.45 | 0.87 | 1.14 | -22.11 | 106.29 | -46.74 | 119.74 | 0.7794 | -544.6 | -553.8 | |
| 0.00 | 1.20 | 0.00 | 0.96 | -23.02 | 105.83 | -47.20 | 120.64 | 0.7871 | -764.0 | -644.9 | |
| 1.28 | 1.37 | 0.99 | 1.05 | -20.70 | 106.78 | -46.25 | 118.22 | 0.7692 | -617.3 | -713.5 | |
| 0.00 | 1.02 | 0.00 | 0.79 | -20.19 | 106.84 | -46.19 | 117.62 | 0.7667 | -854.0 | -744.8 | |
| 0.00 | 4.70 | 0.00 | 3.68 | -21.44 | 106.30 | -46.73 | 118.93 | 0.7768 | -725.0 | -626.1 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -23.47 | 105.38 | -47.65 | 120.99 | 0.7930 | 57.0 | 34.5 | |
| 0.00 | 1.20 | 0.00 | 0.93 | -20.57 | 106.60 | -46.43 | 118.00 | 0.7705 | -499.0 | -433.1 | |
| 1.02 | 1.71 | 0.81 | 1.35 | -21.95 | 105.93 | -47.10 | 119.40 | 0.7821 | -669.1 | -636.9 | |
| 0.00 | 0.94 | 0.00 | 0.73 | -20.39 | 106.35 | -46.68 | 117.67 | 0.7723 | -526.0 | -424.6 | |
| 0.00 | 1.20 | 0.00 | 0.94 | -20.99 | 106.11 | -46.92 | 118.31 | 0.7769 | -748.0 | -530.0 | |
| 3.50 | 22.80 | 2.82 | 18.35 | -22.60 | 105.31 | -47.72 | 119.93 | 0.7904 | -622.5 | -452.9 | |
| 0.00 | 0.60 | 0.00 | 0.47 | -20.52 | 106.12 | -46.91 | 117.73 | 0.7751 | -388.0 | -361.7 | |
| 11.10 | 89.59 | 8.86 | 72.41 | -21.96 | 105.46 | -47.57 | 119.22 | 0.7867 | -791.9 | -163.7 | |
| 6.15 | -51.00 | 4.89 | -51.00 | -21.57 | 105.49 | -47.54 | 118.77 | 0.7850 | -748.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.81 | -20.71 | 105.57 | -47.46 | 117.76 | 0.7811 | -336.0 | -362.9 | |
| 17.85 | -51.00 | 14.44 | -51.00 | -22.03 | 104.81 | -48.22 | 119.05 | 0.7930 | -640.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.99 | -18.72 | 105.88 | -47.15 | 115.43 | 0.7711 | -606.0 | -499.9 | |
| 0.00 | 1.02 | 0.00 | 0.82 | -20.85 | 104.90 | -48.13 | 117.66 | 0.7880 | -389.0 | -335.5 | |
| 0.00 | 0.34 | 0.00 | 0.29 | -23.27 | 103.42 | -49.61 | 119.98 | 0.8100 | -402.0 | -406.8 | |
| 1.45 | 1.88 | 1.18 | 1.53 | -21.36 | 104.29 | -48.74 | 118.05 | 0.7956 | -476.2 | -419.0 | |
| 1.54 | 5.55 | 1.26 | 4.55 | -21.30 | 103.97 | -49.06 | 117.87 | 0.7983 | -711.7 | -493.0 | |
| 4.44 | 9.91 | 3.54 | 7.89 | -19.49 | 104.70 | -48.33 | 115.94 | 0.7854 | -594.0 | -595.5 | |
| 0.00 | 0.94 | 0.00 | 0.78 | -21.76 | 103.62 | -49.41 | 118.27 | 0.8031 | -317.0 | -262.3 | |
| 5.12 | 8.80 | 4.20 | 7.20 | -20.92 | 103.76 | -49.27 | 117.33 | 0.7991 | -701.7 | -531.9 | |
| 0.00 | 0.94 | 0.00 | 0.78 | -21.73 | 103.29 | -49.74 | 118.12 | 0.8060 | -314.0 | -263.7 | |
| 0.00 | 1.02 | 0.00 | 0.86 | -21.99 | 103.06 | -49.97 | 118.34 | 0.8089 | -64.0 | -99.3 | |
| 0.00 | 2.22 | 0.00 | 1.84 | -21.38 | 103.30 | -49.73 | 117.71 | 0.8047 | -212.0 | -220.8 | |
| 0.00 | 1.54 | 0.00 | 1.27 | -21.12 | 103.37 | -49.66 | 117.43 | 0.8033 | -332.0 | -275.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
