SDO HMI 2011-12-02 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 122.49 | 605.34 | 66.86 | 330.64 | 8.05 | 128.75 | -23.73 | 72.15 | 0.4194 | 88.0 | 26.9 | |
|
previous
or next observation for the same group /

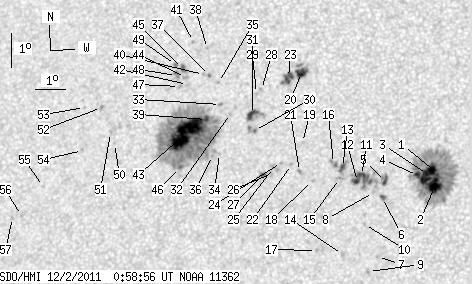

back to the solar disc SDO HMI 2011-12-02 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.28 | 180.05 | 0.67 | 94.74 | 7.31 | 133.88 | -18.60 | 70.22 | 0.3378 | -1118.5 | -454.4 | |
| 12.13 | -1.00 | 6.38 | -1.00 | 6.92 | 133.80 | -18.68 | 71.38 | 0.3370 | -1440.0 | 999999 | |
| 15.72 | -1.00 | 8.28 | -1.00 | 7.28 | 133.56 | -18.92 | 70.59 | 0.3425 | -1165.6 | 999999 | |
| 2.90 | -1.00 | 1.53 | -1.00 | 7.25 | 133.25 | -19.23 | 70.95 | 0.3472 | -899.3 | 999999 | |
| 2.48 | 5.98 | 1.32 | 3.18 | 7.06 | 132.24 | -20.24 | 72.28 | 0.3620 | -1090.3 | -905.7 | |
| 1.71 | 2.56 | 0.91 | 1.36 | 6.59 | 132.17 | -20.31 | 73.60 | 0.3610 | -925.5 | -917.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 4.84 | 132.08 | -20.40 | 78.44 | 0.3561 | -857.0 | -664.9 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 6.73 | 131.88 | -20.60 | 73.42 | 0.3662 | -715.0 | -647.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 4.39 | 131.81 | -20.67 | 79.81 | 0.3592 | -902.0 | -776.2 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 5.78 | 131.63 | -20.85 | 76.12 | 0.3664 | -680.0 | -589.0 | |
| 3.76 | 29.55 | 2.01 | 15.76 | 7.24 | 131.47 | -21.01 | 72.40 | 0.3747 | -921.1 | -818.6 | |
| 2.65 | -11.00 | 1.41 | -11.00 | 7.06 | 131.35 | -21.13 | 72.95 | 0.3758 | -901.4 | 999999 | |
| 3.59 | 5.89 | 1.92 | 3.16 | 7.47 | 130.85 | -21.63 | 72.26 | 0.3854 | -810.0 | -690.7 | |
| 0.00 | 2.14 | 0.00 | 1.14 | 4.89 | 130.96 | -21.52 | 78.85 | 0.3741 | -873.0 | -623.6 | |
| 0.00 | 3.84 | 0.00 | 2.06 | 7.14 | 130.77 | -21.71 | 73.14 | 0.3852 | -759.0 | -586.8 | |
| 0.00 | 4.87 | 0.00 | 2.62 | 7.59 | 130.56 | -21.92 | 72.18 | 0.3905 | -574.0 | -539.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 5.00 | 130.13 | -22.35 | 78.93 | 0.3877 | -685.0 | -550.6 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 7.08 | 129.91 | -22.57 | 73.86 | 0.3983 | -729.0 | -570.1 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 8.21 | 129.52 | -22.96 | 71.41 | 0.4091 | 874.0 | 662.3 | |
| 7.43 | 23.15 | 4.06 | 12.65 | 10.30 | 129.34 | -23.14 | 66.77 | 0.4225 | -1099.9 | -717.4 | |
| 0.00 | 2.05 | 0.00 | 1.11 | 7.35 | 129.47 | -23.01 | 73.49 | 0.4061 | -978.0 | -646.6 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 7.55 | 129.20 | -23.28 | 73.17 | 0.4111 | -594.0 | -456.1 | |
| 6.92 | -20.00 | 3.79 | -20.00 | 10.15 | 128.93 | -23.55 | 67.45 | 0.4277 | -841.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 7.61 | 128.87 | -23.61 | 73.24 | 0.4163 | -672.0 | -594.7 | |
| 0.00 | 3.84 | 0.00 | 2.10 | 7.46 | 128.62 | -23.86 | 73.74 | 0.4196 | -621.0 | -605.5 | |
| 0.00 | 2.31 | 0.00 | 1.26 | 7.28 | 128.57 | -23.91 | 74.19 | 0.4197 | -773.0 | -642.5 | |
| 1.71 | 3.25 | 0.93 | 1.77 | 7.25 | 128.31 | -24.17 | 74.41 | 0.4235 | -757.1 | -532.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 9.79 | 128.07 | -24.41 | 68.90 | 0.4384 | -300.0 | -264.1 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 9.66 | 127.91 | -24.57 | 69.27 | 0.4401 | -738.0 | -442.6 | |
| 1.11 | 4.70 | 0.61 | 2.58 | 8.56 | 127.93 | -24.55 | 71.68 | 0.4347 | 908.7 | 799.5 | |
| 6.32 | 13.41 | 3.48 | 7.38 | 9.04 | 127.83 | -24.65 | 70.70 | 0.4383 | 965.3 | 725.4 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 9.06 | 127.10 | -25.38 | 71.11 | 0.4493 | 841.0 | 736.2 | |
| 0.00 | 1.79 | 0.00 | 1.00 | 9.33 | 126.75 | -25.73 | 70.77 | 0.4557 | 904.0 | 763.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 7.87 | 126.82 | -25.66 | 73.86 | 0.4484 | 228.0 | 182.3 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 9.99 | 126.63 | -25.85 | 69.47 | 0.4605 | 779.0 | 589.6 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 7.81 | 126.59 | -25.89 | 74.11 | 0.4516 | 413.0 | 433.3 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 10.19 | 126.31 | -26.17 | 69.26 | 0.4662 | 953.0 | 850.8 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 11.00 | 126.16 | -26.32 | 67.72 | 0.4723 | 788.0 | 624.3 | |
| 1.71 | 271.27 | 0.95 | 151.77 | 8.88 | 126.32 | -26.16 | 71.98 | 0.4601 | 1066.2 | 426.6 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 10.22 | 126.10 | -26.38 | 69.33 | 0.4692 | 890.0 | 683.6 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 11.21 | 125.67 | -26.81 | 67.64 | 0.4803 | 752.0 | 650.2 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 9.92 | 125.59 | -26.89 | 70.27 | 0.4752 | 877.0 | 760.6 | |
| 46.63 | -39.00 | 26.11 | -39.00 | 8.49 | 125.68 | -26.80 | 73.16 | 0.4679 | 1274.5 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.39 | 10.13 | 125.51 | -26.97 | 69.90 | 0.4774 | 898.0 | 675.8 | |
| 2.99 | 4.10 | 1.69 | 2.31 | 10.40 | 125.38 | -27.10 | 69.44 | 0.4805 | 880.7 | 650.7 | |
| 1.45 | -39.00 | 0.81 | -39.00 | 7.44 | 125.55 | -26.93 | 75.40 | 0.4660 | 514.1 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 9.86 | 125.33 | -27.15 | 70.55 | 0.4788 | 952.0 | 785.1 | |
| 0.00 | 4.27 | 0.00 | 2.41 | 10.19 | 125.20 | -27.28 | 69.98 | 0.4822 | 862.0 | 732.6 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 10.52 | 125.13 | -27.35 | 69.37 | 0.4846 | 705.0 | 625.8 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 8.14 | 123.26 | -29.22 | 75.01 | 0.5022 | 613.0 | 493.8 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 8.47 | 123.10 | -29.38 | 74.45 | 0.5057 | 834.0 | 622.1 | |
| 0.00 | 1.96 | 0.00 | 1.13 | 9.21 | 122.72 | -29.76 | 73.20 | 0.5138 | 829.0 | 656.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 9.21 | 122.14 | -30.34 | 73.48 | 0.5223 | 569.0 | 383.1 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 7.93 | 122.18 | -30.30 | 75.88 | 0.5174 | 565.0 | 509.1 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 6.85 | 120.91 | -31.57 | 78.35 | 0.5329 | 531.0 | 379.8 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 5.98 | 120.20 | -32.28 | 80.15 | 0.5413 | 631.0 | 465.3 | |
| 0.00 | 1.28 | 0.00 | 0.76 | 5.92 | 119.88 | -32.60 | 80.34 | 0.5457 | 648.0 | 552.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
